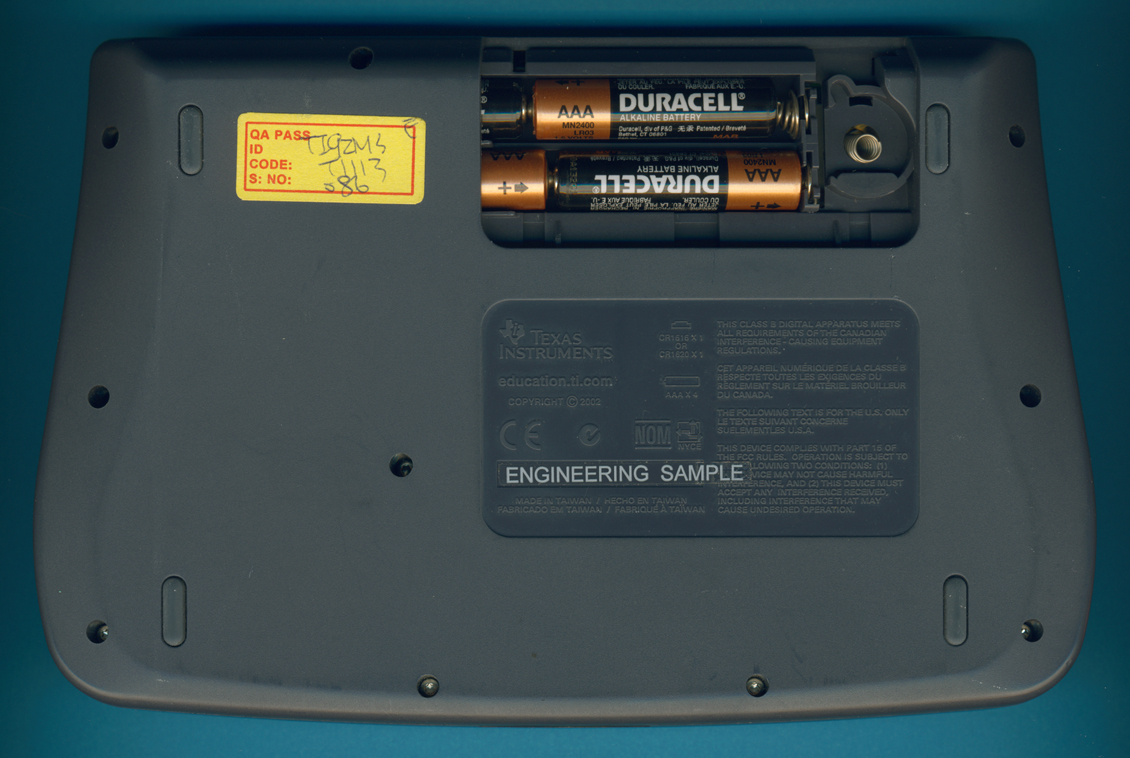

This Voyage 200 covers its Date code with a "Engineering Sample" sticker. It was manufactured by Inventec in Taiwan in June 2002.

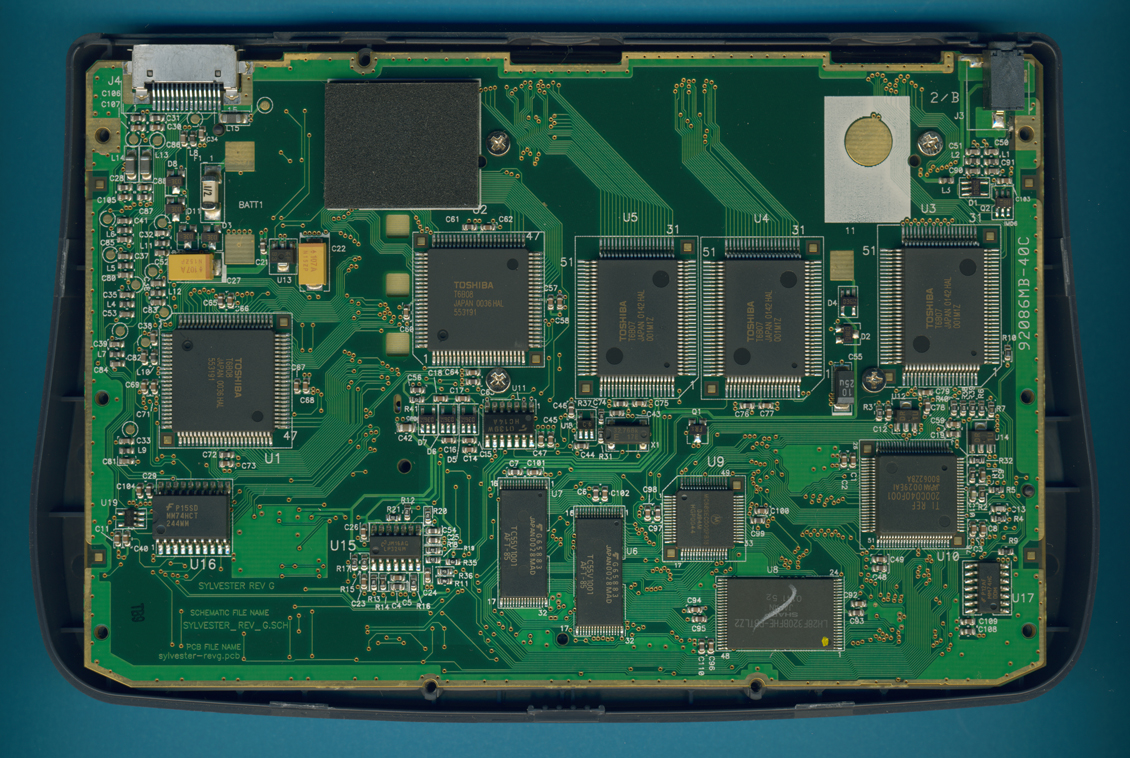

The printed circuit board (PCB) of the Voyage 200 Engineering Sample is centered around a powerful Motorola M68EC000 CPU with the
associated 200C040 ASIC, a 2M*8 Flash-ROM, two 128k*8 RAM and a total of 5 display drivers for the graphics screen.

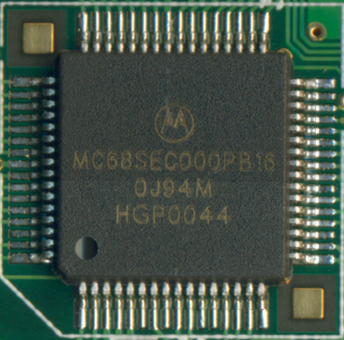

ZOOM-Image of the Motorola MC68SEC000 microprocessor (CPU).

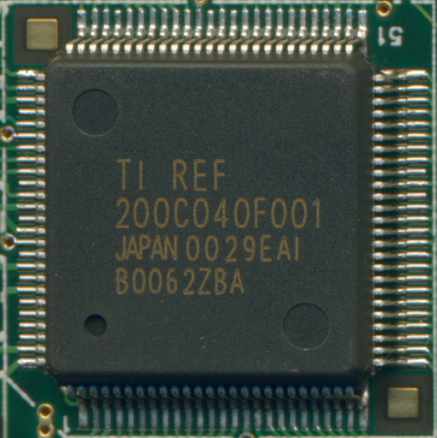

ZOOM-Image of the TI-REF 200C040 ASIC.

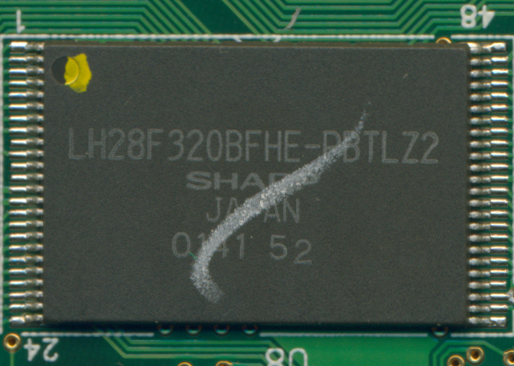

ZOOM-Image of the Sharp LH26F320 Flash-ROM.

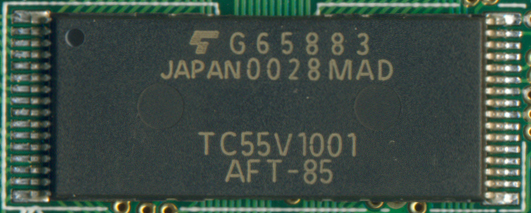

ZOOM-Image of one of the two Toshiba TC55V1001 RAM.

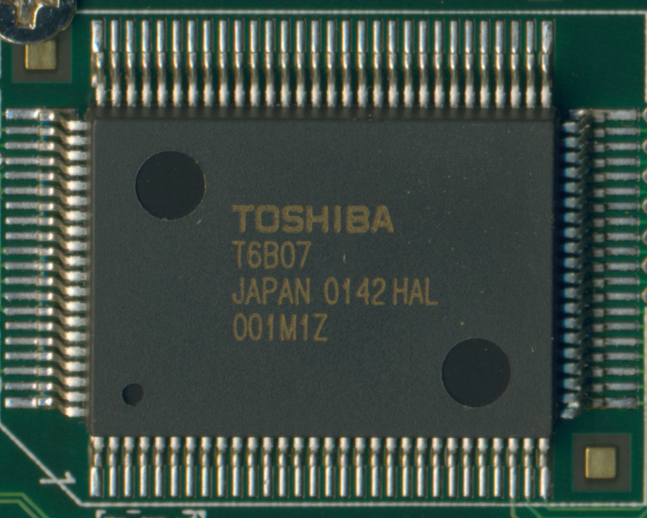

ZOOM-Image of one of the three Toshiba T6B07 column drivers.

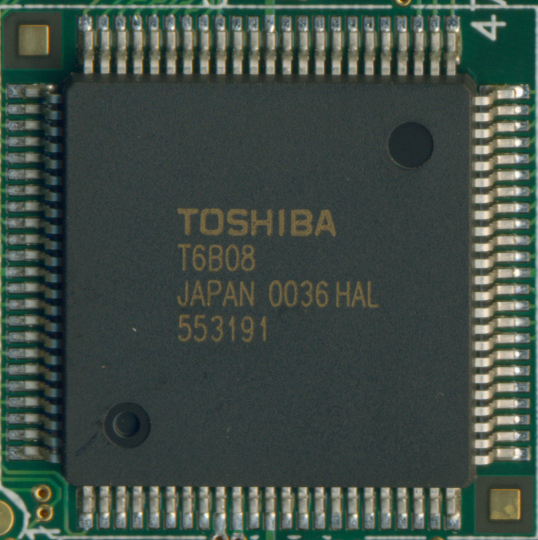

ZOOM-Image of one of the two Toshiba T6B08 row drivers.
