Additional Pictures

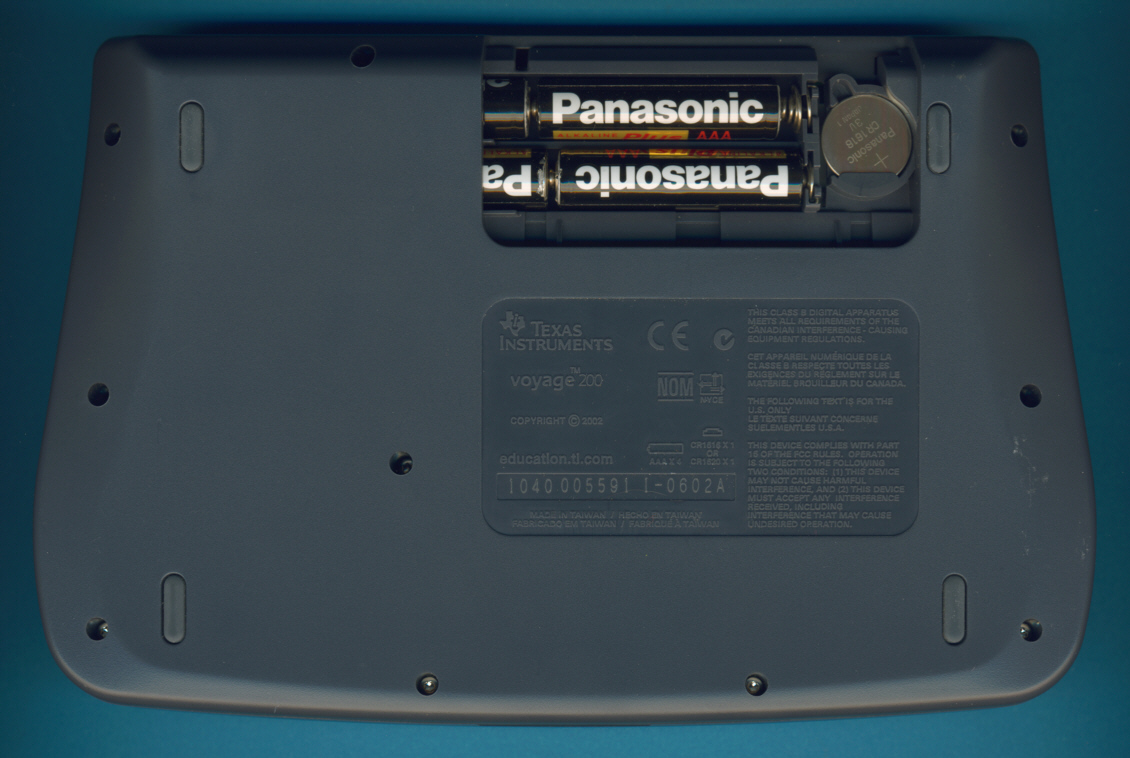

This Voyage 200 with the Date code I-0602A was manufactured by Inventec in Taiwan in June 2002 (Date code I-0602 » mth 06 yr 2002).

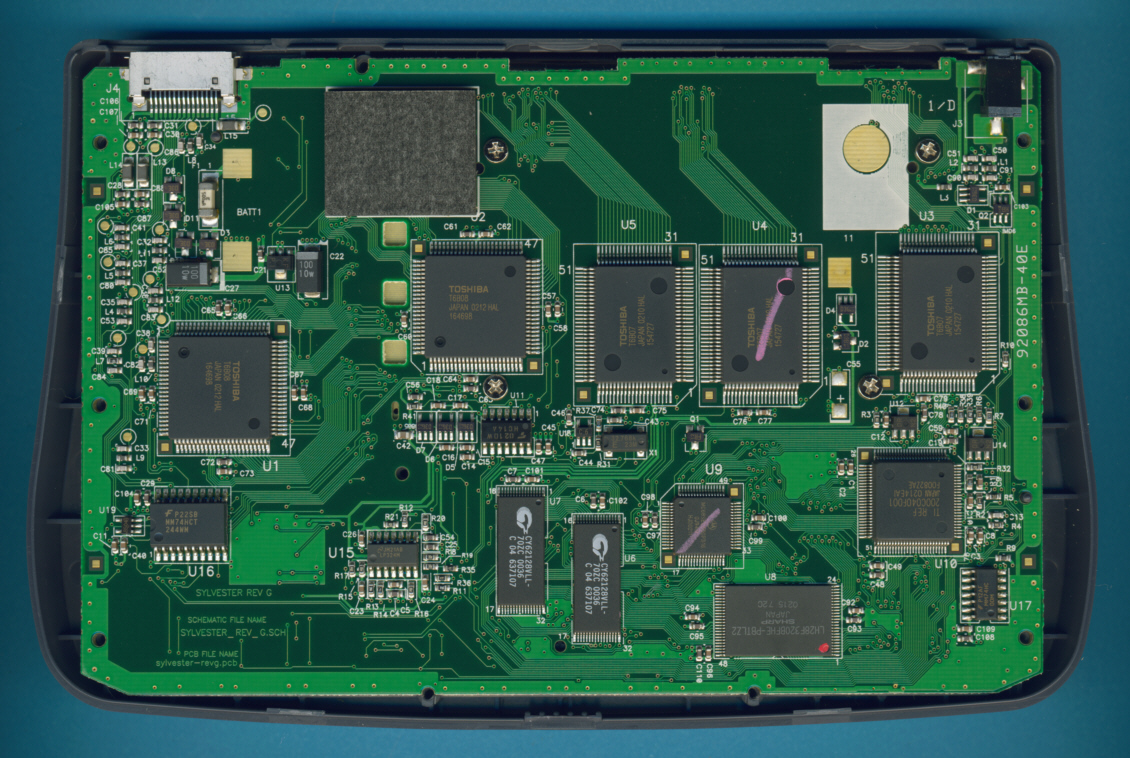

The printed circuit board (PCB) of the Voyage 200 is centered around a powerful Motorola M68EC000 CPU with the
associated 200C040 ASIC, a 2M*8 Flash-ROM, two 128k*8 RAM and a total of 5 display drivers for the graphics screen.

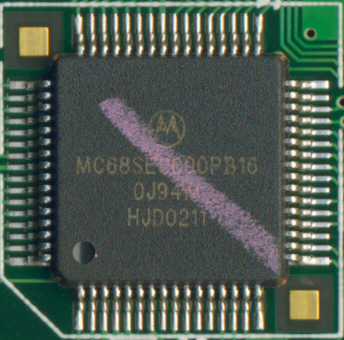

ZOOM-Image of the Motorola MC68SEC000 microprocessor (CPU).

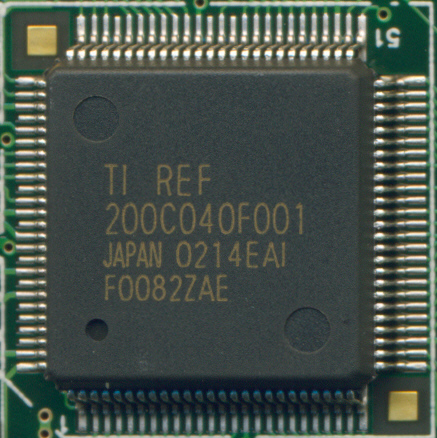

ZOOM-Image of the TI REF 200C040 ASIC.

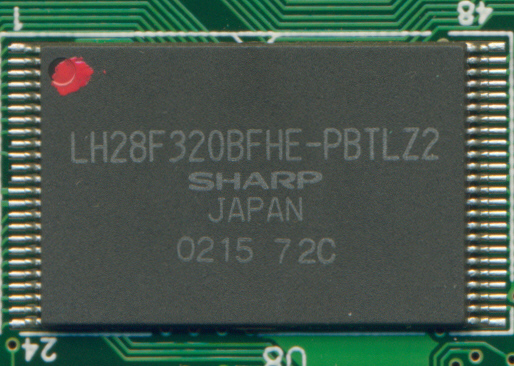

ZOOM-Image of the Sharp LH26F320 Flash-ROM.

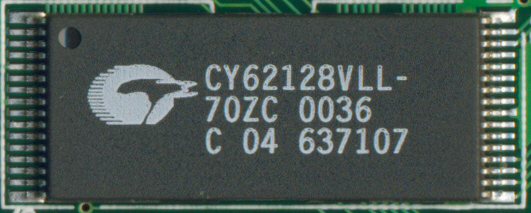

ZOOM-Image of one of the two Cypress CY62128 RAM.

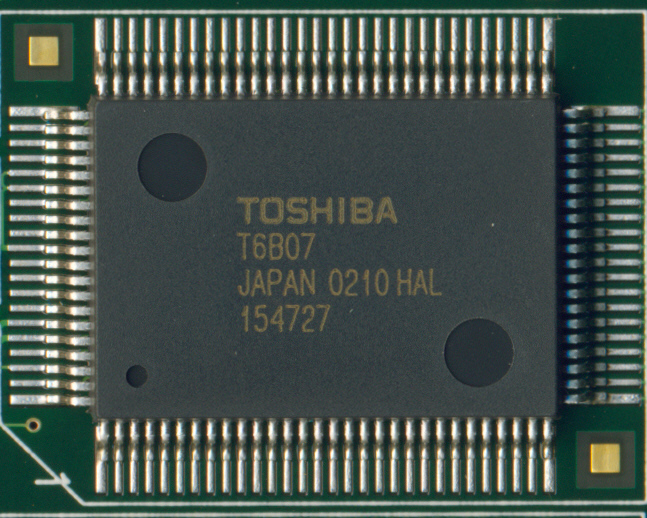

ZOOM-Image of one of the three Toshiba T6B07 column drivers.

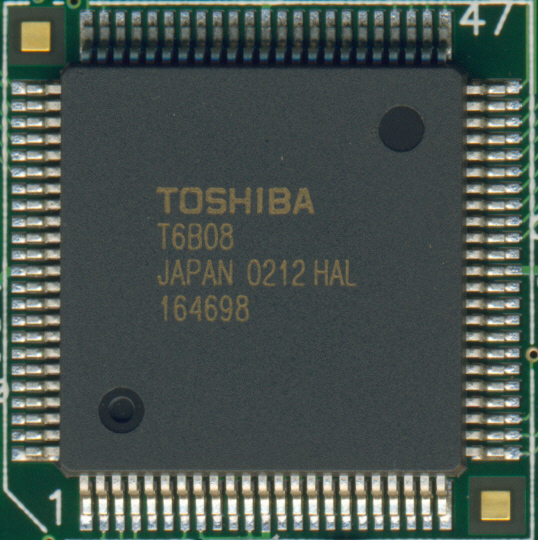

ZOOM-Image of one of the two Toshiba T6B08 row drivers.
