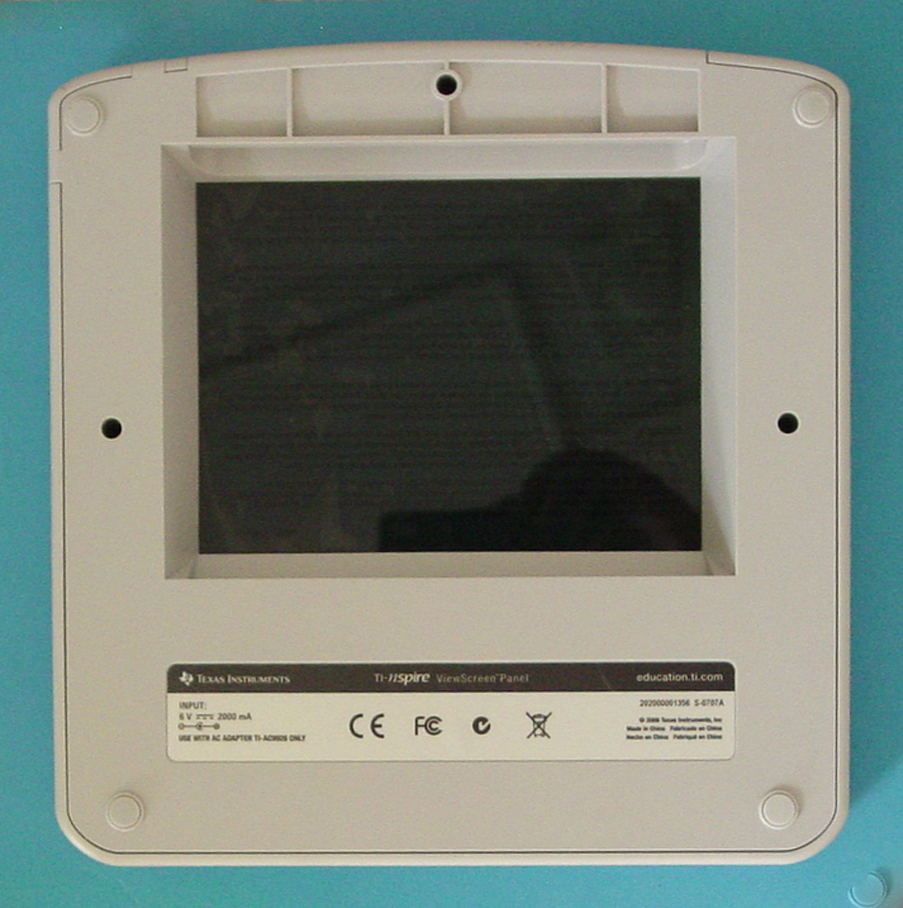

This
TI-Nspire ViewScreen Panel
was
manufactured in July 2007 by Inventec Corporation in China (Date code S-0707A » mth 07 yr 2007).  |
|
The TI-Nspire ViewScreen Panel units support the
TI-Nspire and TI-Nspire CAS Calculators. |
|

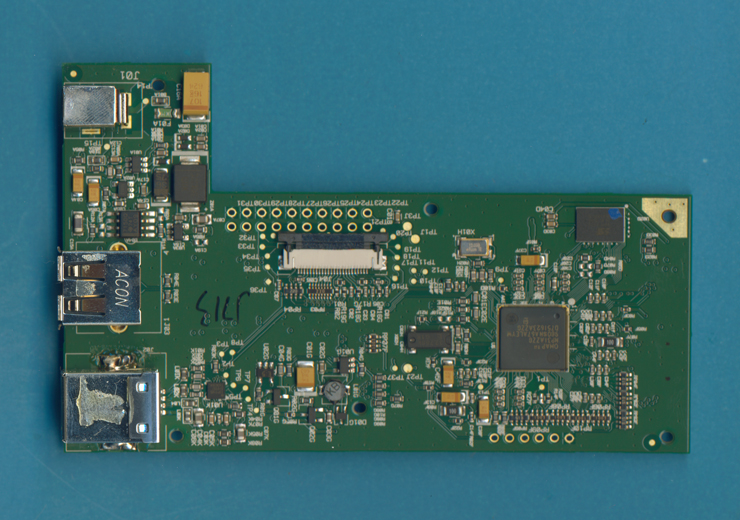

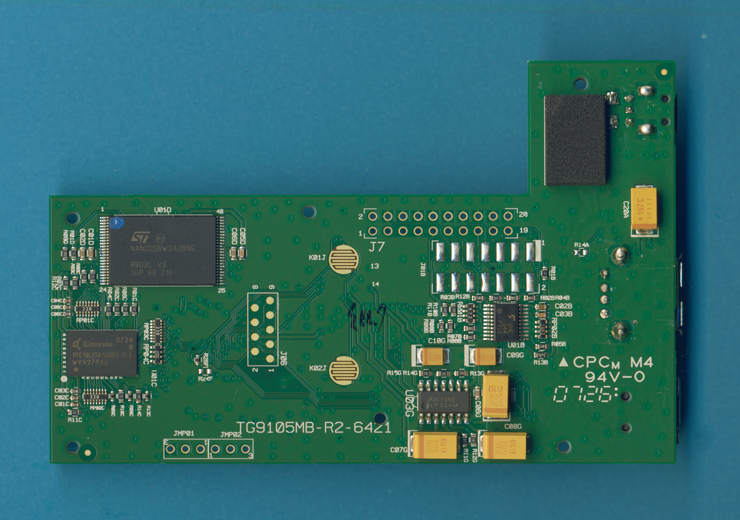

| The printed circuit board
(PCB) of this TI-Nspire ViewScreen Panel manufactured in
July 2007 is centered around TI-OMAP and a total of three different memory chips.
|
|
| The TI-Nspire ViewScreen
Panel uses three
different memory chips, a 256k*16 NOR Flash-ROM, 32M Bytes NAND Flash-ROM, and 16M*16 SDRAM. The clock frequency of the SoC is 12 MHz.  |
|

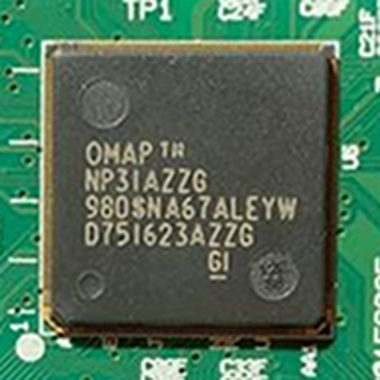

| The brain of the
TI-Nspire ViewScreen Panel is actually a System-on-Chip based on the OMAP architecture from Texas Instruments.  |
Close-up view of
the SST 39VF400A NOR Flash-ROM. |

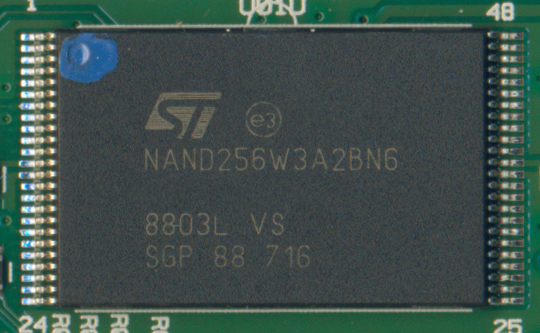

Close-up view of
the ST NAND256W3A NAND Flash-ROM. |

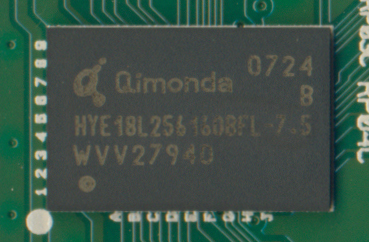

Close-up view of
the Infinion HYB18L256160 SDRAM. |

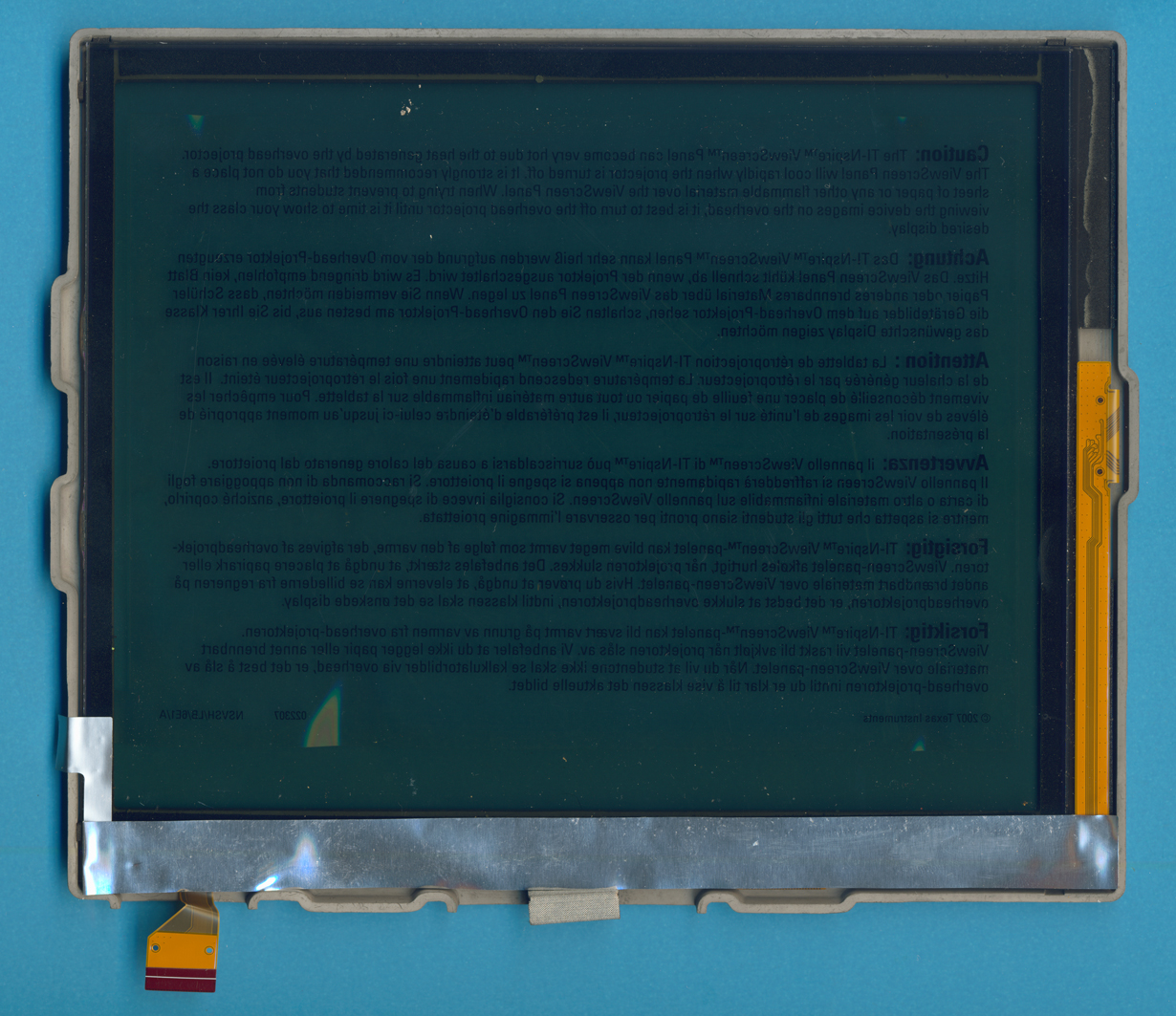

The
transmissive high-contrast display with a resolution of 240 * 320 pixels
of the
TI-Nspire ViewScreen Pane.  |
|
