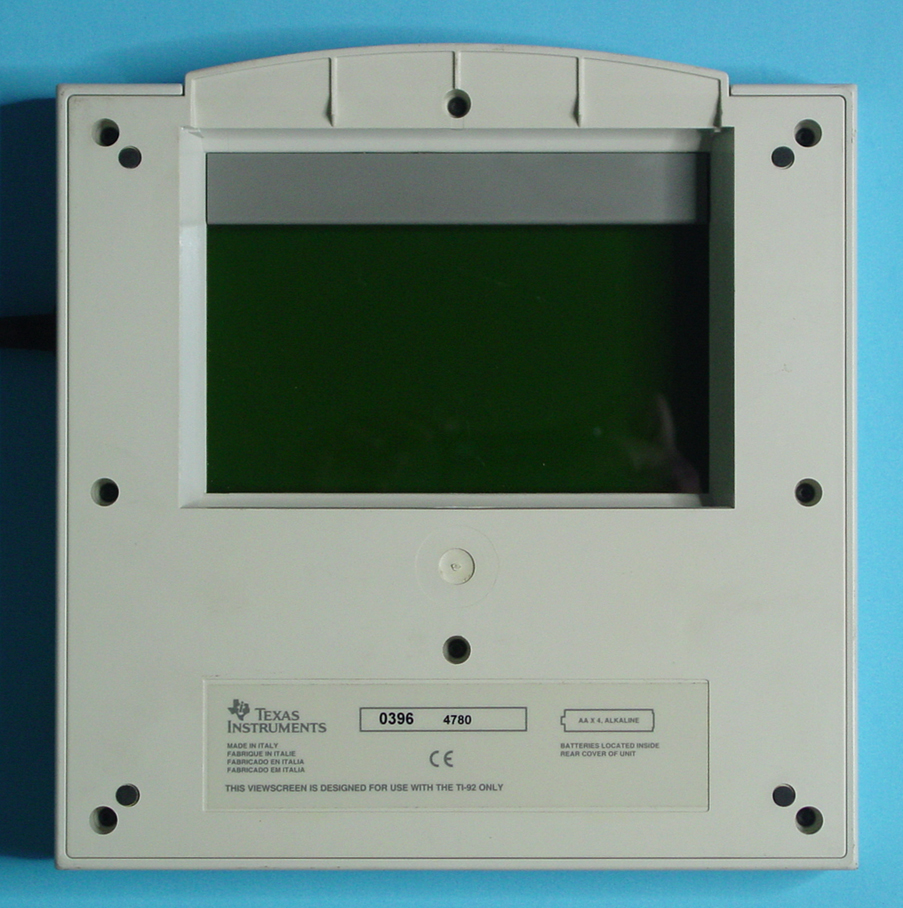

This
TI ViewScreen 92
was
manufactured in March 1996 by Texas Instruments in Rieti, Italy (Date code 0396 » mth 03 yr 1996). |
||
The TI ViewScreen 92 units manufactured between 1996
and 1997 support only the TI-92 ViewScreen Calculator. |
||

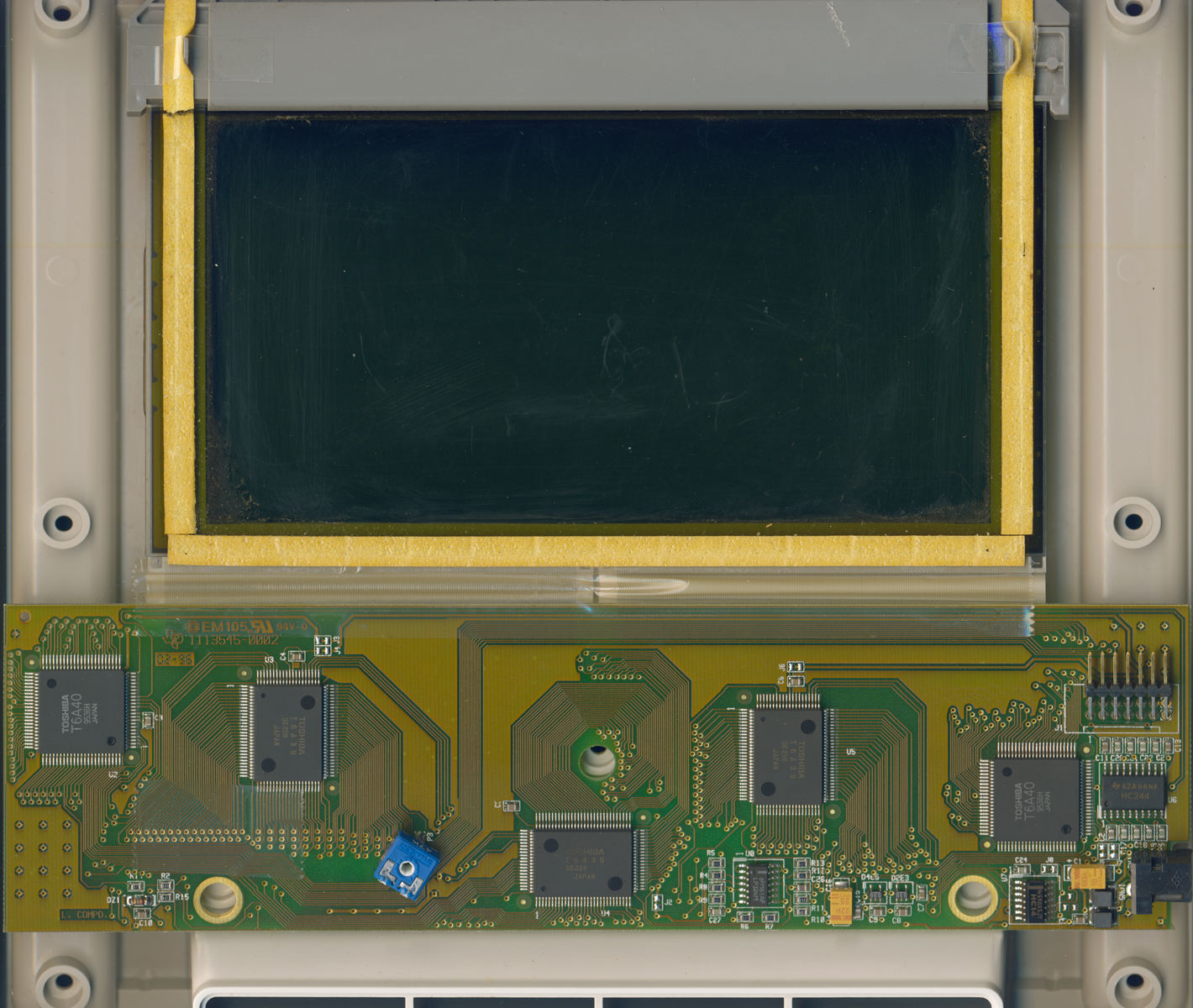

The printed
circuit board (PCB) of this TI ViewScreen 92 manufactured in
March 1996 is centered around a set of Toshiba T6A39 and T6A40 display drivers with some additional components and connected to a huge, transmissive LCD Screen. |
||

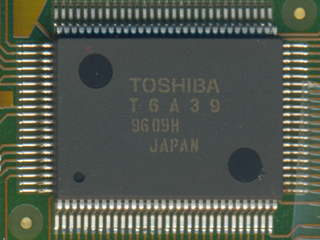

The first
Toshiba T6A39 column driver.
|

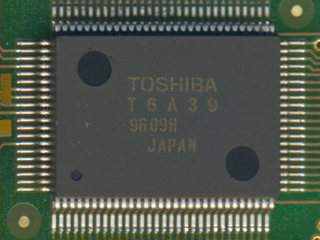

The second
Toshiba T6A39 column driver.
|

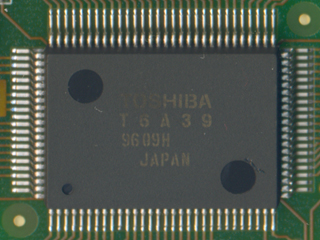

The third
Toshiba T6A39 column driver.
|

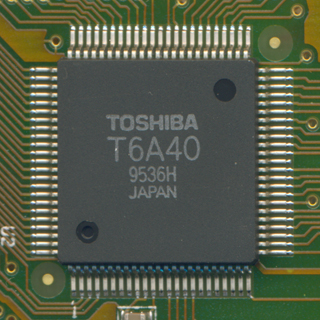

The
first
Toshiba T6A40 row driver. |
The
second
Toshiba T6A40 row driver. |
