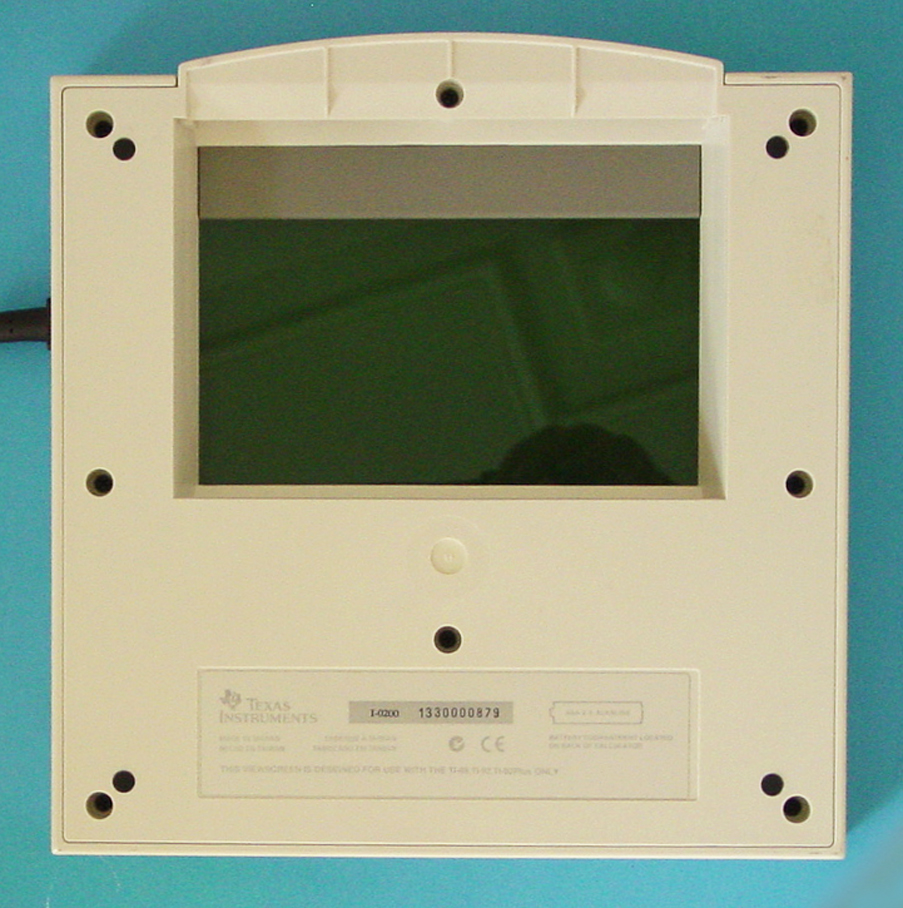

This
TI ViewScreen 92
was
manufactured in February 2000 by Inventec Corporation in Taiwan (Date code I-0200 » mth 02 yr 2000). |
||
The TI ViewScreen 92 units manufactured between 1999
and 2002 support the TI-89 VSC, TI-92, and TI-92 Plus Calculators. |
||
The printed
circuit board (PCB) of this TI ViewScreen 92 manufactured in
February 2000 is centered around a set of Toshiba T6A39A and T6A40 display drivers with some additional components and connected to a huge, transmissive LCD Screen. |
||

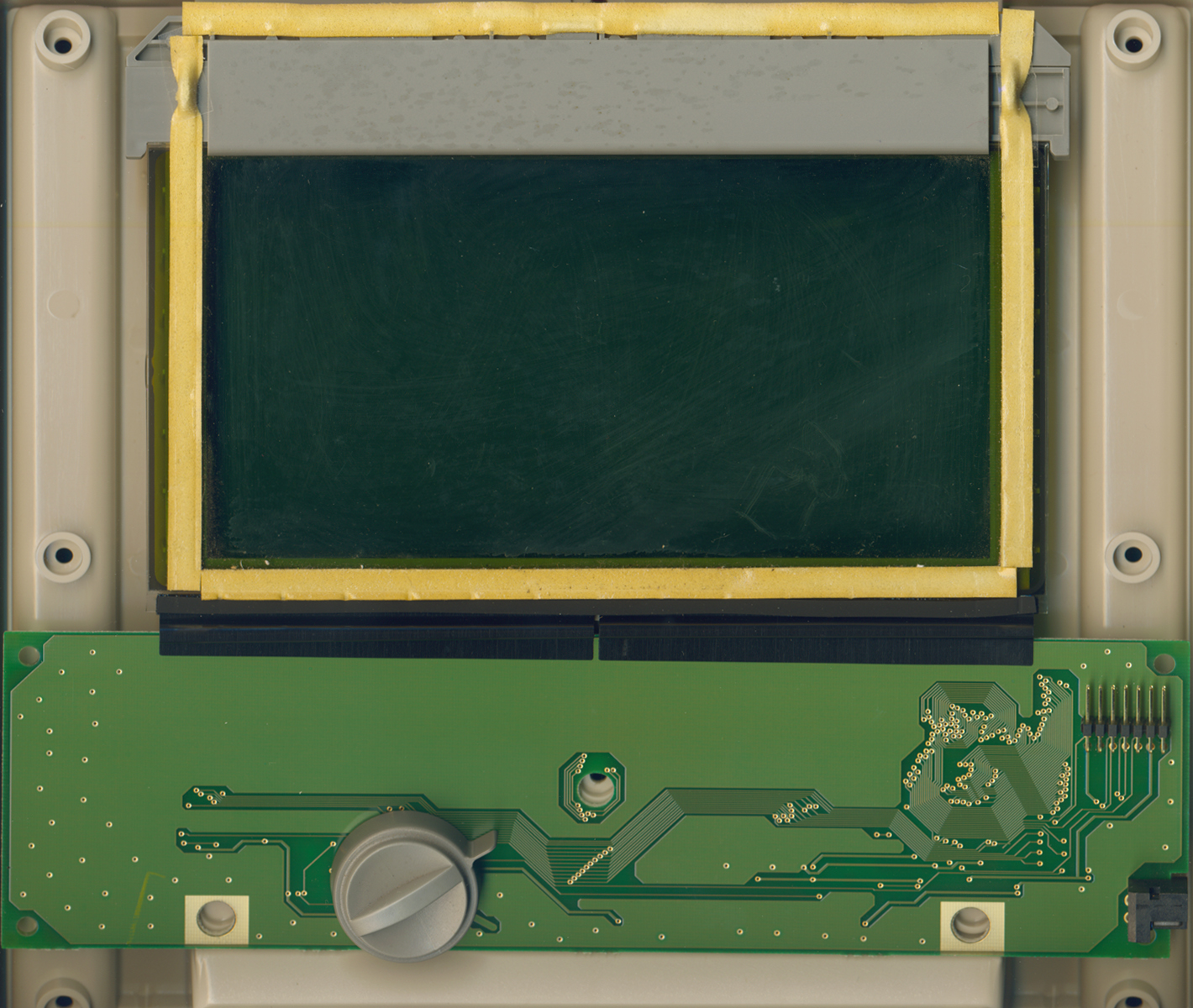

Component-side of the printed circuit board (PCB)
of this TI ViewScreen 92 manufactured in
February 2000. |
||

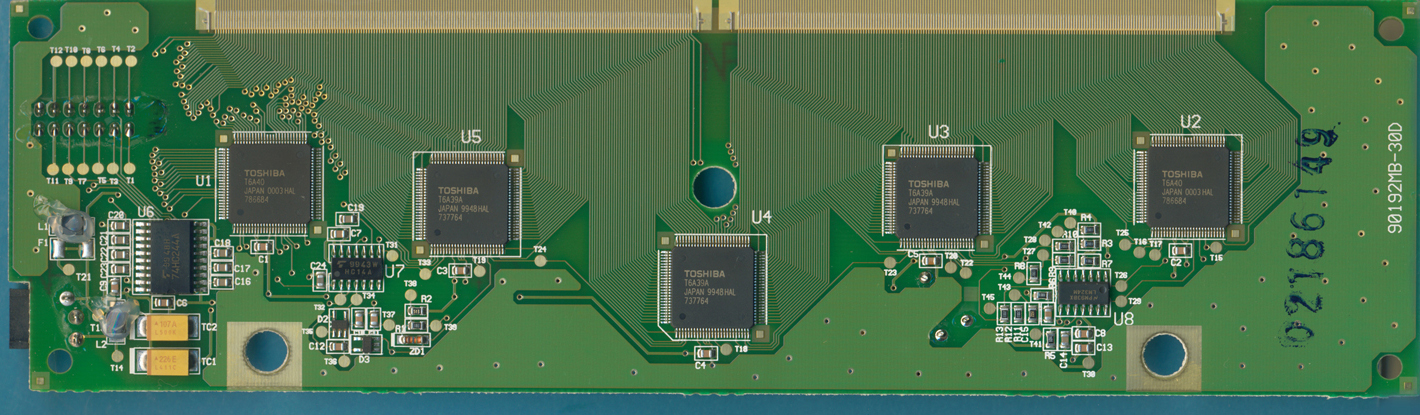

The first
Toshiba T6A39A column driver.
|
The second
Toshiba T6A39A column driver.
|
The third
Toshiba T6A39A column driver.
|
The
first
Toshiba T6A40 row driver. |
The
second
Toshiba T6A40 row driver. |
