Additional Pictures
|

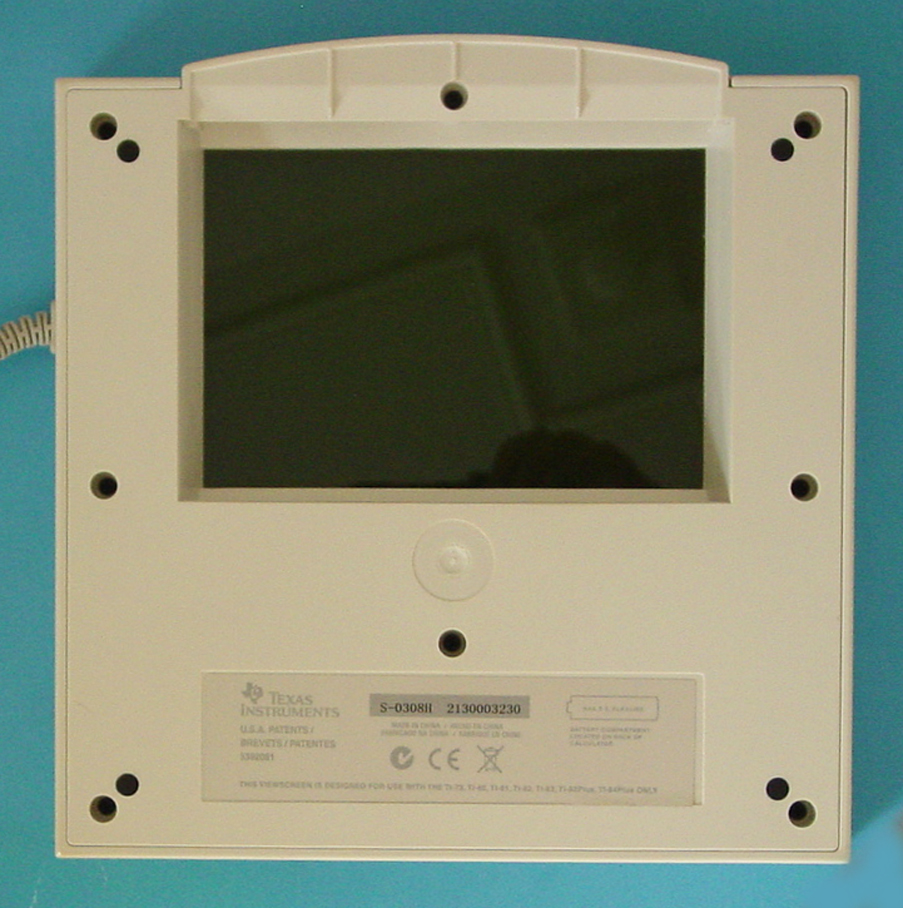

This
TI ViewScreen 82
was

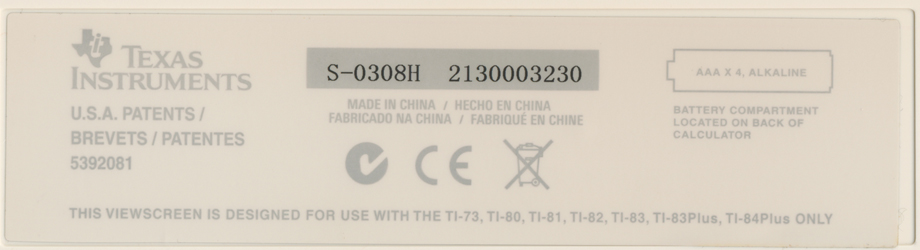

manufactured in March 2008 by Inventec Corporation in China (Date code S-0308H » mth 03 yr 2008).  |
|
The TI ViewScreen 82 units manufactured between 2004
and 2008 support the TI-73, TI-80, TI-81, TI-82, TI-83, TI-83 Plus, and TI-84 Plus ViewScreen Calculators.  |

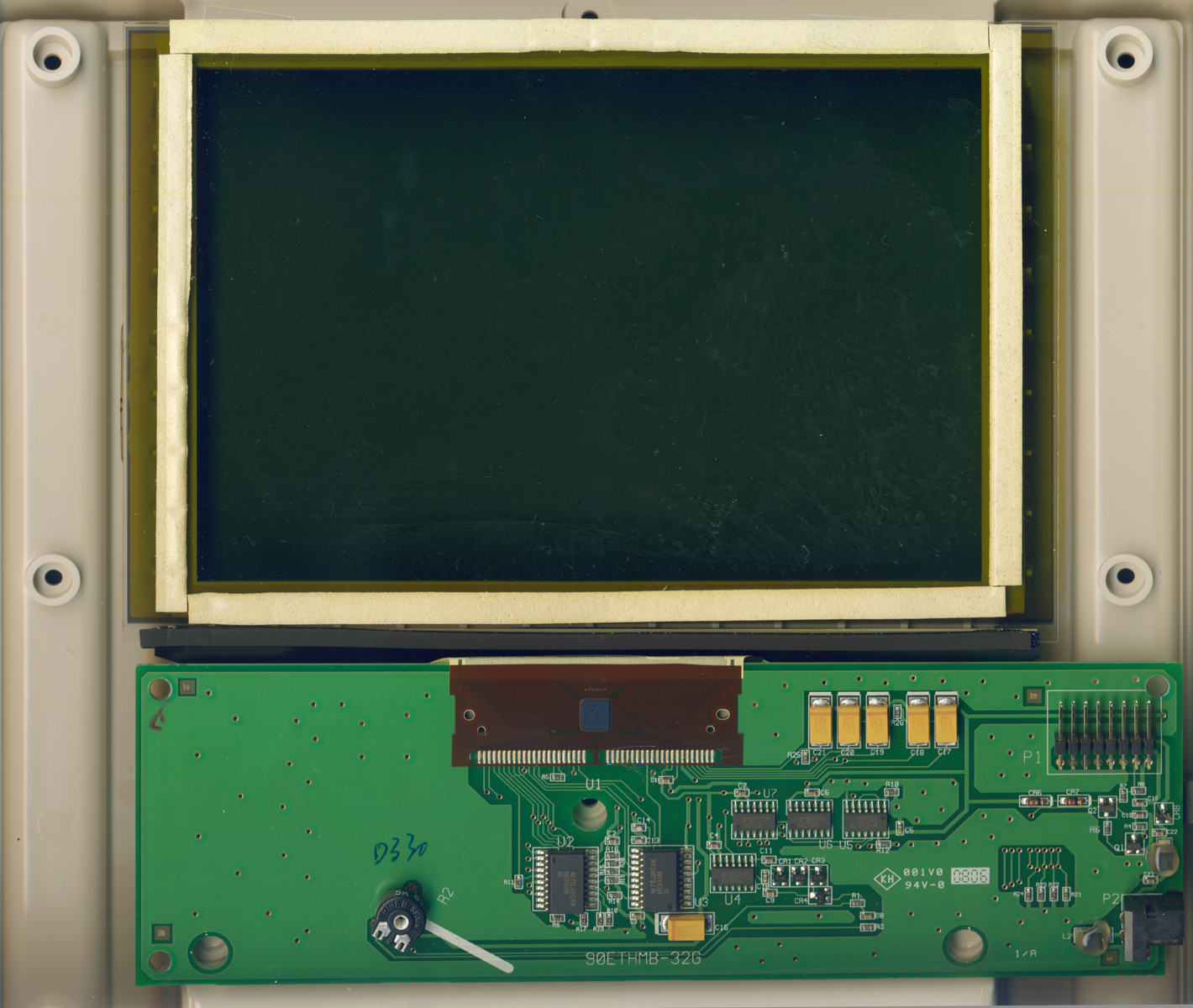

| The printed circuit board
(PCB) of this TI ViewScreen 82 manufactured in March
2008 is centered around a Toshiba T6A04A display driver with some additional components and connected to a huge, transmissive LCD Screen.
|

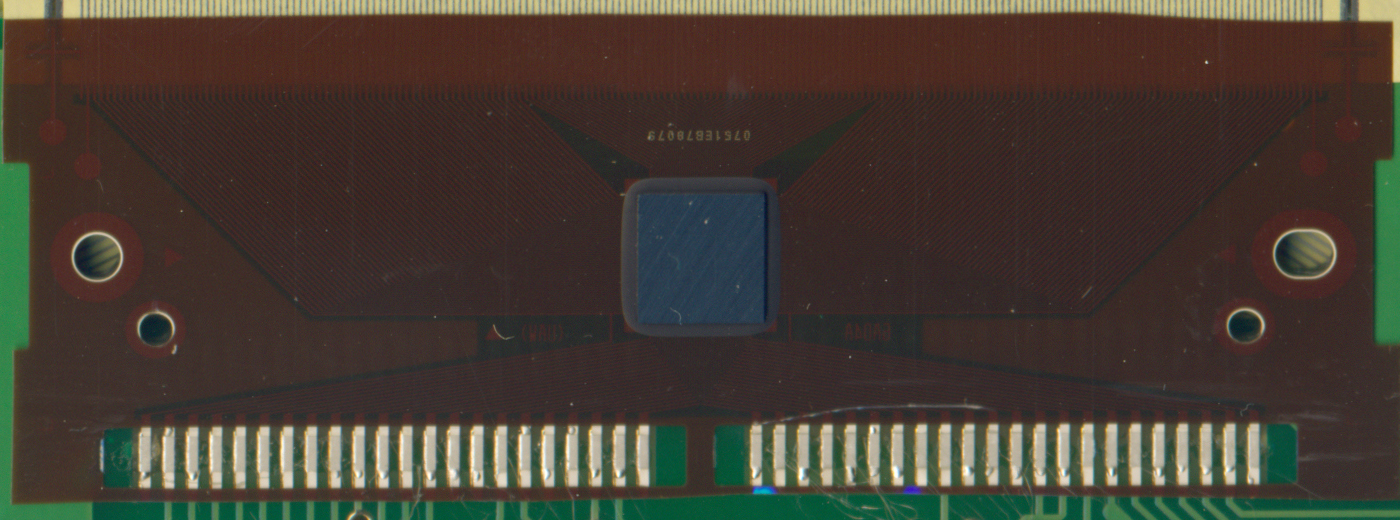

Close-up view of the
Toshiba T6A04A display driver. |
If you have additions to the above article please email: joerg@datamath.org.
© Joerg Woerner, August 8, 2020. No reprints without written permission.
