Additional Pictures
This
TI-Presenter
was
manufactured in July 2003 by Inventec Corporation in Taiwan (Date code I-0703B » mth 07 yr 2003). |
||

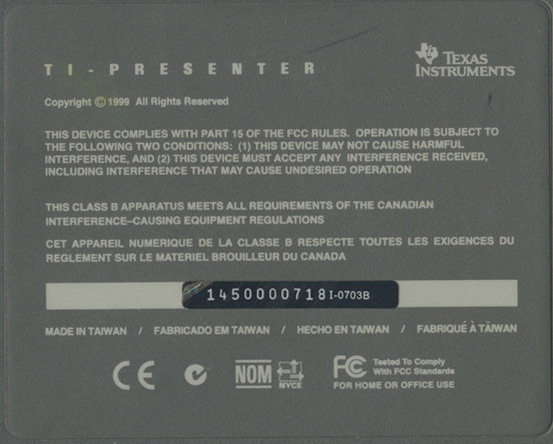

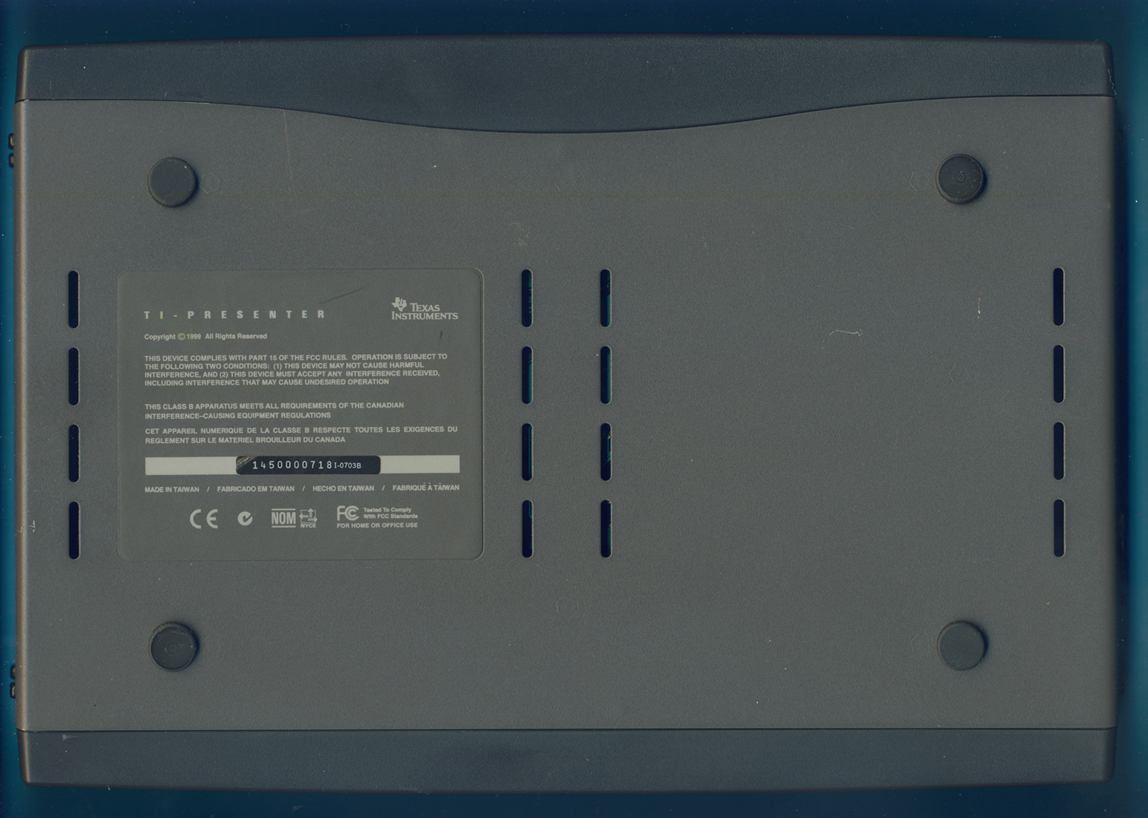

The Product Label of the TI-Presenter manufactured in
July 2003. |
||

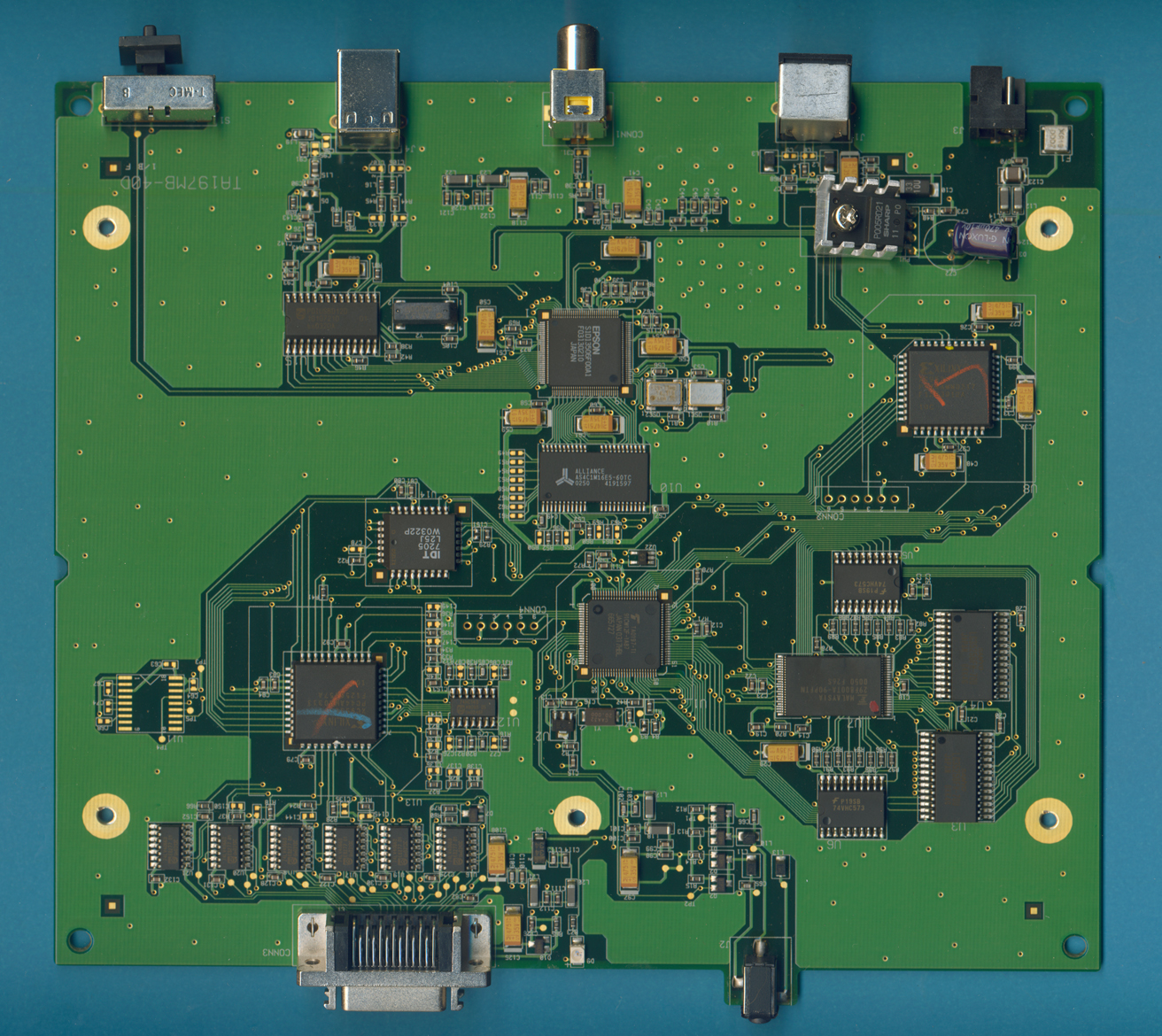

The printed circuit board
(PCB) of this TI-Presenter manufactured in July 2003 is
centered around a Toshiba TMP91CW12F 16-bit Microcontroller clocked with 20 MHz and surrounded by a slew of peripherals, memories and other components. |
||

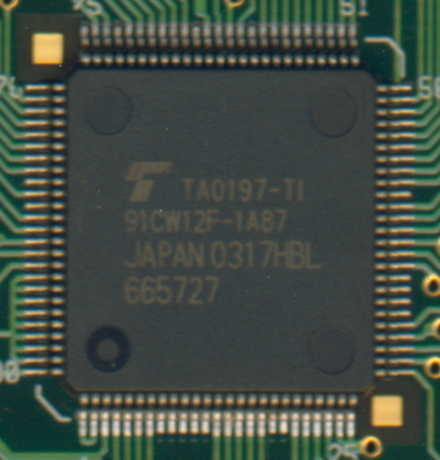

Close-up view of the
Toshiba TMP91CW12F Microcontroller. |

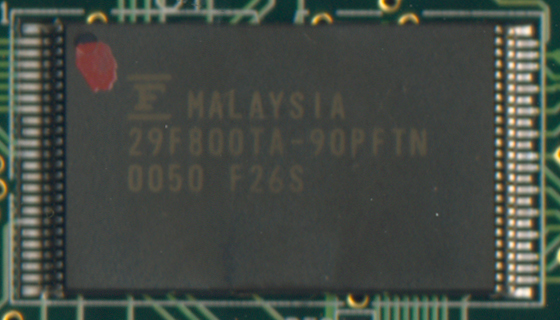

Close-up view of the
Fujitsu MBM29F800TA Flash ROM. |

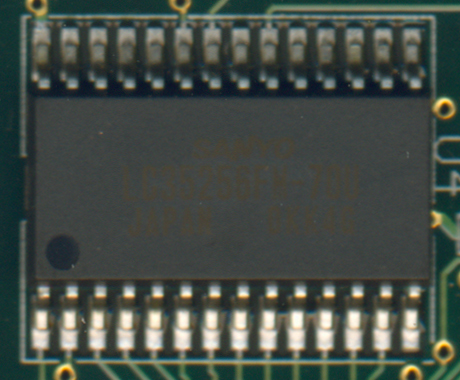

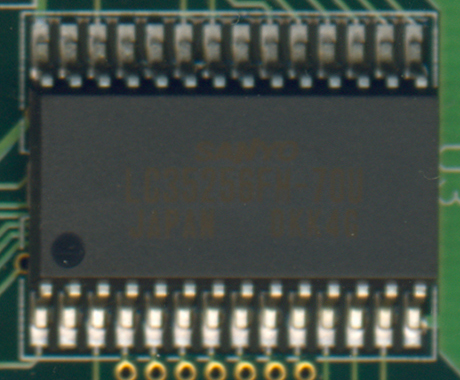

Close-up view of the two
Sanyo LC35256FM Static RAM. |

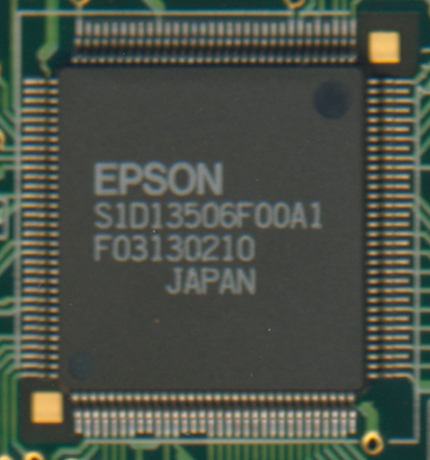

Close-up view of the
EPSON S1D13506 LCD/CRT/TV Graphics Controller. |

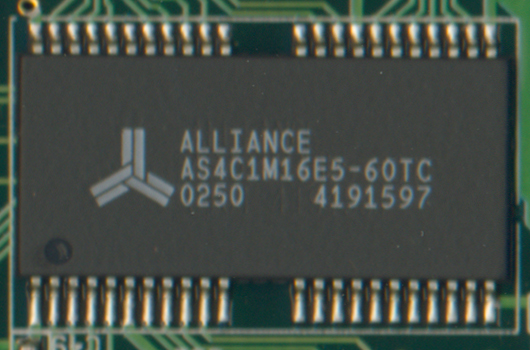

Close-up view of the
Alliance AS4C1M16E5 EDO DRAM. |

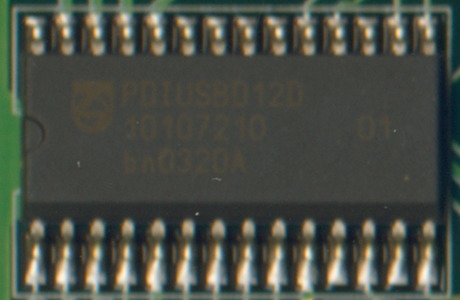

Close-up view of the
Philips PDIUSBD12D USB 2.0 Peripheral. |

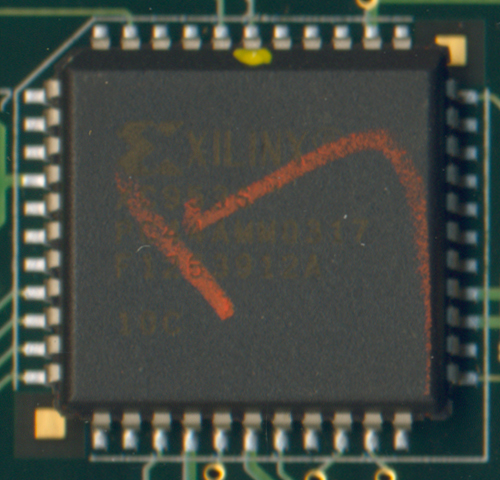

Close-up view of the
first Xilinx XC9536 In-System Programmable CPLD. |

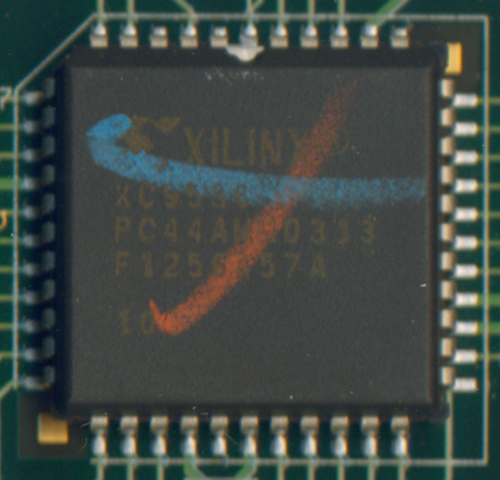

Close-up view of the
second Xilinx XC9536 In-System Programmable CPLD. |

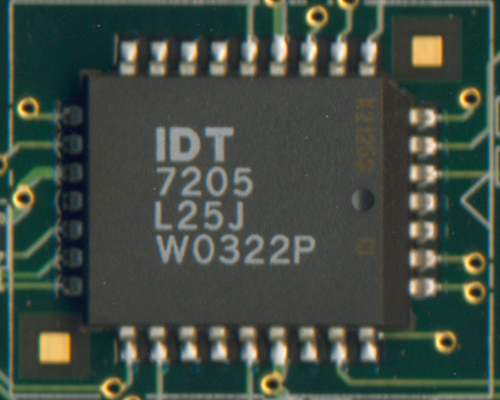

Close-up view of the
IDT 7205 dual-port FIFO. |
