Additional Pictures

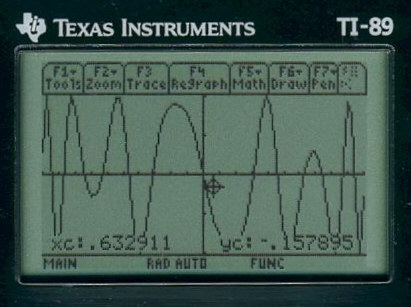

The screen of the TI-89 with a fine resolution of 160*100 pixels.

The TI-89 Titanium screen looks almost identical.

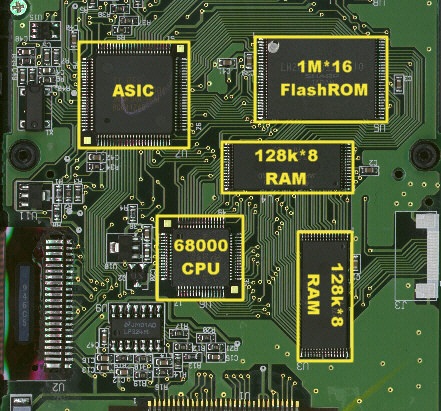

The first printed circuit board of the TI-89.
Hardware Version 1.

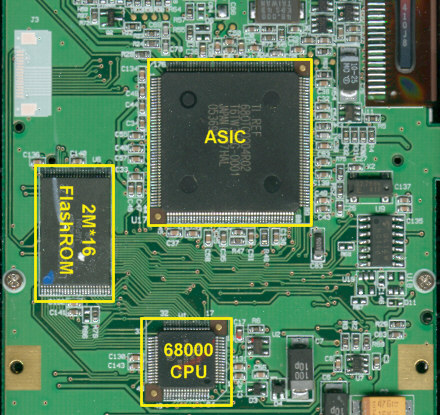

The TI-89 Titanium squeezes even the RAM into the ASIC.
Hardware: Version 3.

The second printed circuit board of the TI-89.
Hardware Version 2.

The TI-89 Titanium squeezes even the RAM into the ASIC.
Hardware: Version 4.

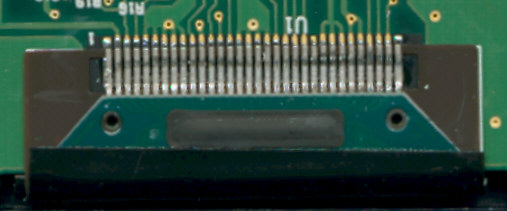

 The display drivers of the TI-89 are tiny chip-on-board designs.


The display drivers of the TI-89 Titanium seem to be identical.
