Additional Pictures

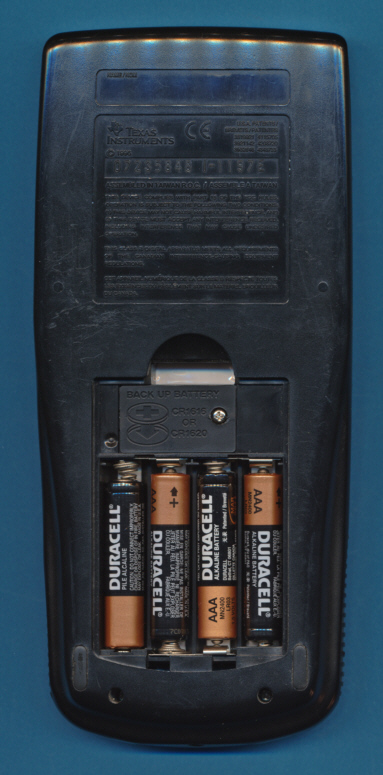

| This TI-86 was manufactured in November 1997 in Taiwan by Inventec.
|

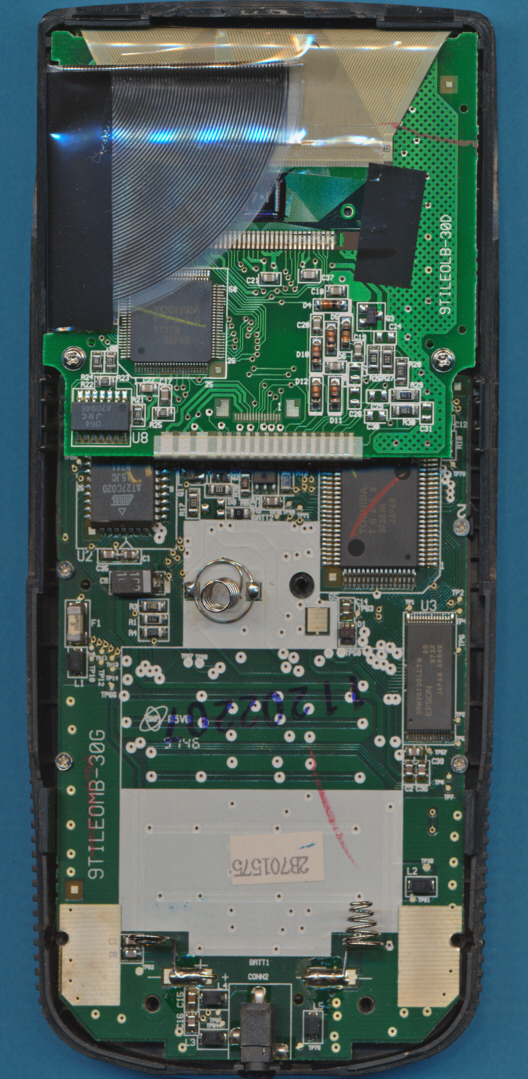

| The TI-86
makes use of two PCB's
(printed circuit boards), one each for the display and main electronics.
|

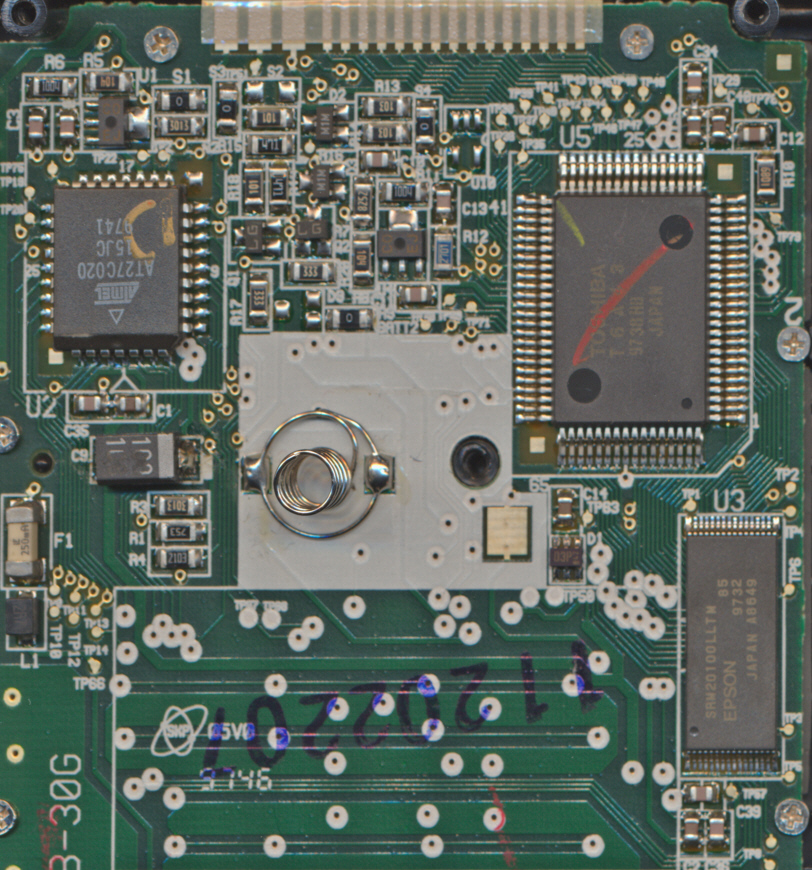

| The main
components of the TI-86: Toshiba T6A43 Application Specific CPU, Atmel AT27C020 OTP-ROM and Epson SRM20100 RAM.
|

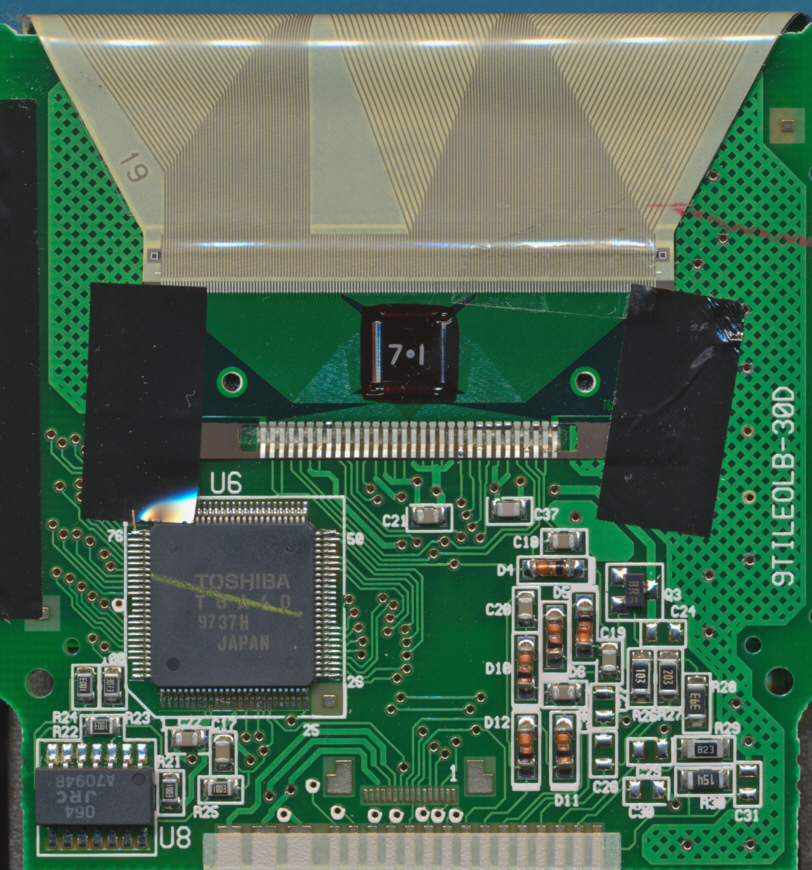

| The Toshiba
T6A23 column display driver
of the TI-86 in a small COB housing supported by a Toshiba T6A40 row display driver.
|
If you have additions to the above article please email: joerg@datamath.org.
