Additional Pictures

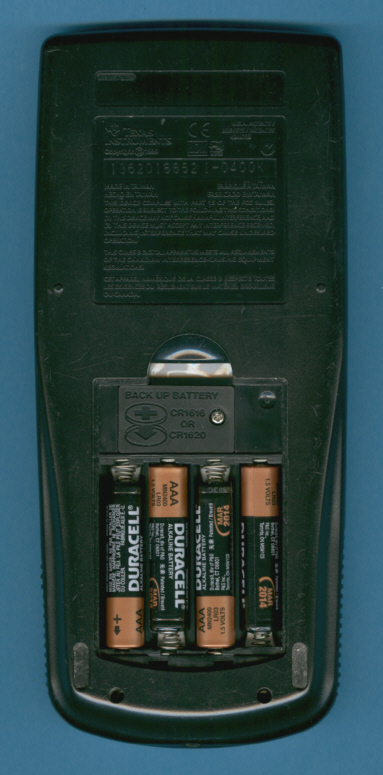

| This TI-86 was manufactured in April 2000 in Taiwan by Inventec.
|
| The TI-86
makes use of two PCB's
(printed circuit boards), one each for the display and main electronics.
|

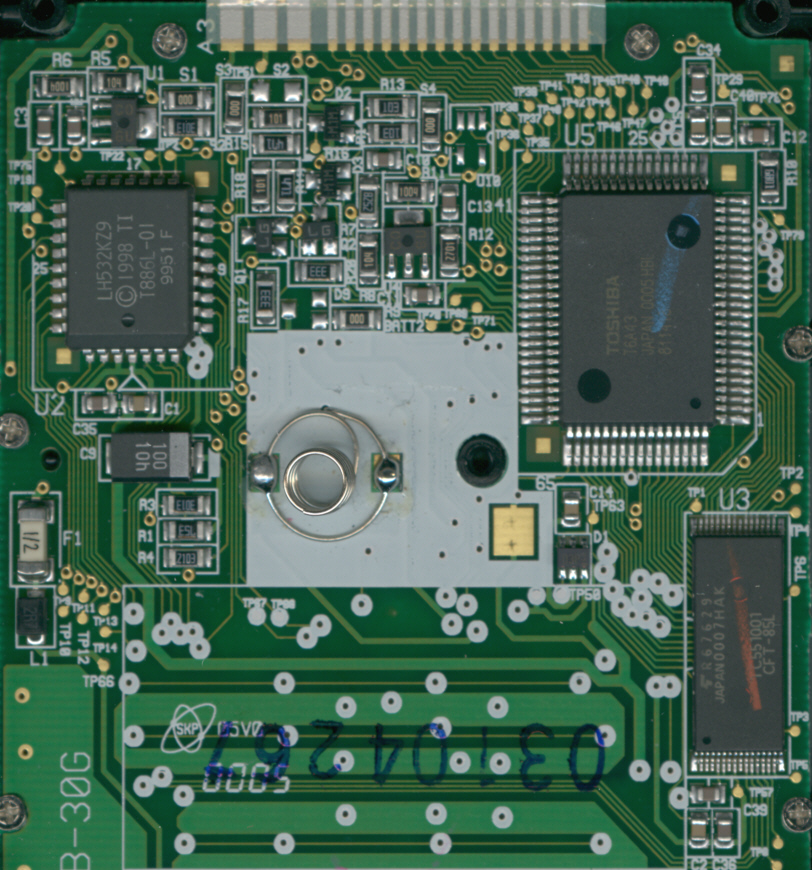

| The main
components of the TI-86: Toshiba T6A43 Application Specific CPU, Sharp LH532 ©1998 ROM and Toshiba TC551001 RAM.
|

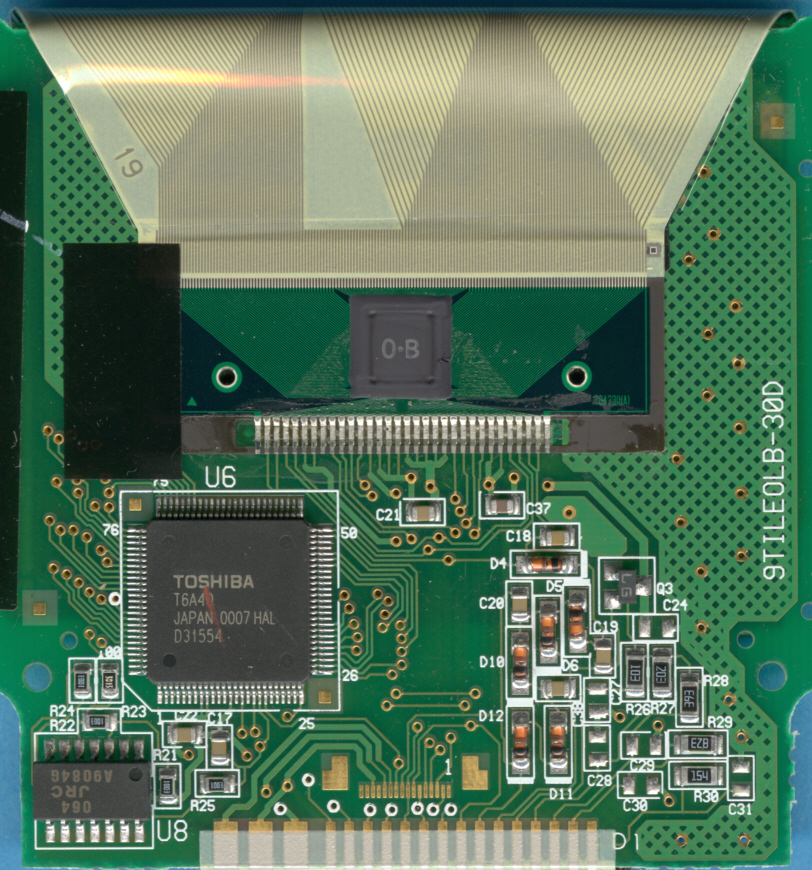

| The Toshiba
T6A23 column display driver
of the TI-86 in a small COB housing supported by a Toshiba T6A40 row display driver.
|
If you have additions to the above article please email: joerg@datamath.org.
© Joerg Woerner, February 8, 2008. No reprints without written permission.
