Additional Pictures

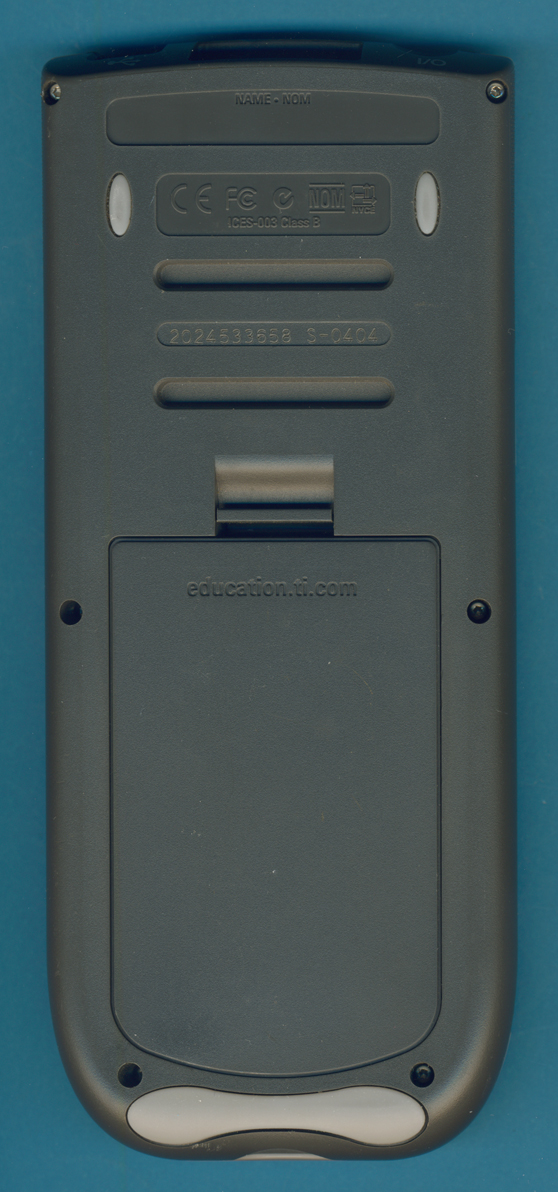

| This TI-84 Plus S.E. VSC
calculator was manufactured in April 2004 by Inventec Corporation in China (Date code S-0404 » mth 04 yr 2004). It uses a slightly redesigned bottom shell of the housing to accommodate the ViewScreen connector.
|

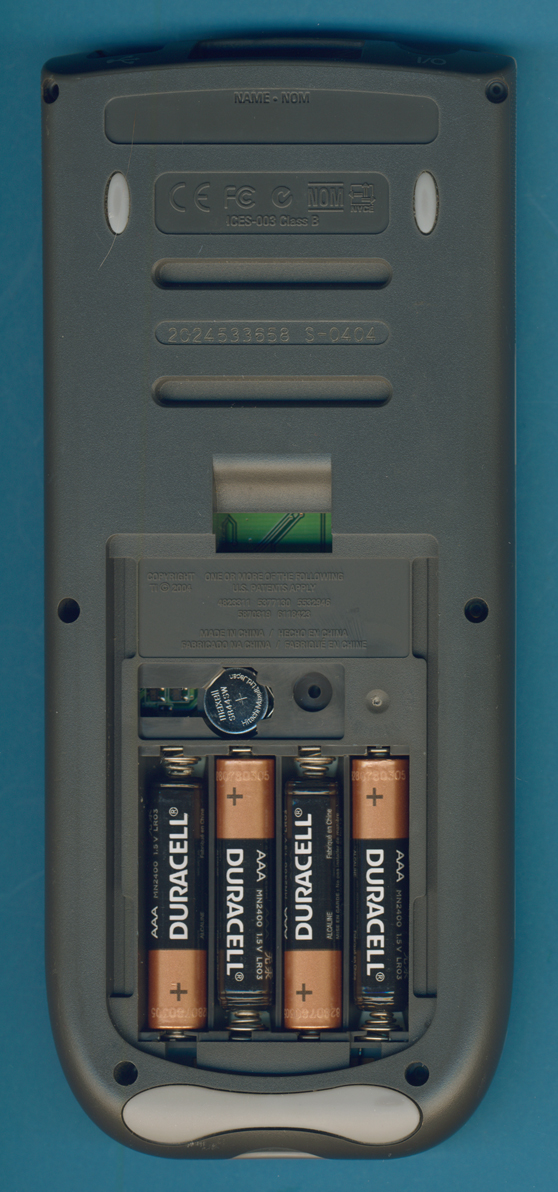

The TI-84 Plus S.E. VSC
calculator is powered by 4 AAA batteries and a SR44 backup
battery. |

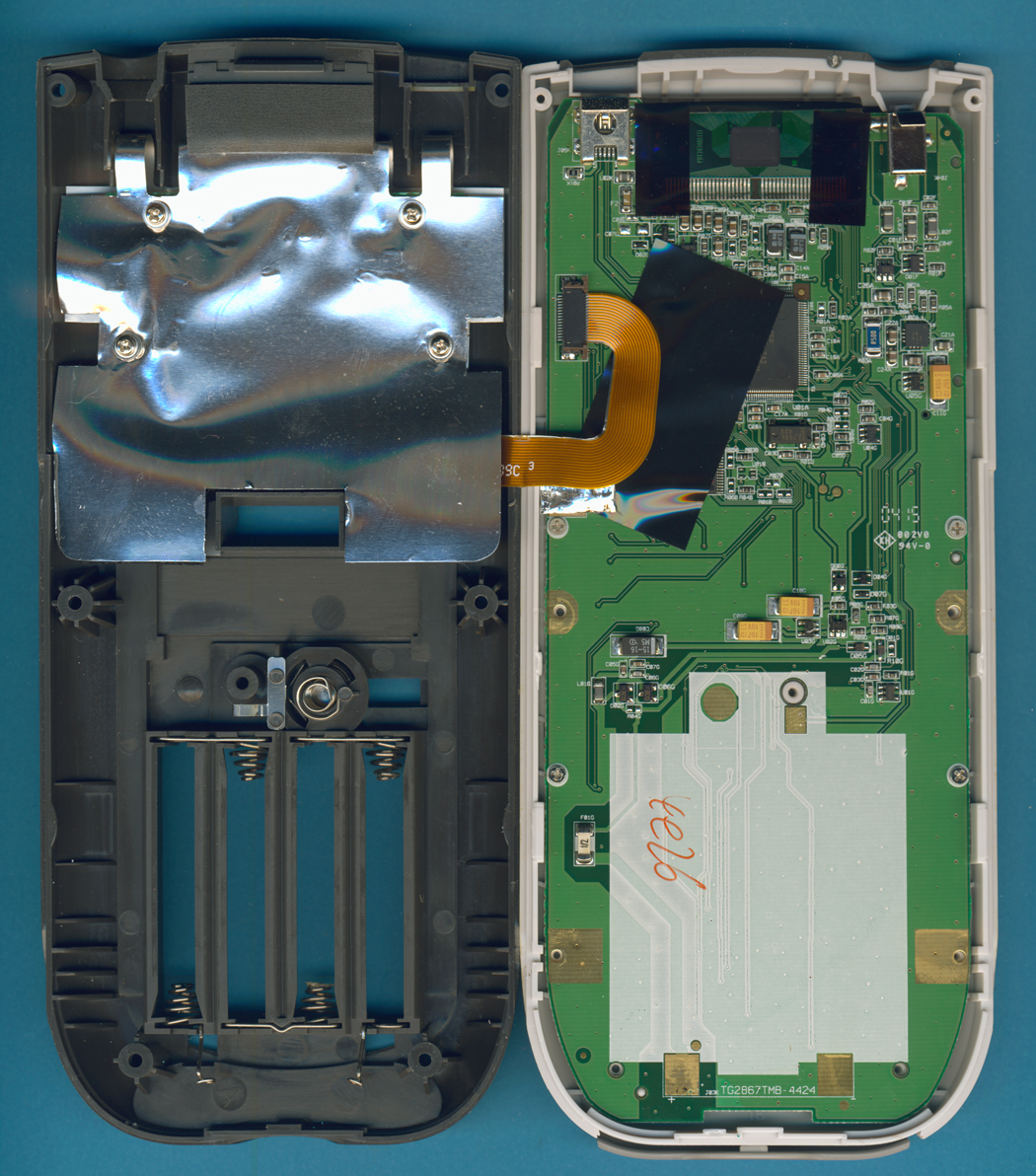

| A small, carefully
shielded PCB (printed circuit board) hosts some drivers between the ViewScreen connector and the flexible cable reaching to the Main PCB.
|

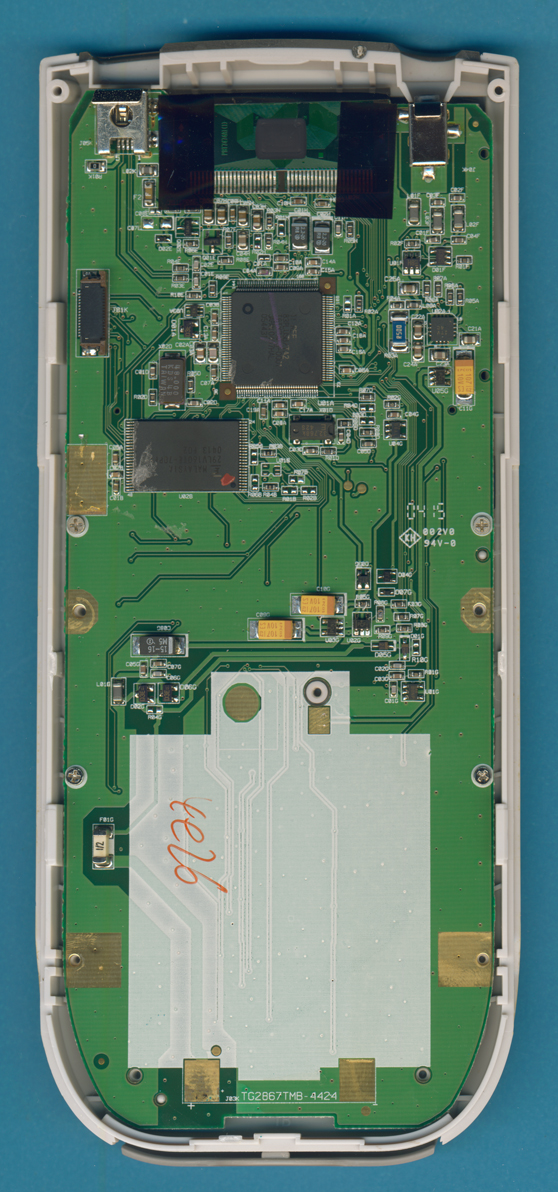

| The main PCB of the TI-84 Plus S.E.
VSC is identical with the TI-84 Plus S.E. but we notice the additional connector for the ViewScreen.
|

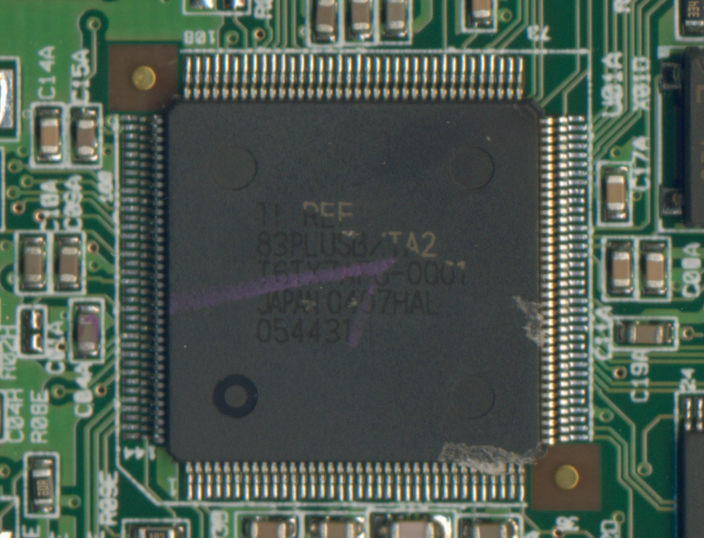

| The TI-84 Plus Silver
Edition manufactured in April 2004 with the "T83PLUSB/TA2"
ASIC.
|

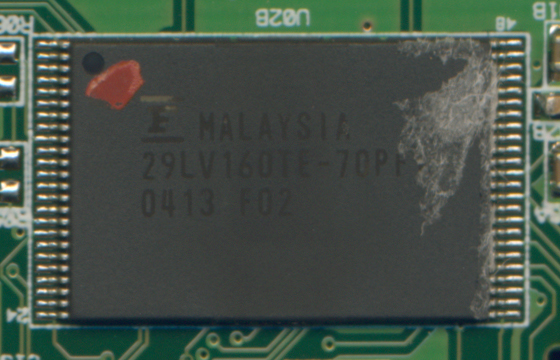

| The Flash ROM Fujitsu
29LV160 holds up to 2M Byte Program and Data.
|

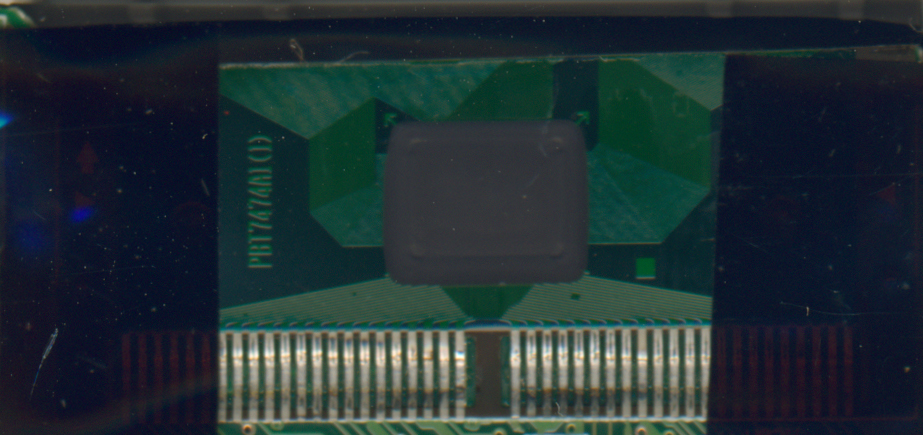

| The display
driver Toshiba T6K04 of the TI-84 Plus S.E. VSC manufactured April 2004.
|

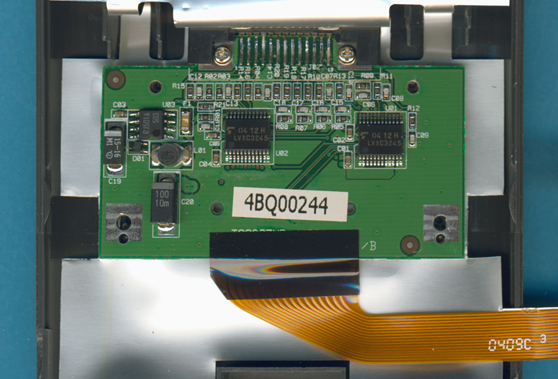

The additional PCB with
two additional driver circuits and a connector for the
external ViewScreen.  |
