Additional Pictures

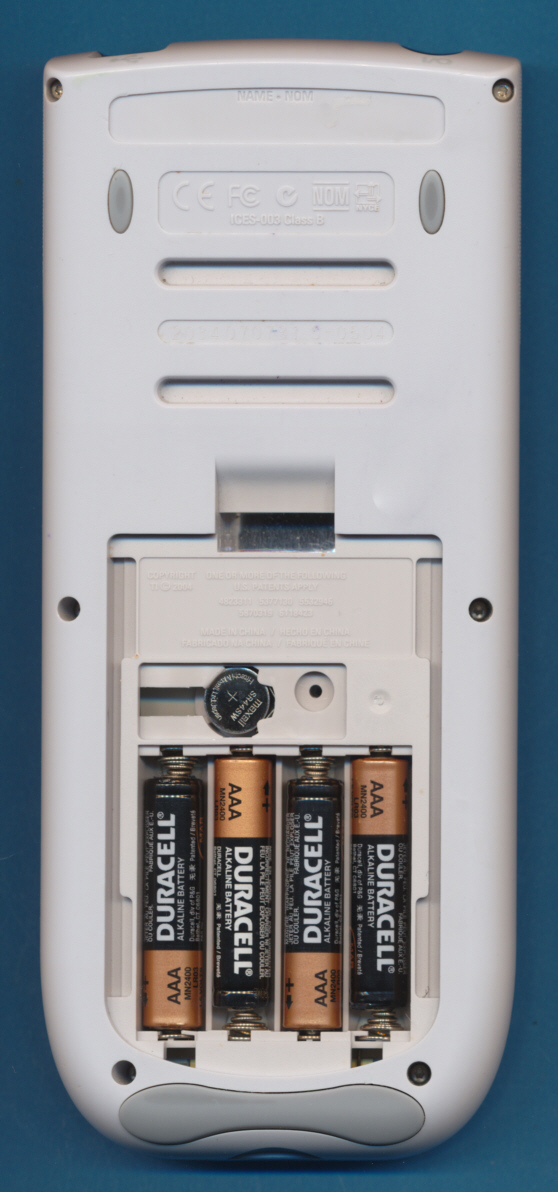

This early TI-84 Plus
Silver Edition with the date
code S-0504 was manufactured by Inventec Corporation in China in May 2004. |

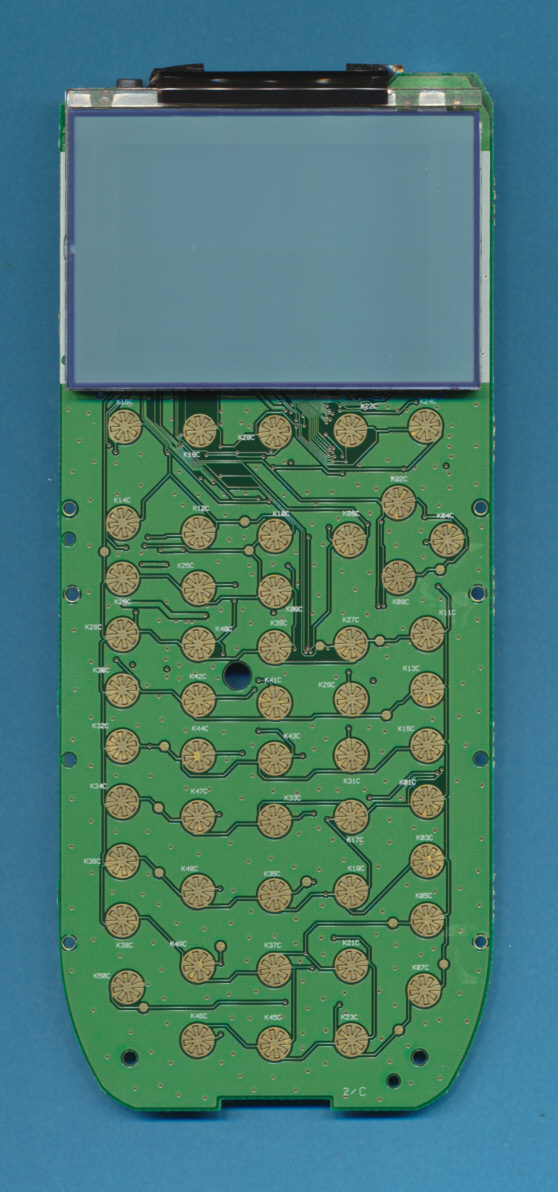

The printed circuit board
(PCB) of the TI-84 Plus S.E. manufactured in 2004. Both the Z-80 microprocessor and the RAM are integrated into an ASIC.
|

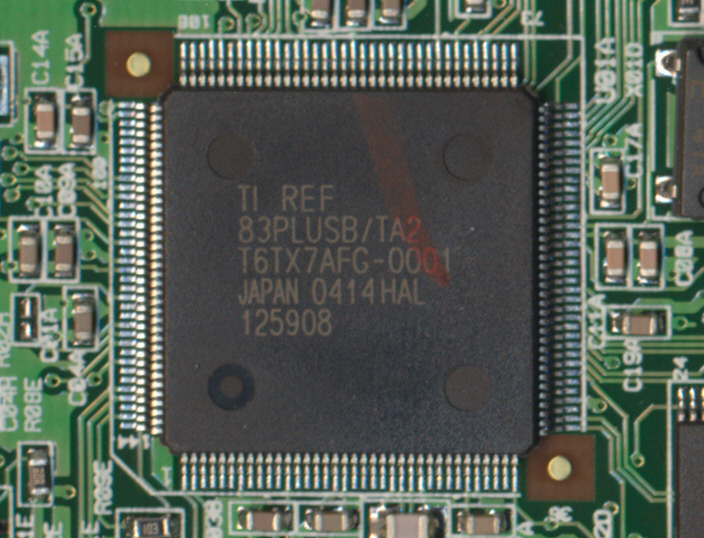

The TI-84 Plus Silver Edition manufactured in May 2004 with the tiny "TI-REF 83PLUSB/TA2" ASIC. |

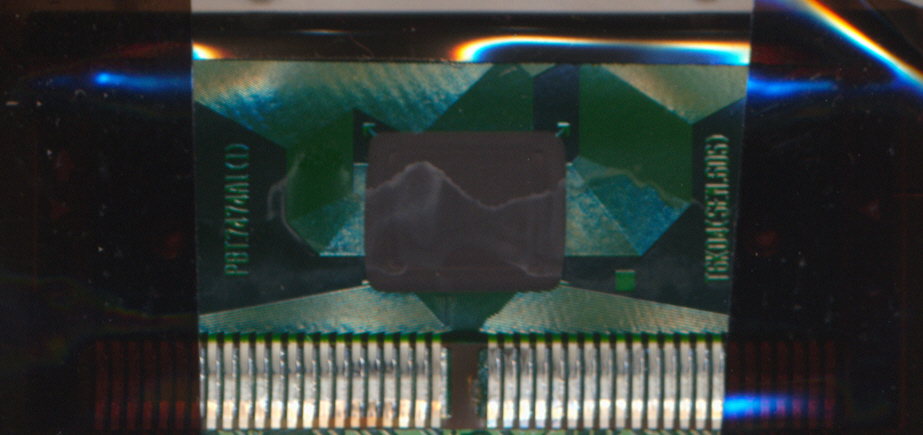

The Toshiba T6K04 display driver of the TI-84 Plus Silver Edition manufactured in May 2004. |
