Additional Pictures

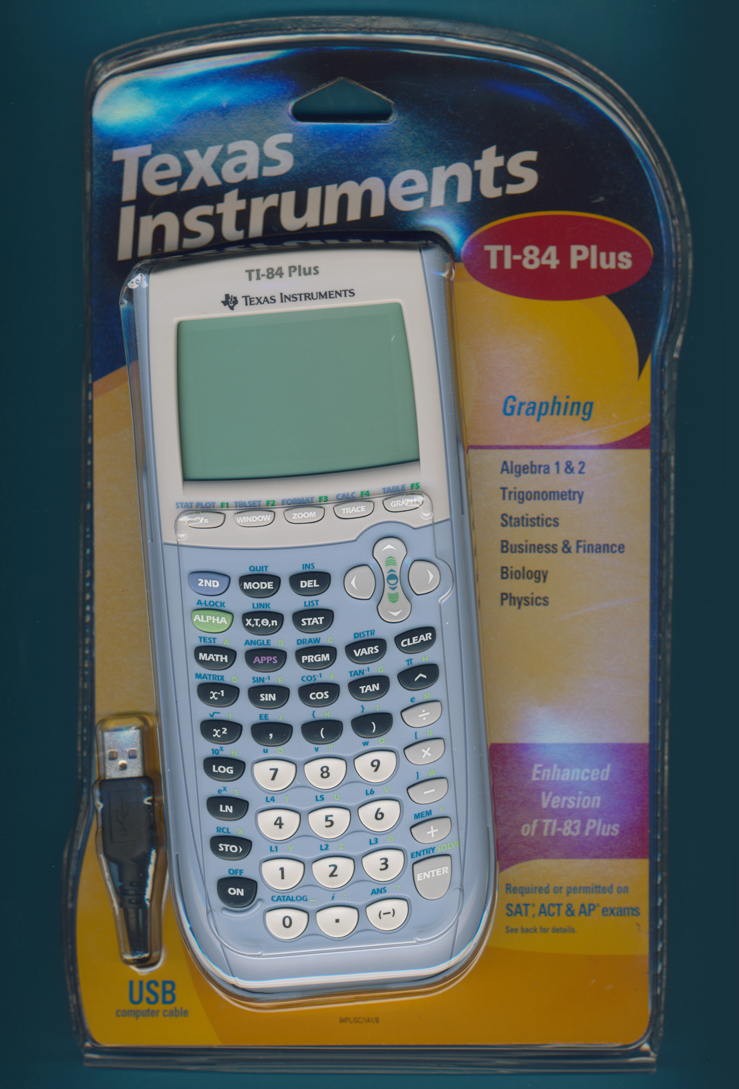

The baby blue TI-84 Plus calculator sold in in 2009 in the Asia Pacific Region in its package

This baby blue TI-84 Plus with the date code P-0209 L was manufactured by
Inventec (Pudong) Corporation in China in February 2009.

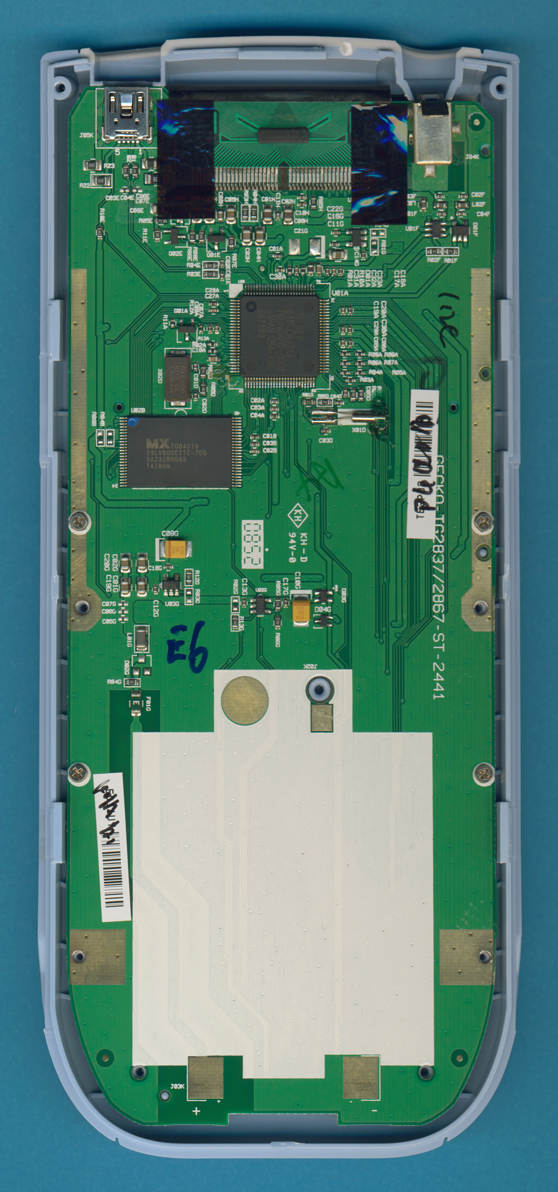

The printed circuit board (PCB) of the TI-84 Plus manufactured in February 2009.

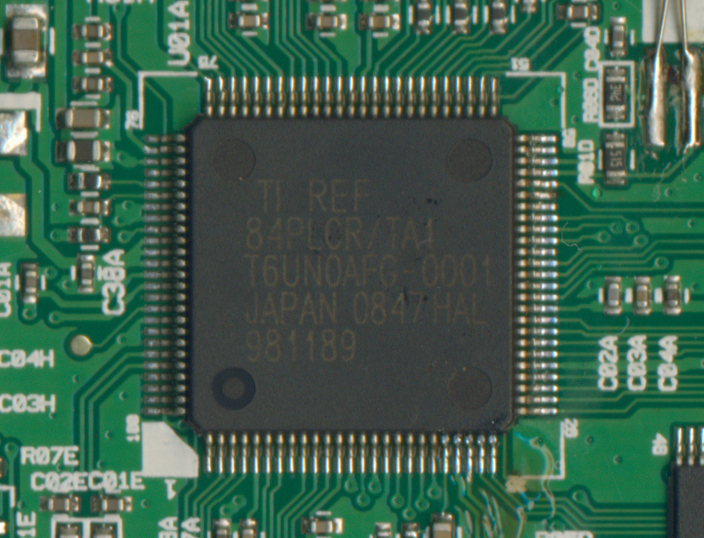

The TI-84 Plus ASIC:

The Flash-ROM of the TI-84 Plus manufactured in 2009.

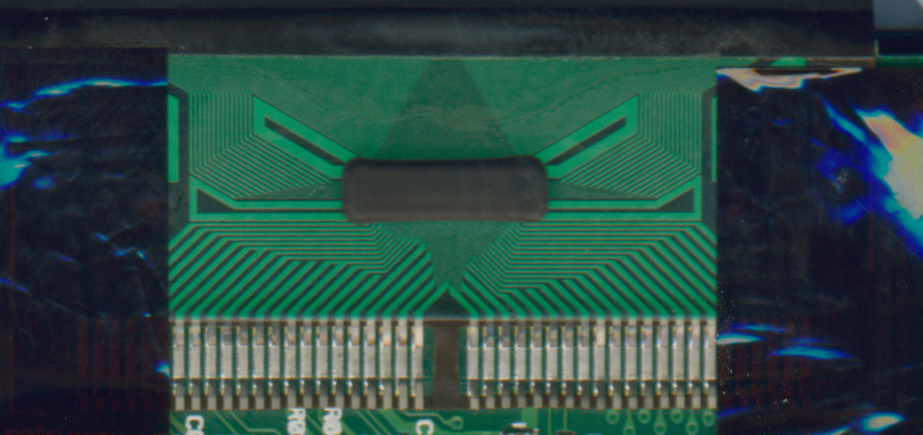

The display driver of the TI-84 Plus manufactured in 2009.


If you have additions to the above article please email: joerg@datamath.org.

Joerg Woerner, September 23, 2009. No reprints without written permission.
