Additional Pictures



The sales box of the TI-84 Plus C Silver Edition calculator sold in August 2013 in the United States.



This TI-84 Plus C Silver Edition with the date code K-0313 was manufactured in March 2013 by
Kinpo Electronics, Inc. in China (Date code K-0313 mth 03 yr 2013).

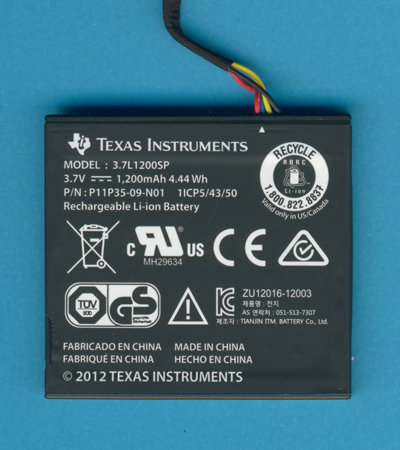

The TI-84 Plus C Silver Edition replaced the 4 AAA-sized alkaline batteries with
a rechargeable Li-ion battery with a capacity of 1,200 mAh and a voltage of 3.7 Volt.

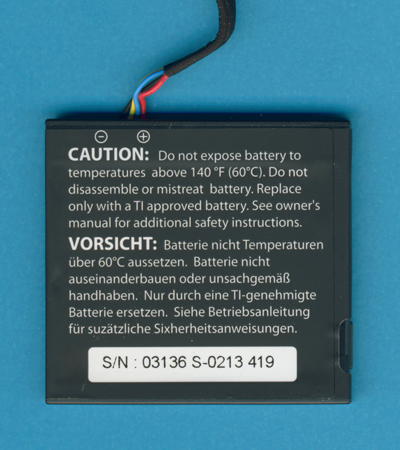

The Li-ion battery of the TI-84 Plus C Silver Edition.

The additional charging contacts of the TI-84 Plus C Silver Edition are located at the front of the calculator.

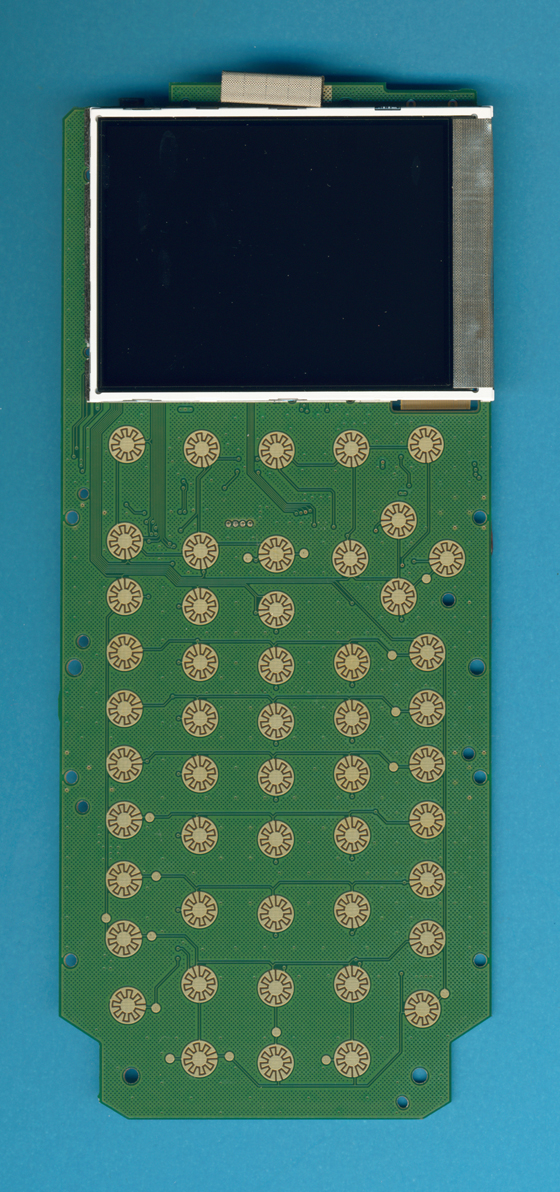

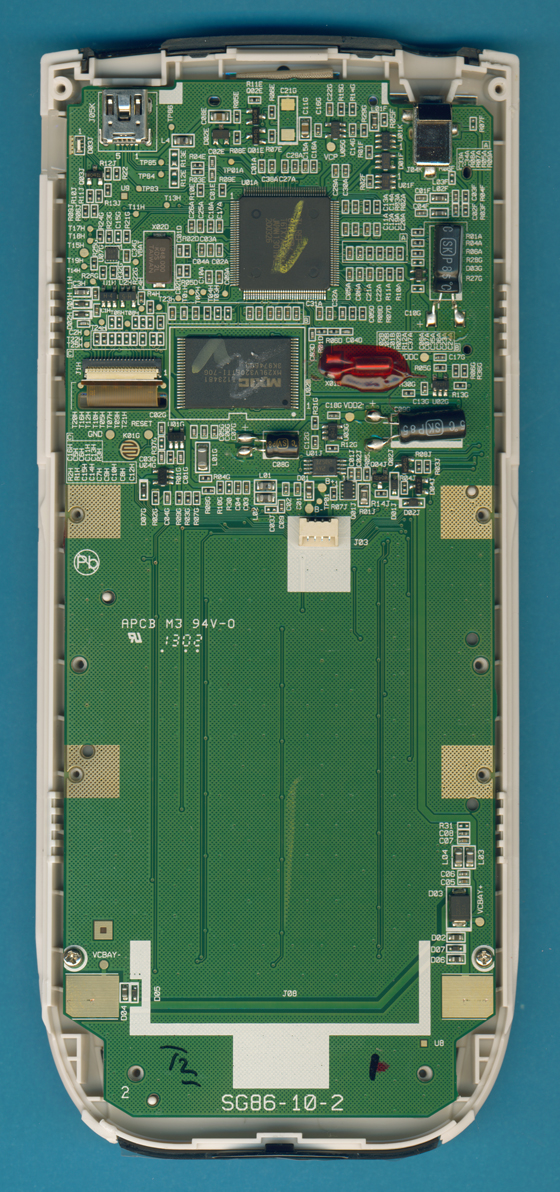

The printed circuit board (PCB) of the TI-84 Plus C Silver Edition manufactured in March 2013.

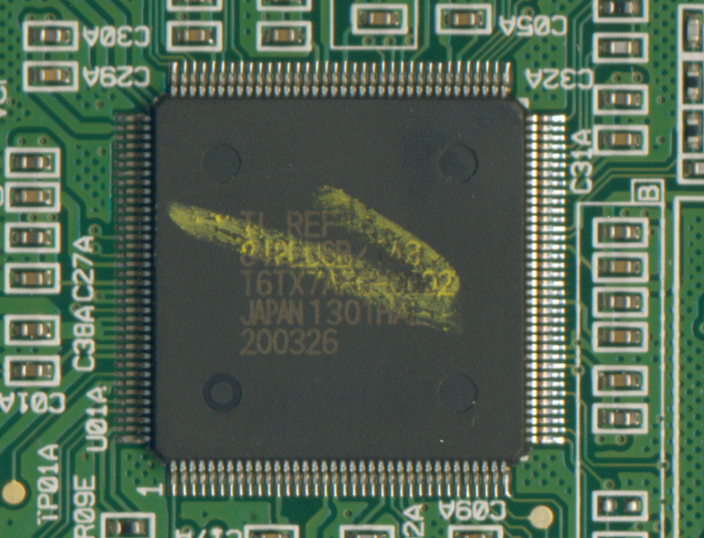

The TI-84 Plus C Silver Edition manufactured in March 2013 with the "TI-REF 84PLUSB/TA3" ASIC.

The Flash-ROM of the TI-84 Plus C Silver Edition manufactured in March 2013 with a capacity of 4 MBytes.


horizontal rule

If you have additions to the above article please email: joerg@datamath.org.

Joerg Woerner, August 14, 2013. No reprints without written permission.
