Additional Pictures
The sales
box of the TI-84 Plus CE Silver Linings calculator sold in July 2015
in the United States.
  |

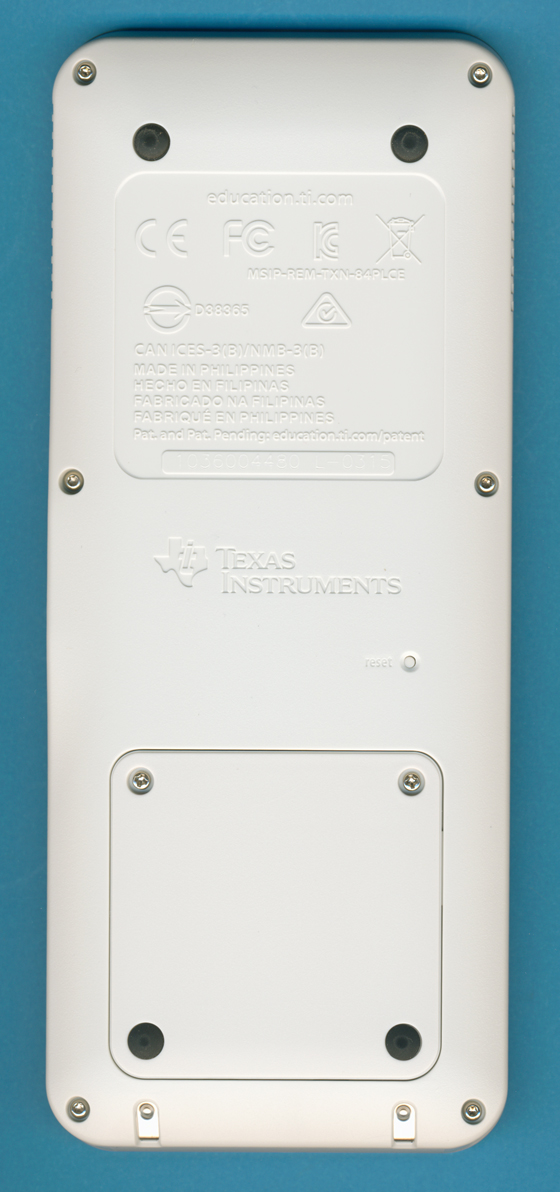

| This TI-84 Plus
CE with the date
code L-0315 was manufactured in March 2015 by Kinpo Electronics, Inc. in the Philippines (Date code L-0315 » mth 03 yr 2015).
|
| The TI-84 Plus
CE replaced the 4 AAA-sized alkaline batteries with a rechargeable Li-ion battery with a capacity of 1,200 mAh and a voltage of 3.7 Volt.
|

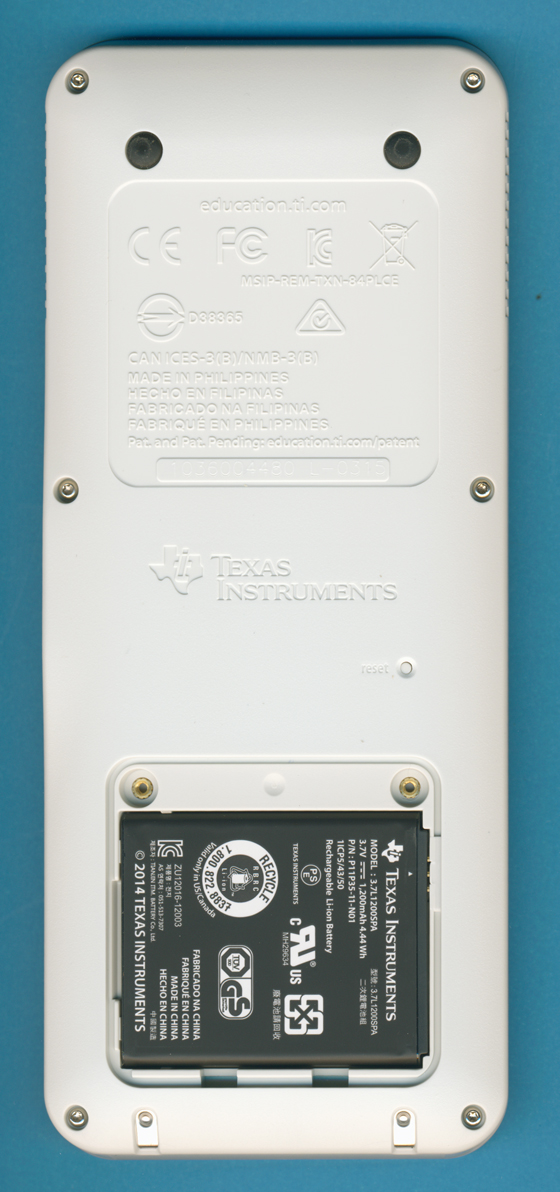

The
Li-ion battery of the TI-84 Plus
CE.
 |

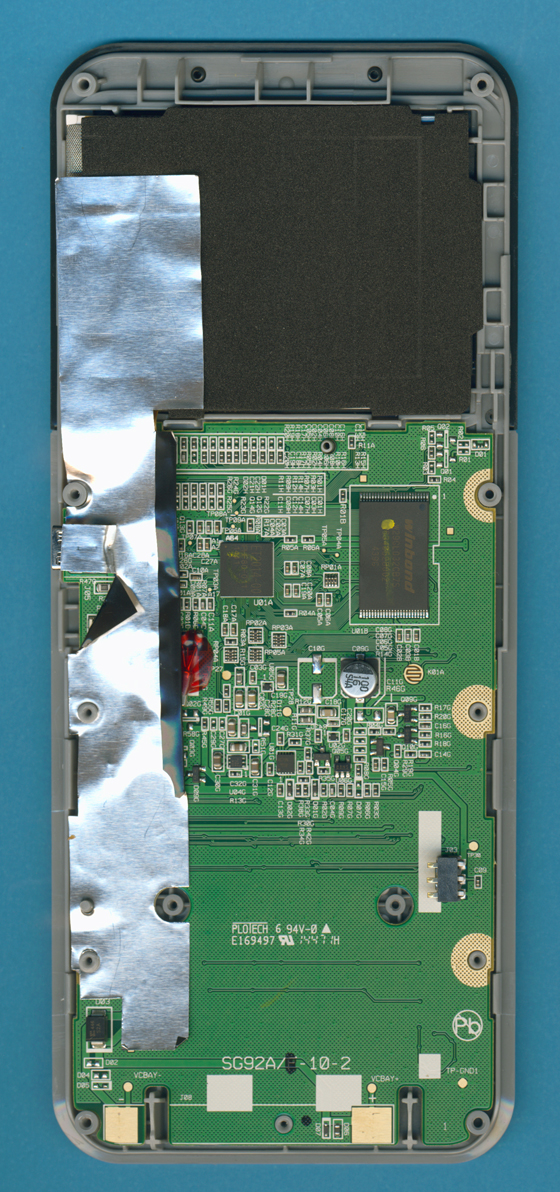

| The printed circuit board
(PCB) of the TI-84 Plus CE manufactured in
March 2015.
|

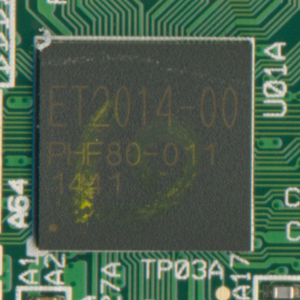

| The TI-84 Plus CE manufactured in
March 2015 with the "ET 2014-00"
ASIC.
|

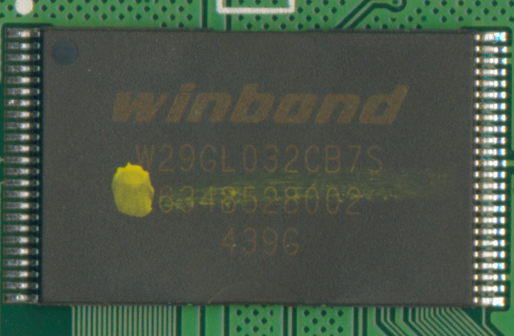

| The
Flash-ROM
of the TI-84 Plus CE manufactured in March 2015 with a
capacity of 4 MBytes.
|
