Additional Pictures

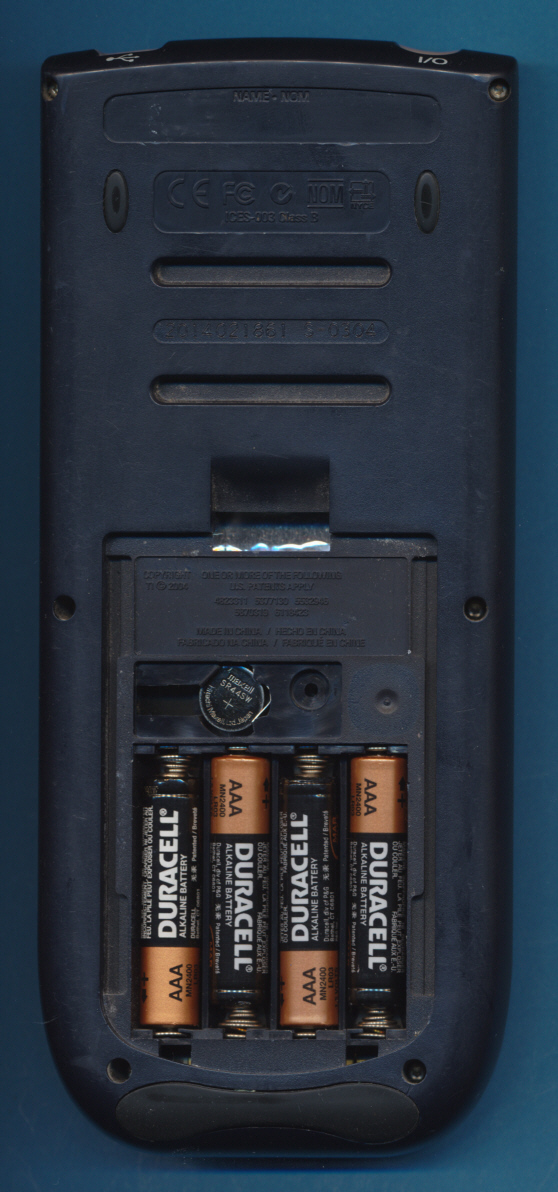

| This early TI-84 Plus with the date
code S-0304 was manufactured by Inventec in China in March 2004 (Date code S-0304 » mth 03 yr 2004).
|

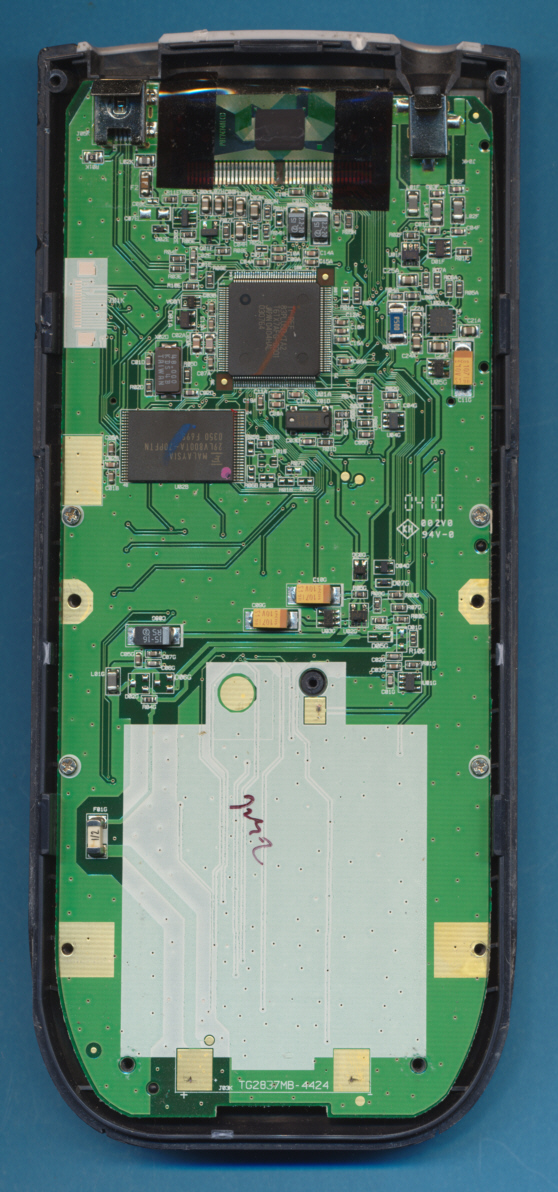

| The printed circuit board
(PCB) of the TI-84 Plus manufactured in 2004. Both the Z-80 microprocessor and the RAM are integrated into an ASIC.
|

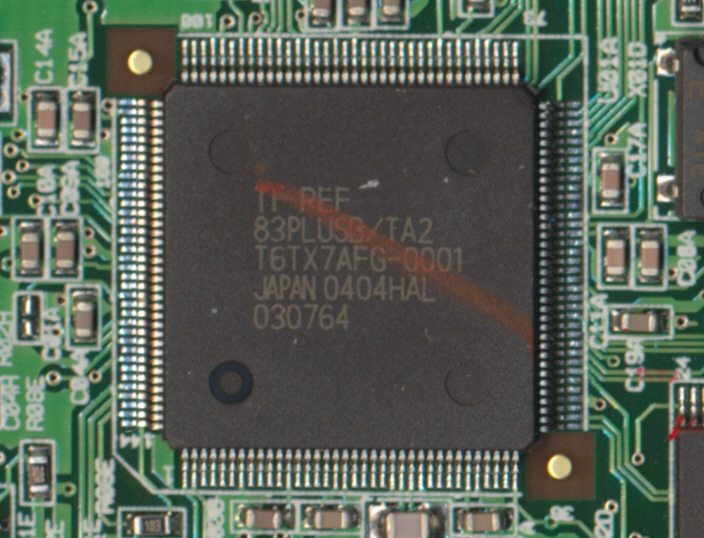

| The TI-84 Plus manufactured in
March 2004 with the tiny "TI-REF 83PLUSB/TA2"
ASIC.
|

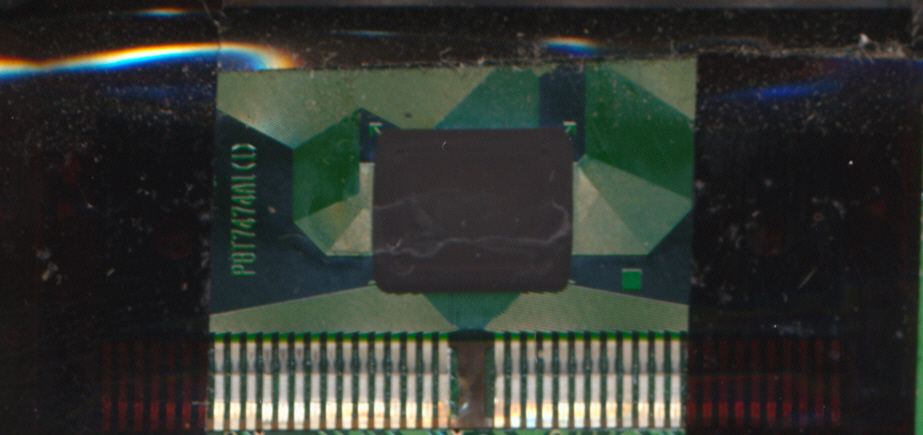

| The Toshiba T6K04 display
driver
of the TI-84 Plus manufactured in March 2004.
|
