Additional Pictures

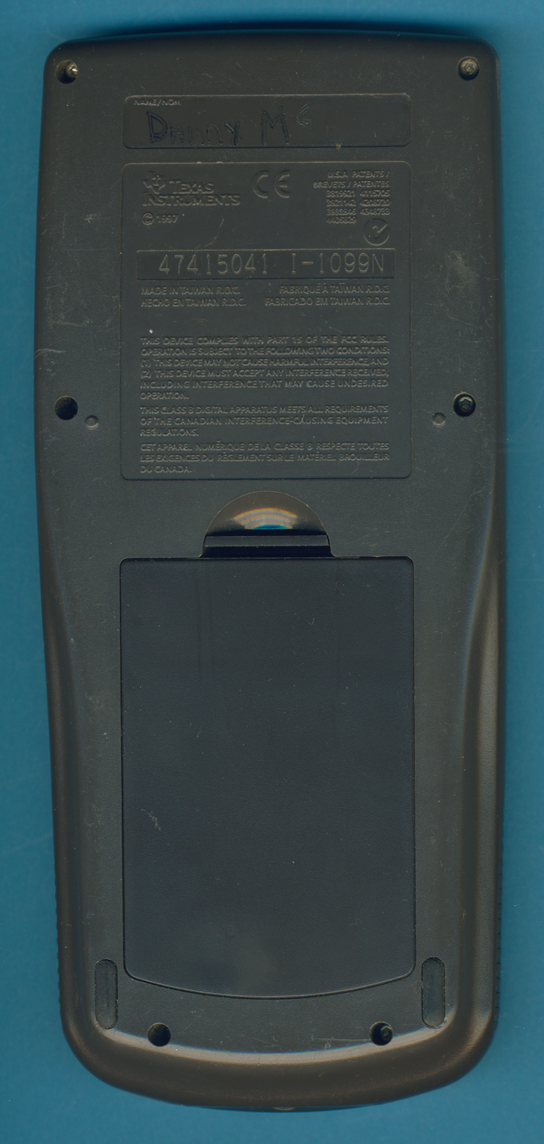

This TI-83 Graphing calculator was manufactured in October 1999 by
Inventec Corporation in Taiwan (Date code I-1099N » mth 10 yr 1999).

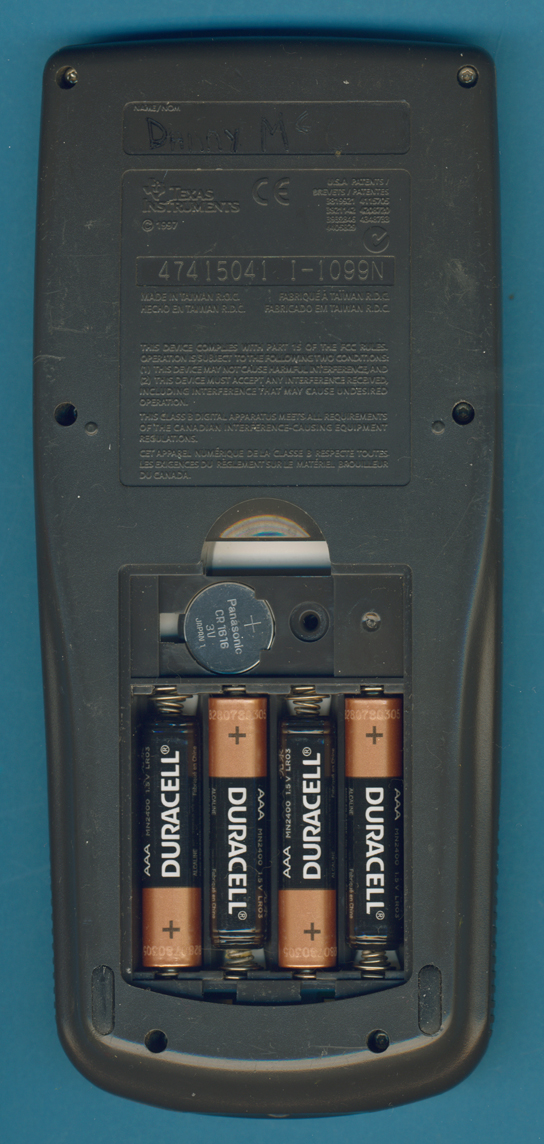

The TI-83 is powered by 4 AAA batteries and a CR1620 backup battery.

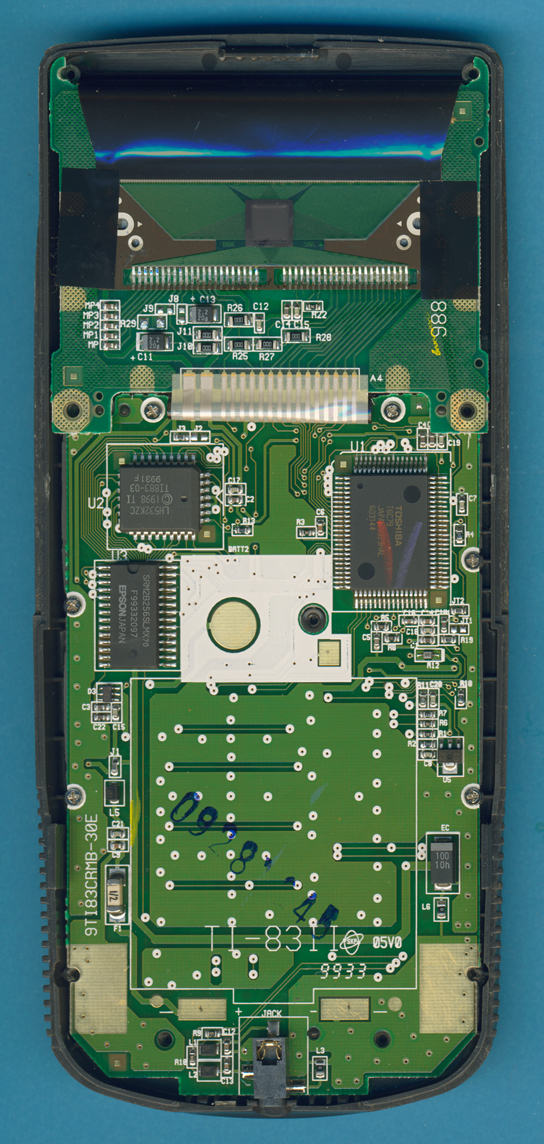

The printed circuit board (PCB) of this TI-83 looks very similar to the TI-82.

The main components of the TI-83: Toshiba T6C79 Application Specific CPU
Sharp LH532KZC TI-883-03 ©1998 ROM and Epson SRM2B256 RAM.

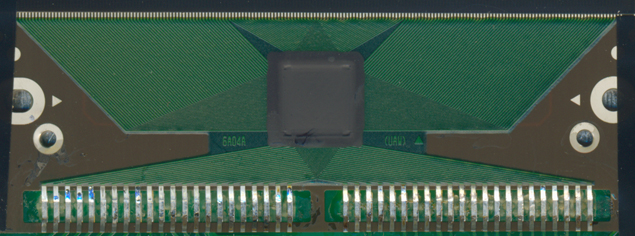

The display driver of the TI-83  in a small COB housing mounted on a second PCB:
