Additional Pictures
| The TI-83
Parcus calculator sold in 2003 in its package.
|
|
| The PCB
(printed circuit board) of the TI-83 Parcus with just 4 main components.
|
This TI-83 Parcus was manufactured in October 2002 by Inventec in China.
|
|

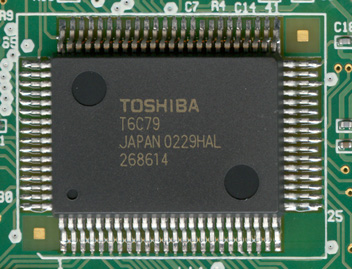

Toshiba T6C79 Application Specific CPU.
|

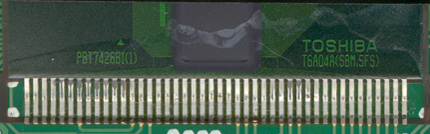

The Toshiba
T6A04A display driver
of the TI-83 in a small COB housing mounted on a second PCB.
|

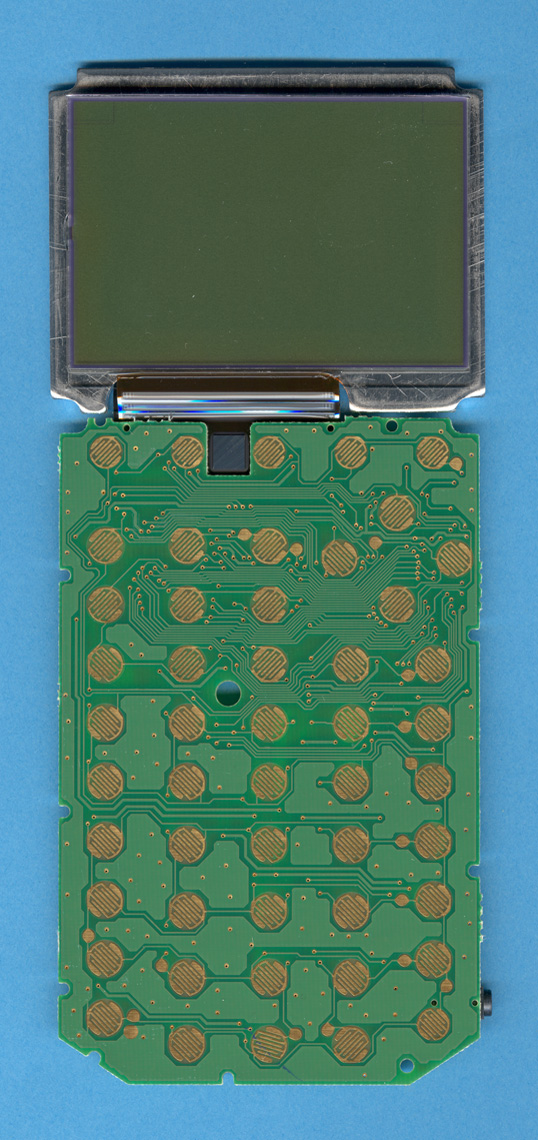

| The graphic LC-Display
with attached display driver.
|

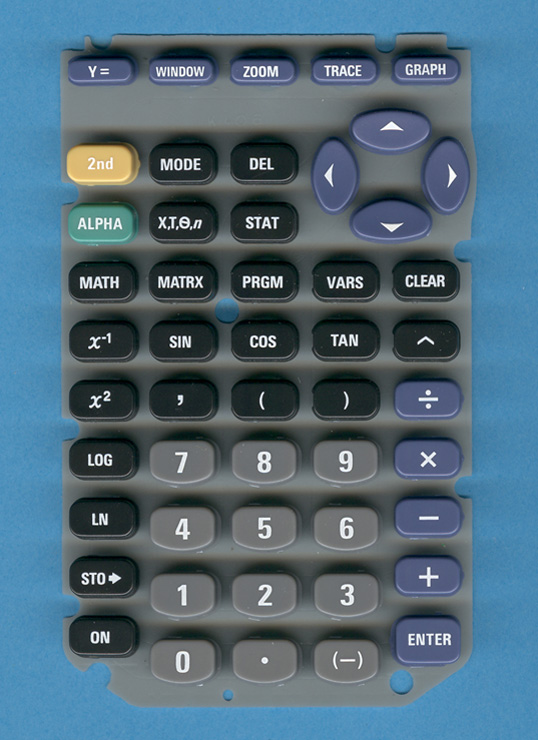

The keyboard assembly of the TI-83 Parcus.
|
If you have additions to the above article please email: joerg@datamath.org.
© Joerg Woerner, April 26, 2008. No reprints without written permission.
