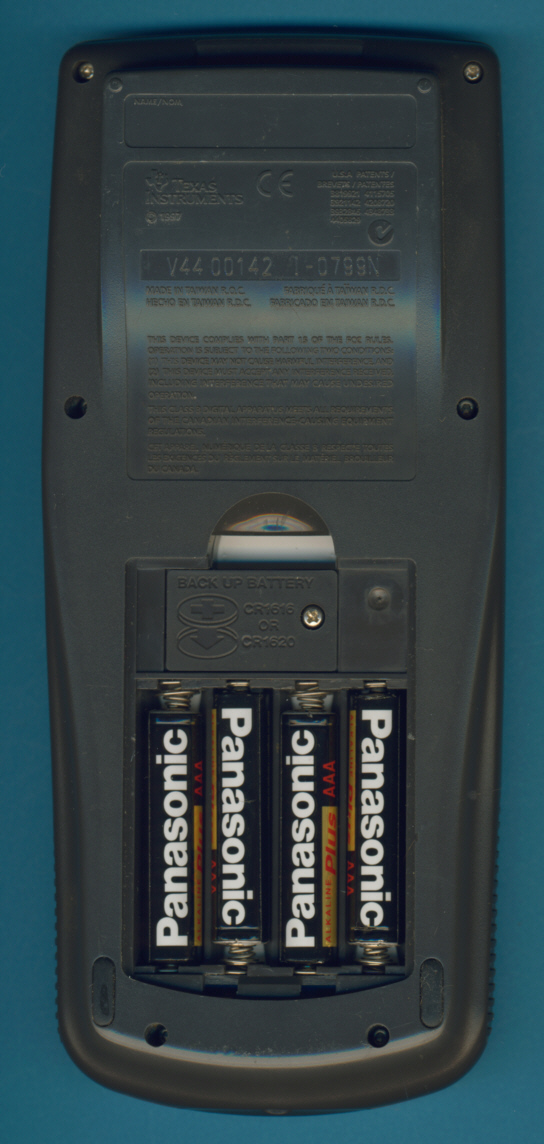

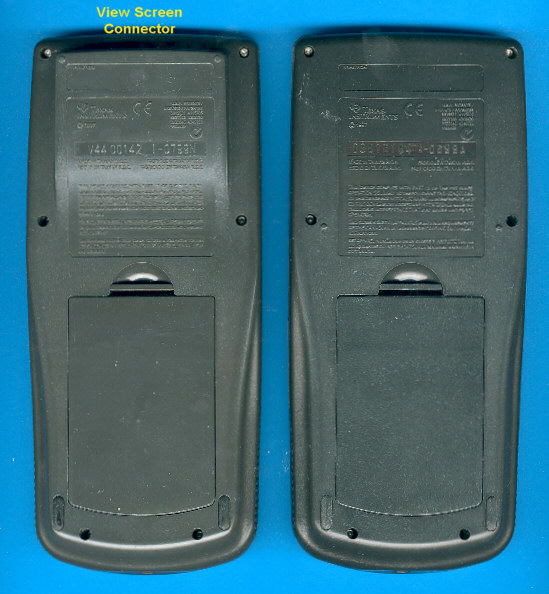

| This TI-83
ViewScreen calculator with the Date code
I-0799 was manufactured by Inventec in Taiwan in July 1999. Please notice the bulkier housing to accommodate the additional electronics.
|

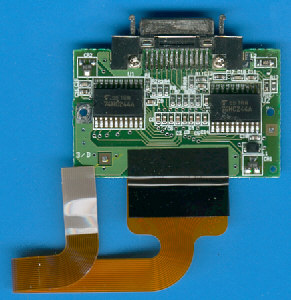

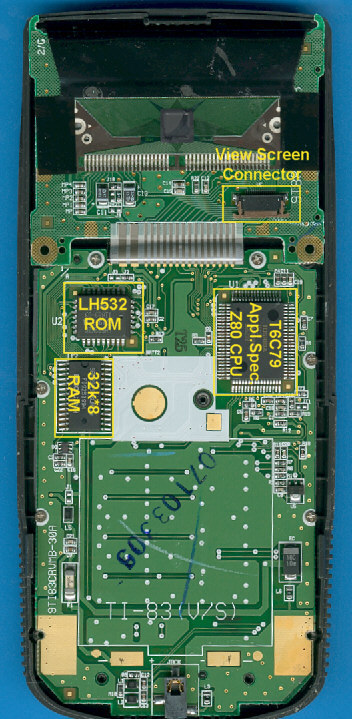

| The
printed circuit boards (PCBs) of the TI-83 VSC are identical with its sibling but added a small connector to a piggy-back PCB with the two additional driver circuits.
|

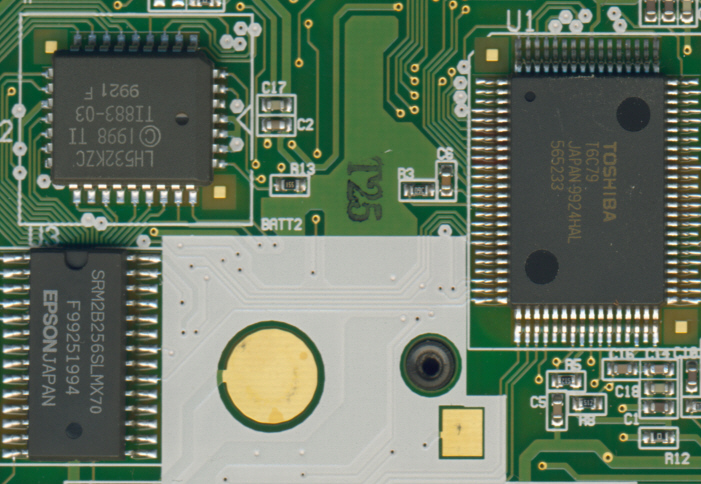

| The main
components of the TI-83 VSC: Toshiba
T6C79 Application Specific CPU, Sharp LH532©1998 ROM and Epson SRM2B256 RAM.
|

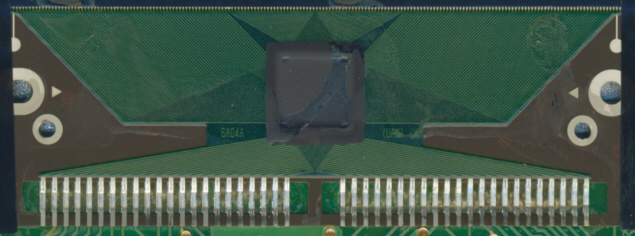

| The Toshiba
T6A04A display driver
of the TI-83 VSC in a small COB housing mounted on a second PCB:
|
