DATAMATH  CALCULATOR  MUSEUM

Additional Pictures



The sales box of a TI-83 Premium CE Edition Python Graphing calculator sold in 2019 in France.

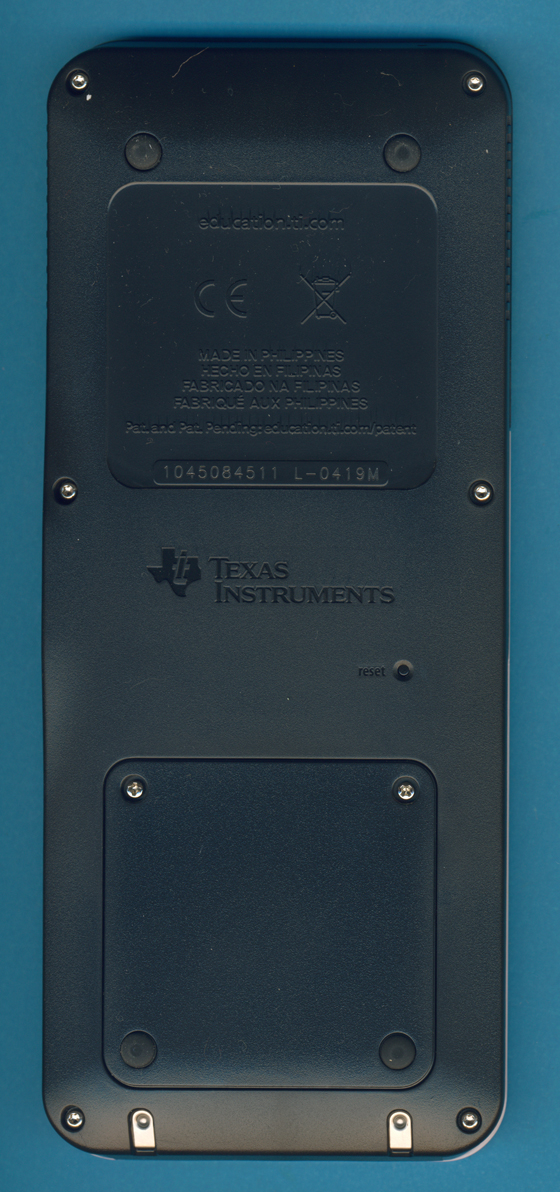

This TI-83 Premium CE Edition Python with the date code L-0491M was manufactured in April 2019 by
Kinpo Electronics, Inc. in the Philippines (Date code L-0419 » mth 04 yr 2019).

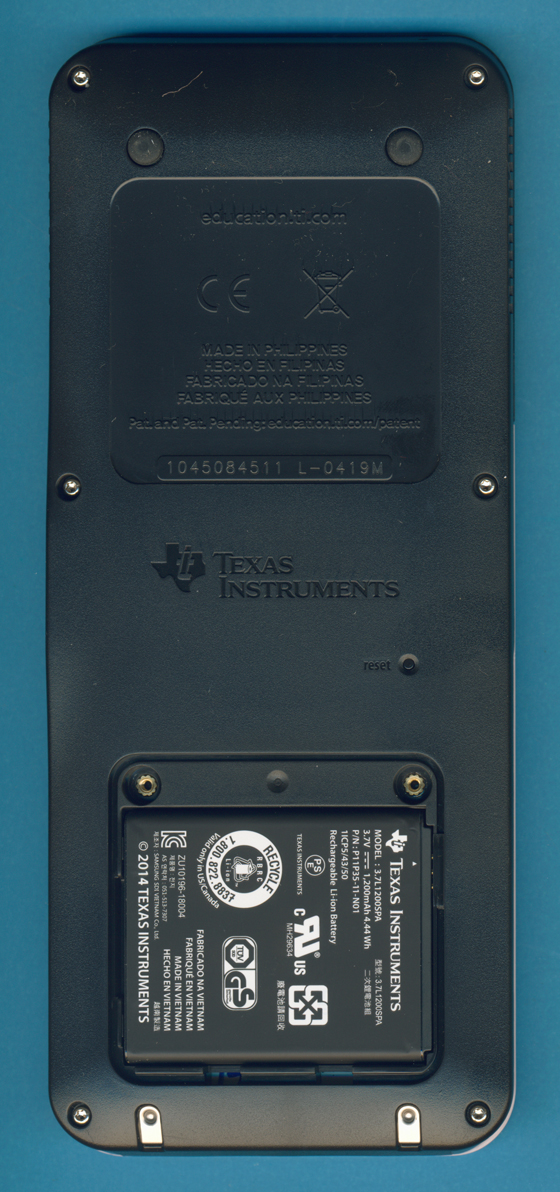

The TI-83 Premium CE Edition Python replaced the 4 AAA-sized alkaline batteries with
a rechargeable Li-ion battery with a capacity of 1,200 mAh and a voltage of 3.7 Volt.

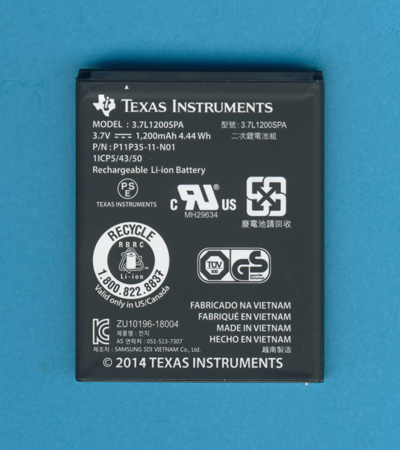

The Li-ion battery of the TI-83 Premium CE Edition Python.

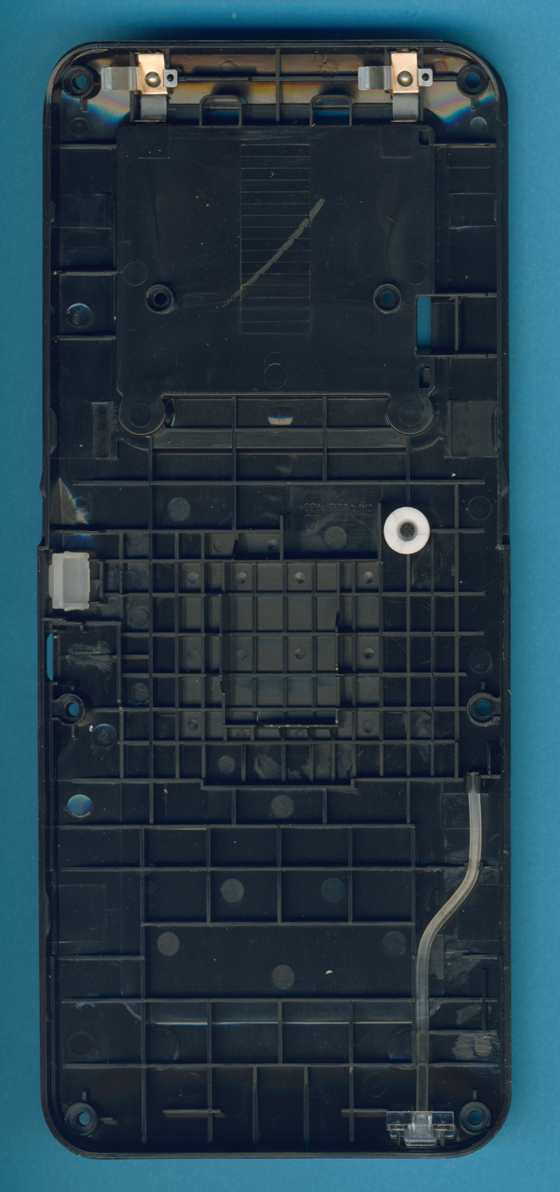

The light pipe in the housing of the TI-83 Premium CE Edition Python for the "Press-to-Test: feature.

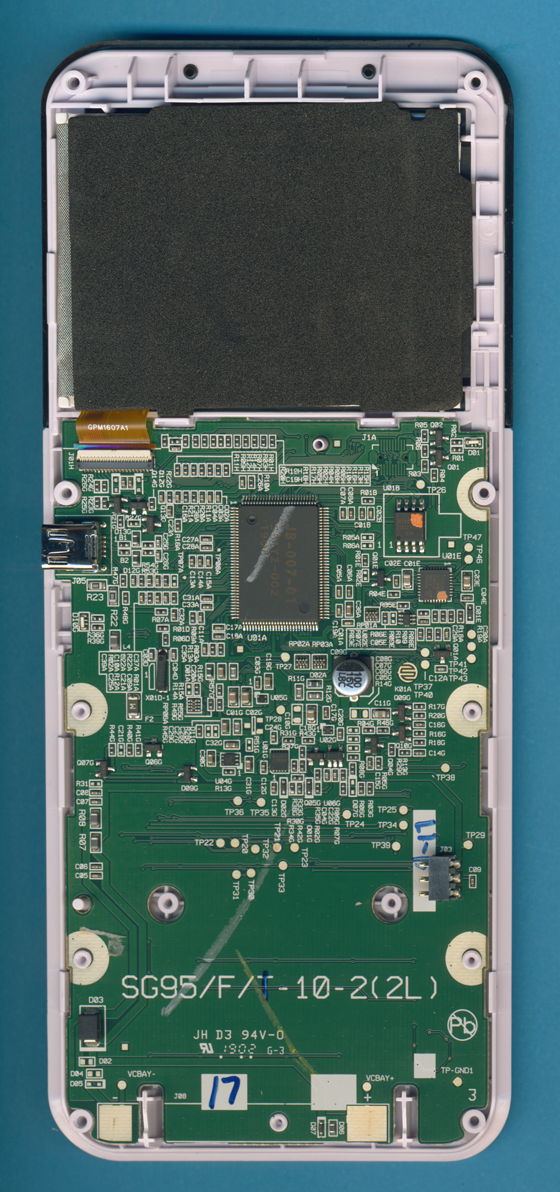

The printed circuit board (PCB) of the TI-83 Premium CE Edition Python manufactured in April 2019.

The TI-83 Premium CE Edition Python manufactured in April 2019 with the "JB-007-01" ASIC.

The Serial NOR Flash-ROM of the TI-83 Premium CE Edition Python
manufactured in April 2019 with a capacity of 32M Bits.

The Atmel ATSAMD21E18A Coprocessor of the TI-83 Premium CE Edition Python
manufactured in April 2019.
