Additional Pictures

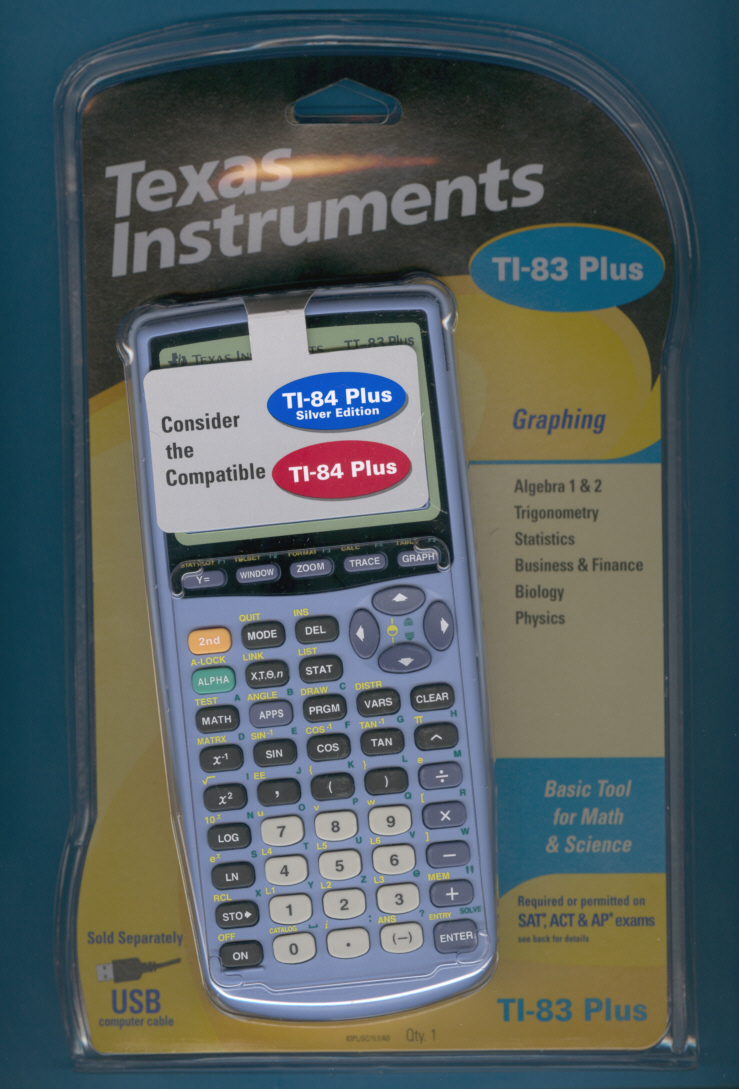

The blue TI-83 Plus calculator sold in 2007 by Target in its package

The printed circuit board (PCB) of the TI-83 Plus manufactured in 2007 is completly different to the
earlier versions. Both the Z-80 microprocessor and the RAM are integrated into an ASIC.

The TI-83 Plus ASIC in chip-on-board technology.

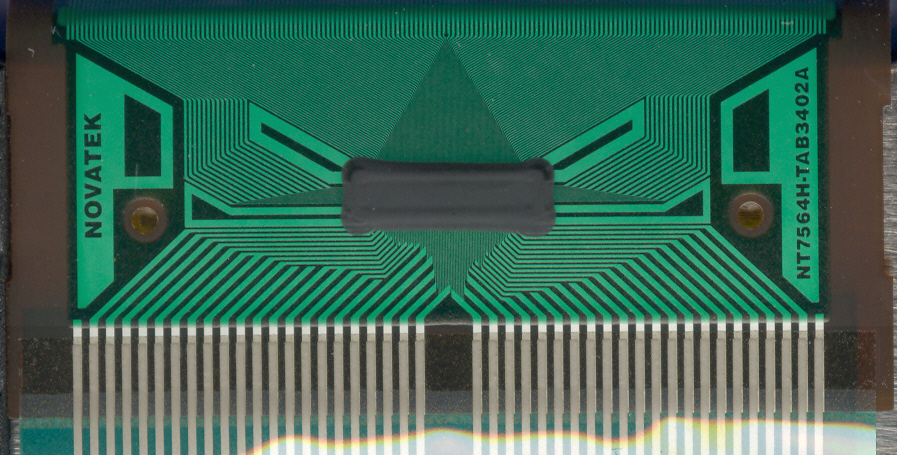

The display driver of the TI-83 Plus manufactured in 2007.
