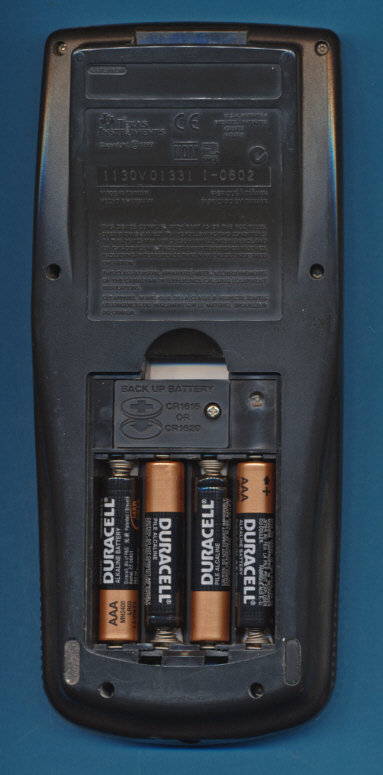

| This TI-83 Plus S.E. VSC
calculator was manufactured in August 2002 by Inventec Corporation in Taiwan (Date code I-0802 » mth 08 yr 2002). It uses a redesigned bottom shell of the housing to accommodate the ViewScreen connector.
|

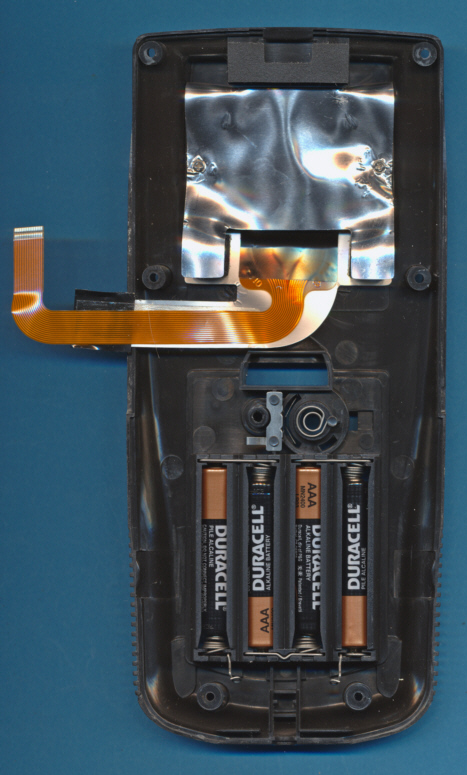

| A small, carefully
shielded PCB (printed circuit board) hosts some drivers between the ViewScreen connector and the flexible cable reaching to the display PCB.
|

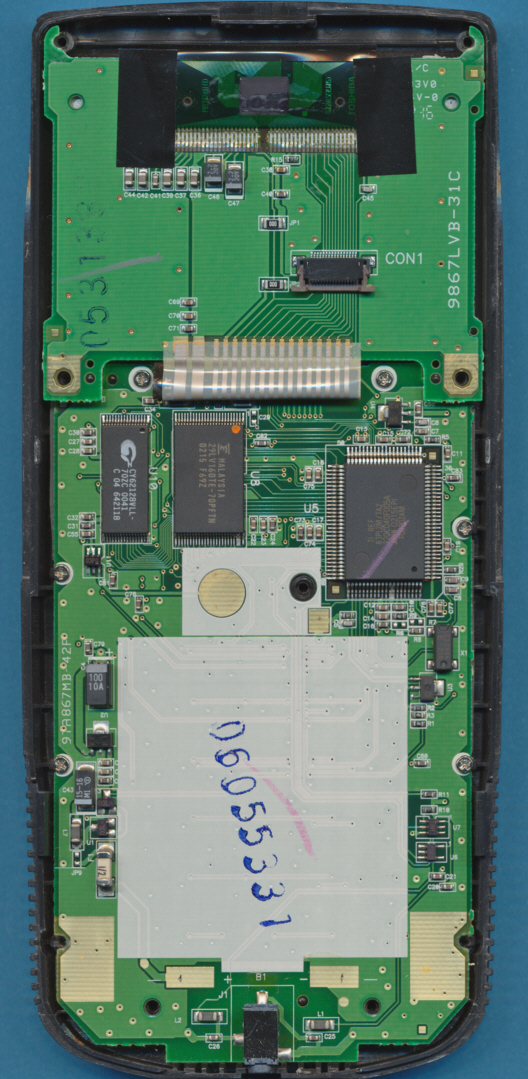

| The main PCB of the TI-83 Plus S.E.
VSC is identical with the TI-83 Plus S.E. but we notice the additional connector on the display PCB for the ViewScreen.
|

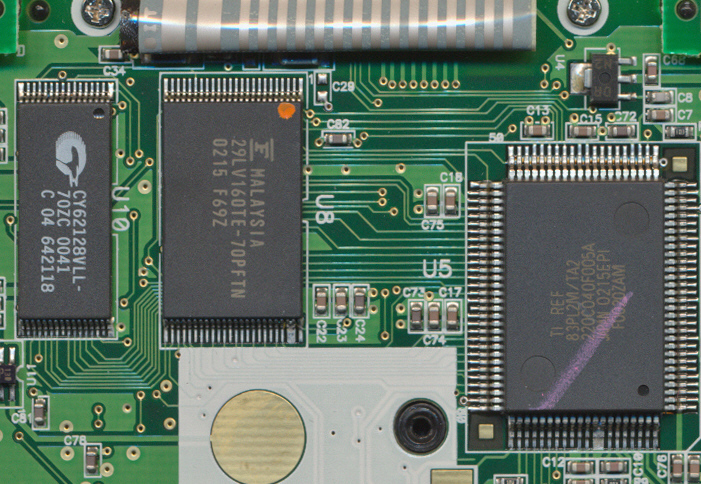

| The PCB of this TI-83
Plus S.E. VSC manufactured in August 2002 utilizes two huge memories: The S-RAM Cypress CY62128 stores 128k Byte Data and the Flash-ROM Fujitsu 29LV160 holds up to 2M Byte Program.
|

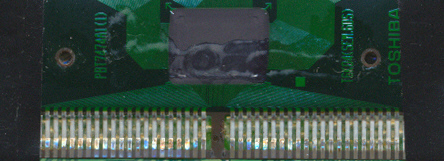

| The display
driver Toshiba T6K04 of the TI-83 Plus S.E. VSC manufactured Summer
2002.
|
