Additional Pictures

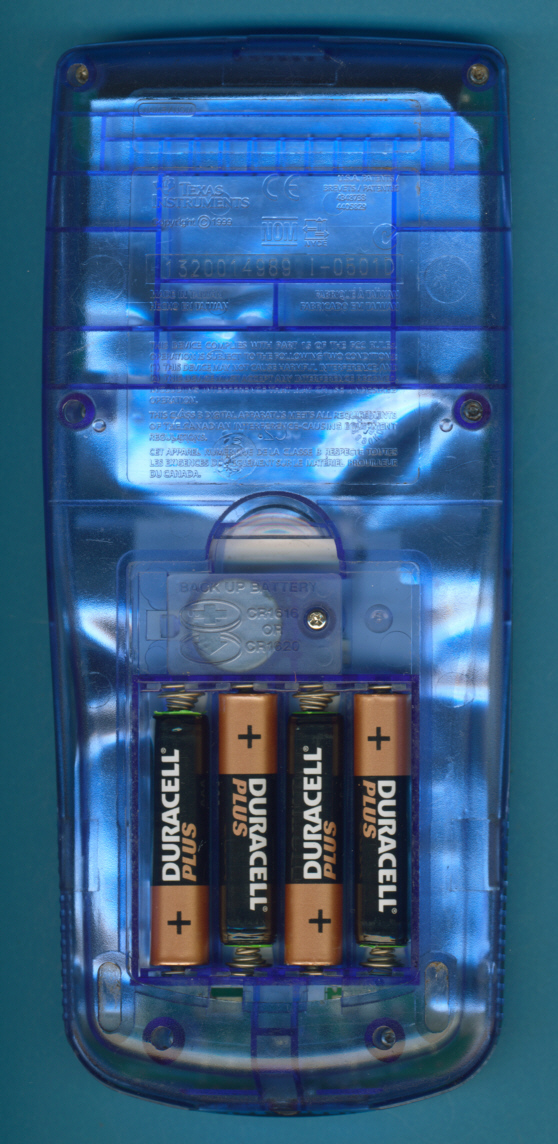

| This TI-83 Plus with the date
code I-0501D was manufactured by Inventec in Taiwan in May 2001.
|
| The printed circuit board
(PCB) of the TI-83 Plus manufactured in 2001 is more
or less identical with the original design introduced already in 1999.
|
| The PCB of this TI-83
Plus manufactured in May 2001 with the classic Z-80 based
architecture. The Flash-ROM F29F400 stores up to 512k Byte Program and the S-RAM A62W5308 sports 32k Byte capacity.
|

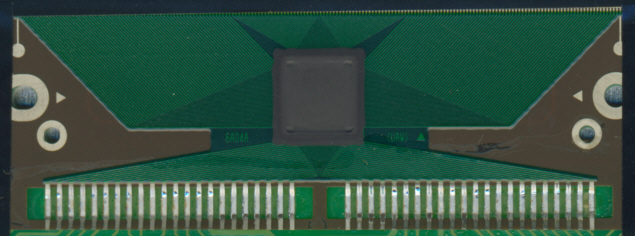

| The display
driver Toshiba T6A04A of the TI-83 Plus manufactured in May 2001
|
If you have additions to the above article please email: joerg@datamath.org.
© Joerg Woerner, March 26, 2009. No reprints without written permission.
