Additional Pictures

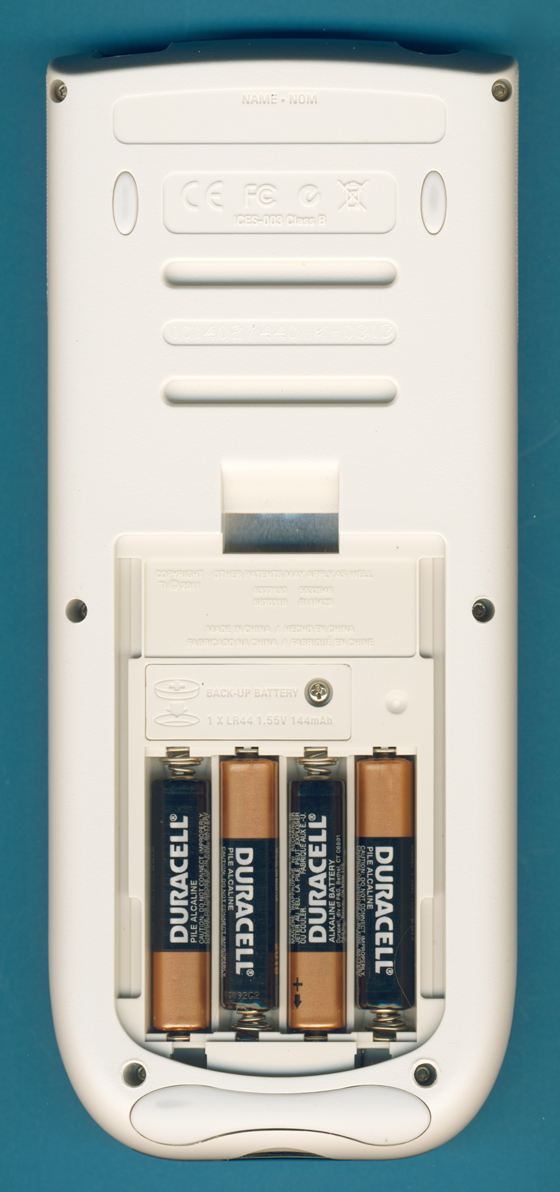

| This TI-83 Plus.fr with
the date
code K-0313 was manufactured in March 2013 by Kinpo Electronics, Inc. in China (Date code K-0313 » mth 03 yr 2013).
|

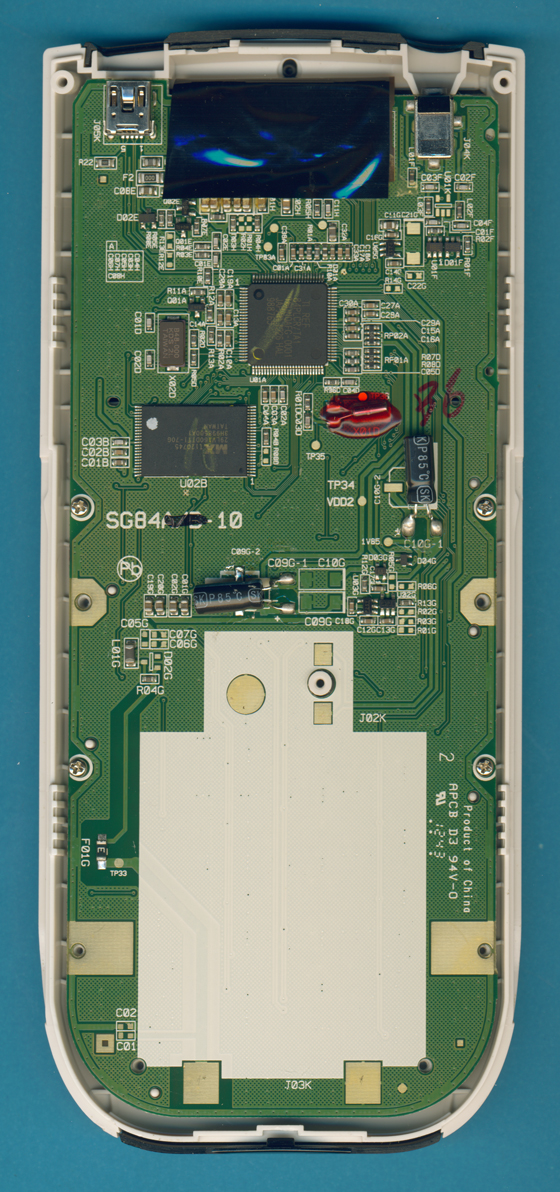

| The printed circuit board
(PCB) of the TI-83 Plus.fr looks very familiar to us
and sports even a SG84A designation.
|

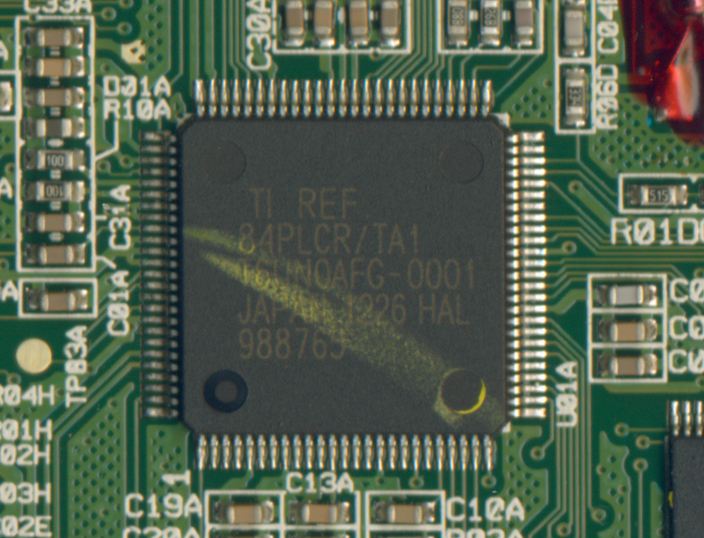

| The TI-83 Plus.fr
manufactured in March 2013 with the tiny "TI-REF 84PLCR/TA1"
ASIC.
|

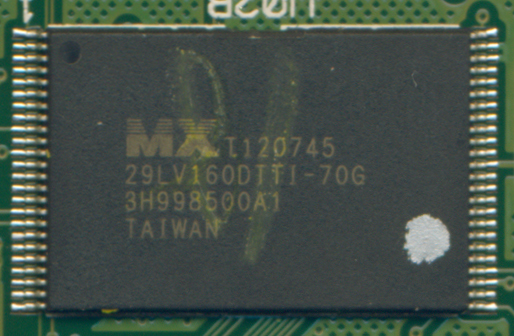

| The
Flash-ROM
of the TI-83 Plus.fr manufactured in March 2013 with a capacity of 2M
Bytes.
|
If you have additions to the above article please email: joerg@datamath.org.
© Joerg Woerner, August 15, 2013. No reprints without written permission.
