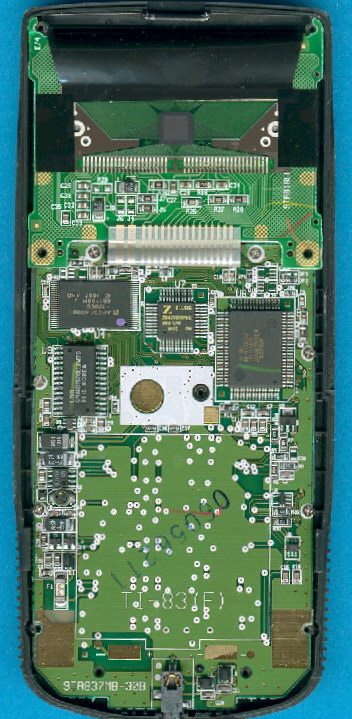

| The internal construction
of the TI-83 Plus with a Z80 microprocessor, 32k Bytes RAM and 512k Bytes Flash-ROM and a supporting ASIC on the main PCB. The second PCB holds the LCD-driver circuit.
|

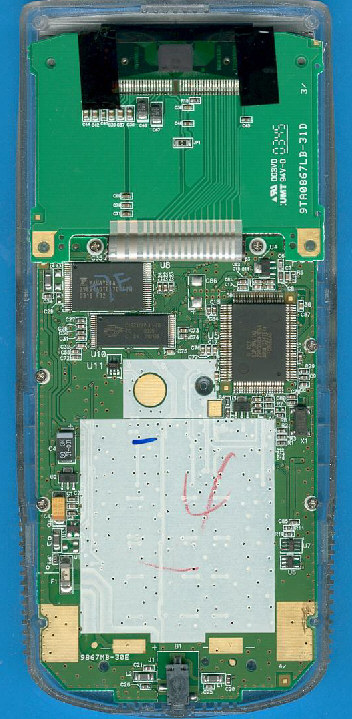

The enhanced TI-83 Plus Silver
Edition raised the Flash ROM capacity to 2M Bytes and integrated the Z80 microprocessor into the supporting ASIC. Even the LCD-driver is somewhat. smaller
|
The new TI-84 Plus
Silver
Edition integrated not only the Z80 microprocessor but also the RAM and USB logic into an ASIC. The LCD-driver is now integrated on the main PCB.
|
| The TI-83 Plus

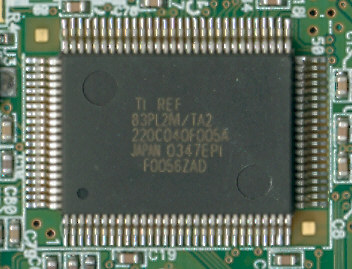

Silver Edition ASIC:
|

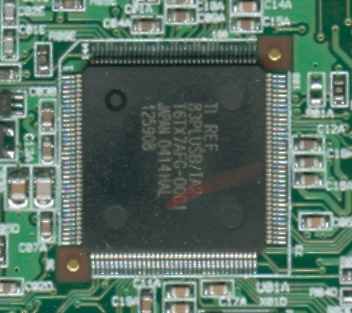

The TI-84 Plus
Silver Edition ASIC:
|
