Additional Pictures

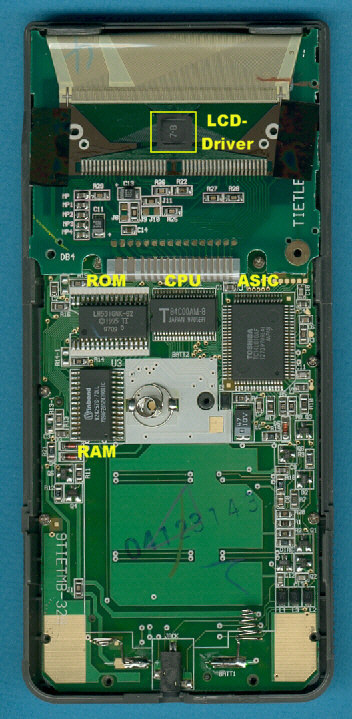

The internal construction of the original TI-82
with two different printed circuit boards (PCB's).

The later second design of the TI-82 uses
similiar electronics in a larger housing.

The later Parcus model reduced the internal
components dramatically.

If you have additions to the above article please email:

Joerg Woerner, July 5, 2002. No reprints without written permission.
