Additional Pictures

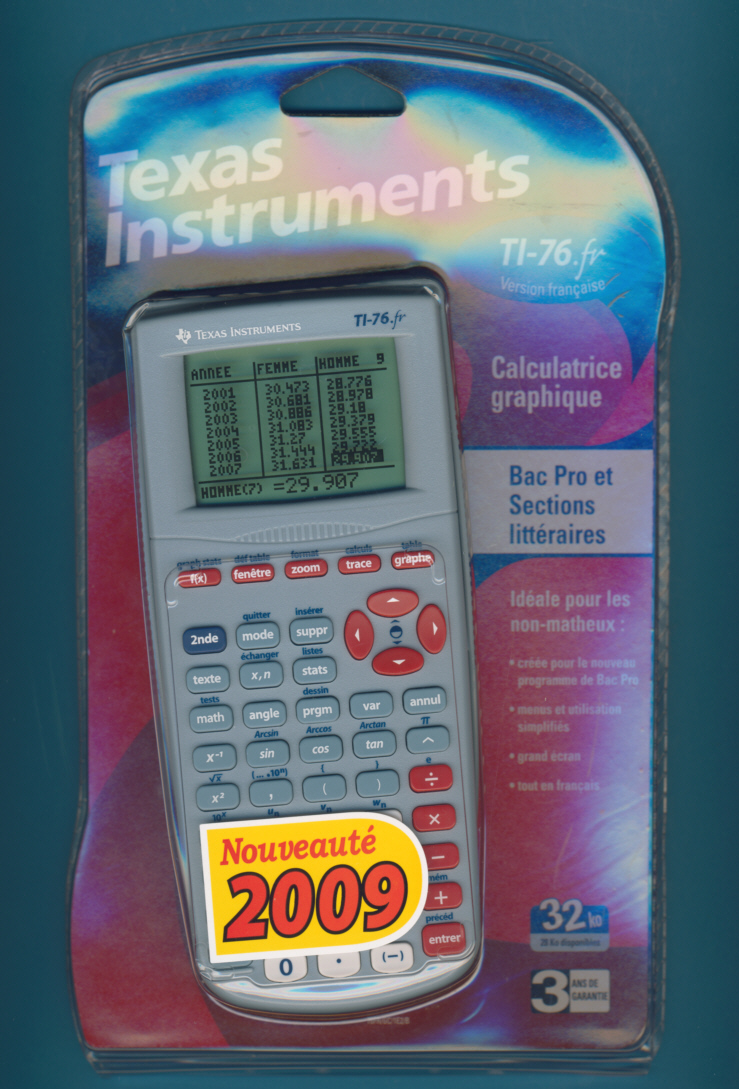

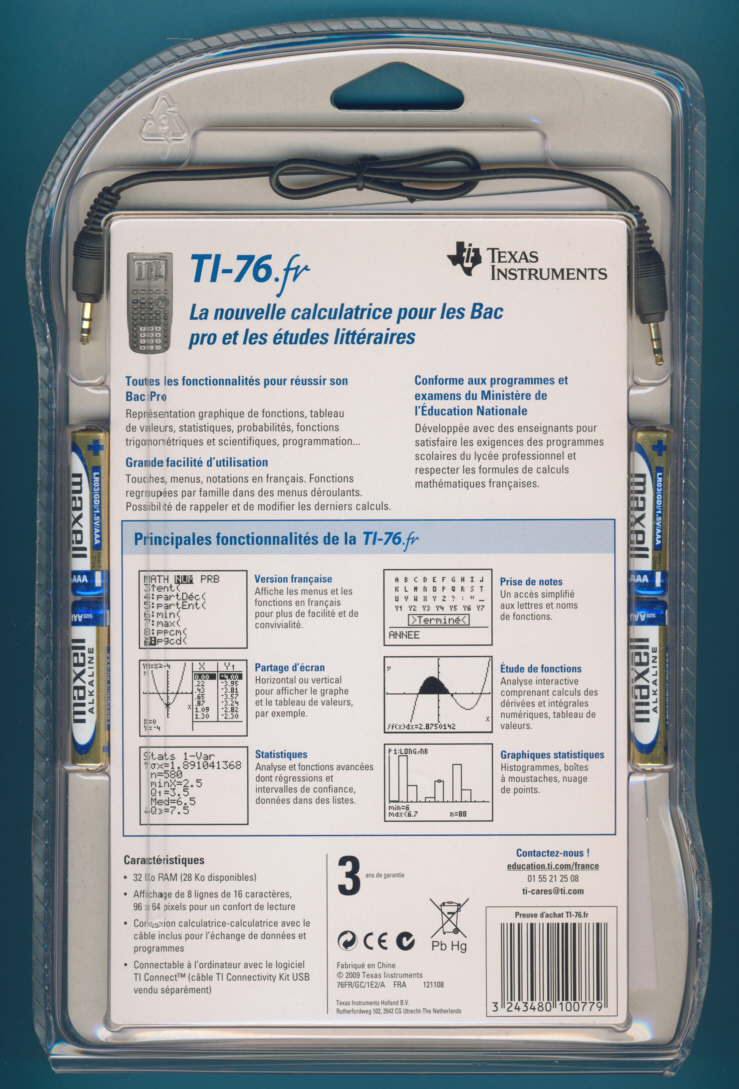

| The light-blue TI-76.fr calculator
sold in 2009 in its package. This calculator
was only available in France and covers just one language: French.
|

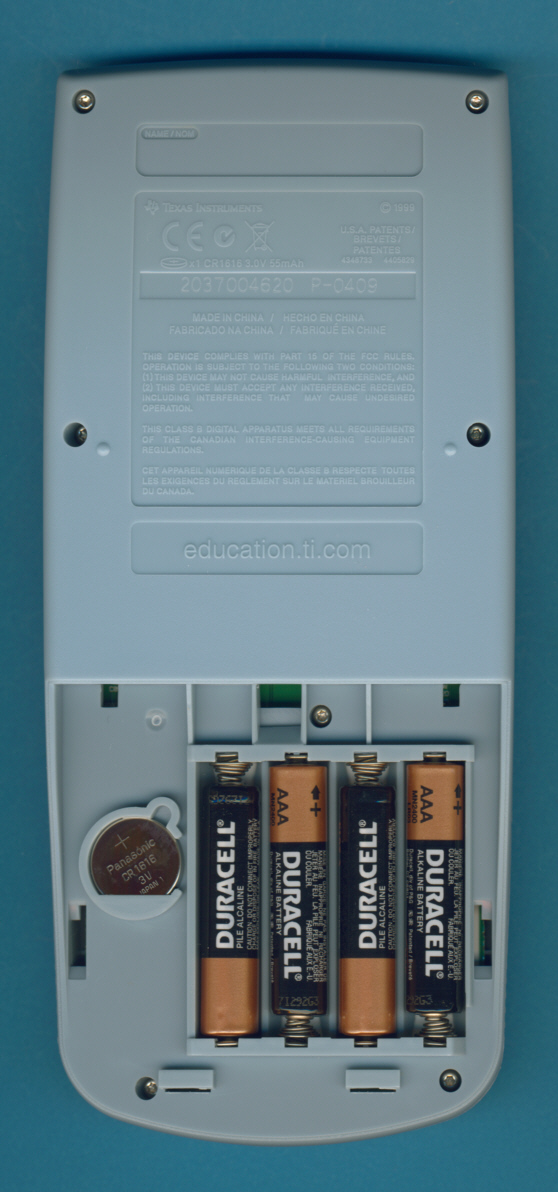

| This TI-76.fr Graphing
calculator was manufactured in April 2009 by Inventec (Pudong) Corporation in China (Date code P-0409 » mth 04 yr 2009).
|
| The printed circuit board
(PCB) of the TI-76.fr manufactured in 2009 looks identical with the TI-82 Stats.fr introduced in 2006.
|

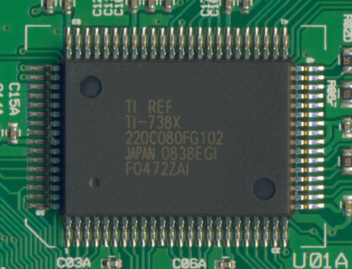

| The TI-76.fr ASIC
TI-738X 220C080 in a standard flatpack housing.
|
| The TI-76.fr Flash-ROM
Macronix 29LV400 with 512k Byte capacity.
|

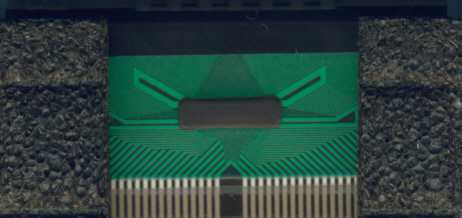

| The display
driver Novatek NT7564H of the TI-76.fr manufactured in 2009.
|
If you have additions to the above article please email: joerg@datamath.org.
