Additional Pictures

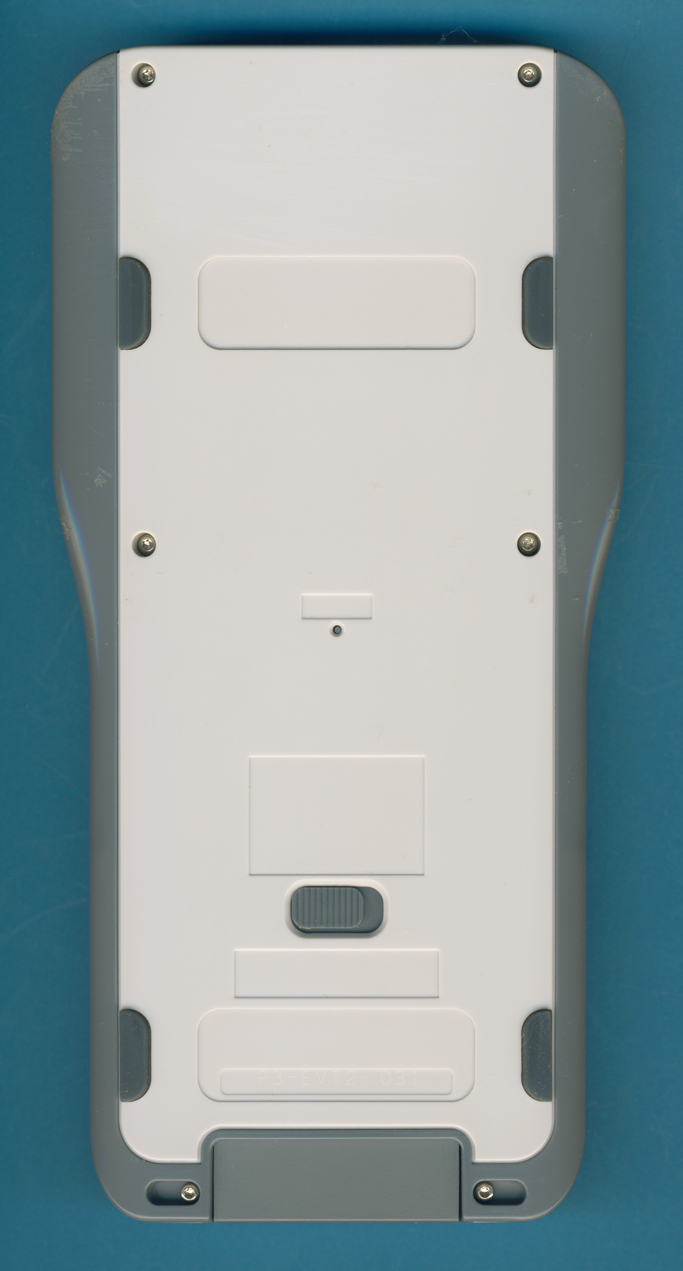

The backside of the TI-Nspire+ prototype looks almost identical to the released TI-Nspire.

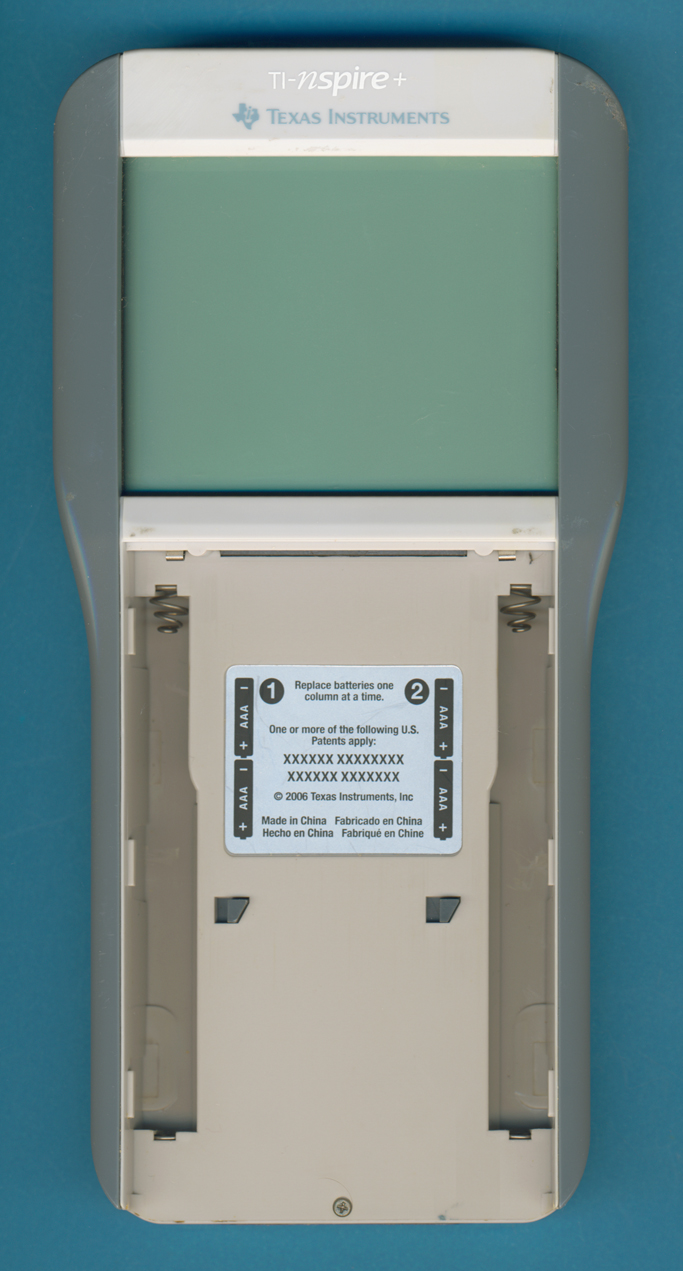

Changing the 4 AAA-sized batteries of the TI-Nspire+ needs the keyboard to be removed.

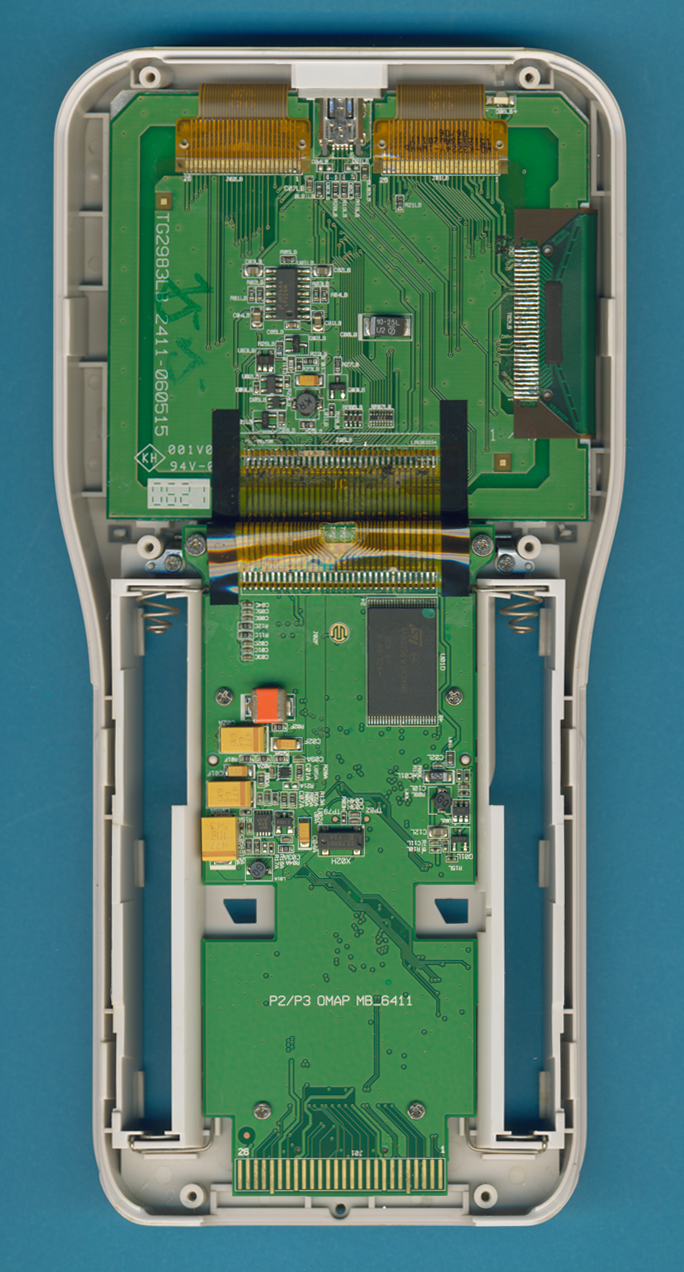

The internal construction of the TI-Nspire+ makes use of just 2 printed circuit boards (PCBs),
one for the gray-scale LC-Display and power supply and another one for the computing unit.

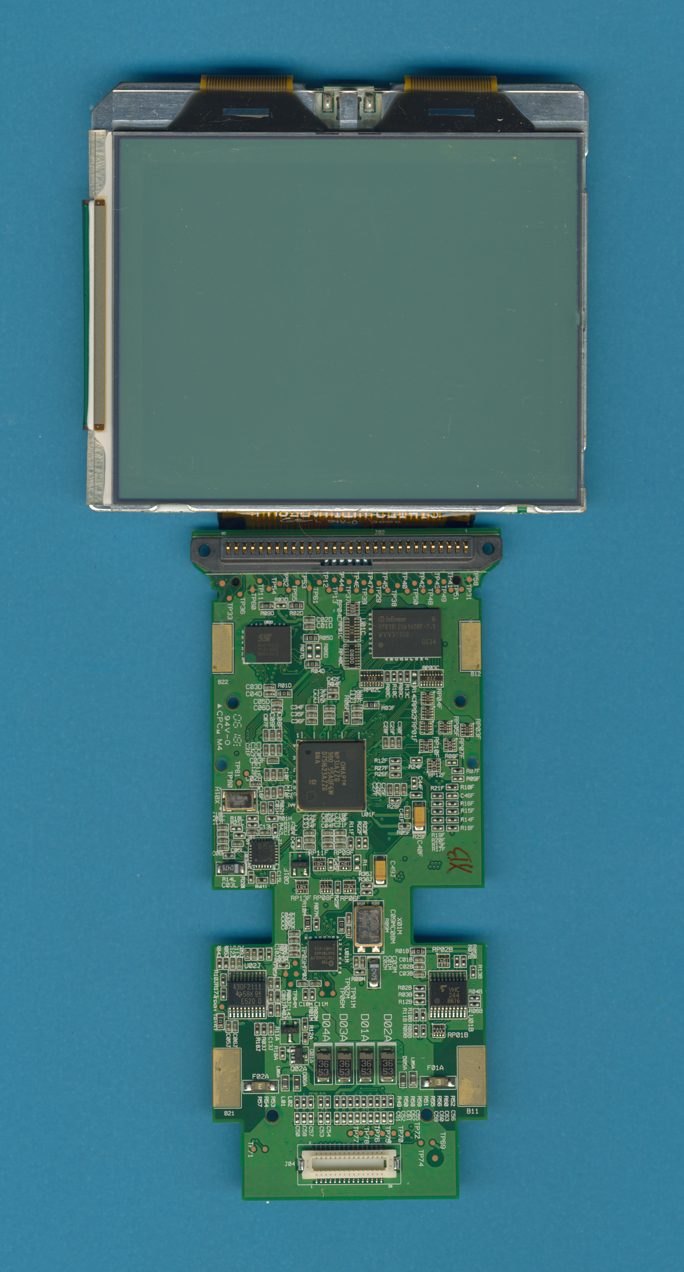

The frontside of the PCBs reveal the construction of the 240 * 320 pixel gray-scale
LC-Display, the TI-OMAP and a total of three different memory chips.

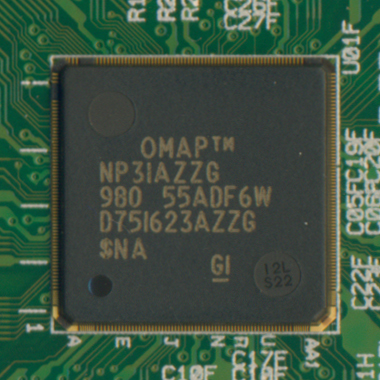

The brain of the TI-Nspire+ prototype is actually a System-on-Chip based on the OMAP architecture from
Texas Instruments. We assume that the tiny housing hosts a 78 MHz ARM9 32-bit RISC processor.

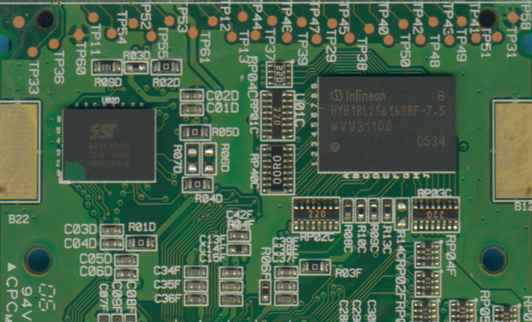

The TI-Nspire+ uses three different memory chips, a 256k*16 NOR Flash-ROM, 32M Bytes NAND Flash-ROM,
and 16M*16 SDRAM. The clock frequency of the SoC is 12 MHz.


Additional Zoom-Images - NOR Flash-ROM:

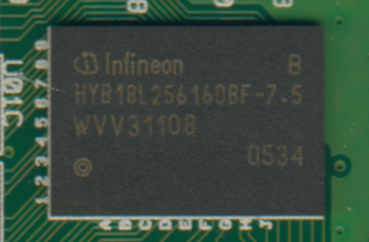

Additional Zoom-Images - SDRAM:

Additional Zoom-Images - NAND Flash-ROM:

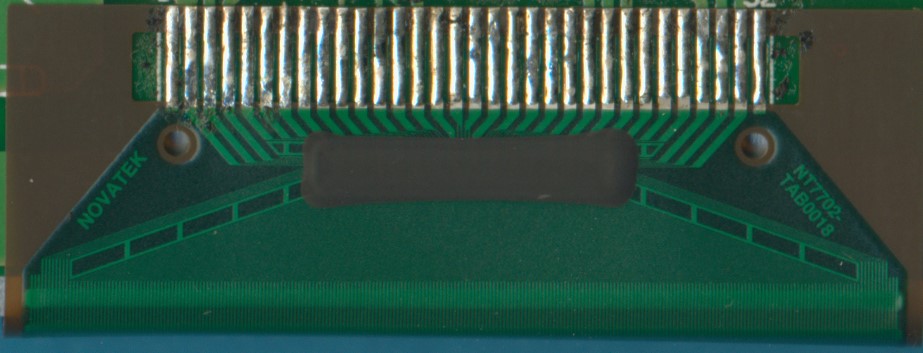

The 320 * 240 pixel gray-scale LC-Display needs a total of three drivers.
We located this Novatek NT7702 row-driver and two unidentified column-drivers.

horizontal rule

If you have additions to the above article please email:

Joerg Woerner, August 26, 2018. No reprints without written permission.
