Additional Pictures



This TI-Nspire CX EZ-Spot was manufactured in December 2014 by
Inventec Corporation in China (Date code P-1214T » mth 12 yr 2014).

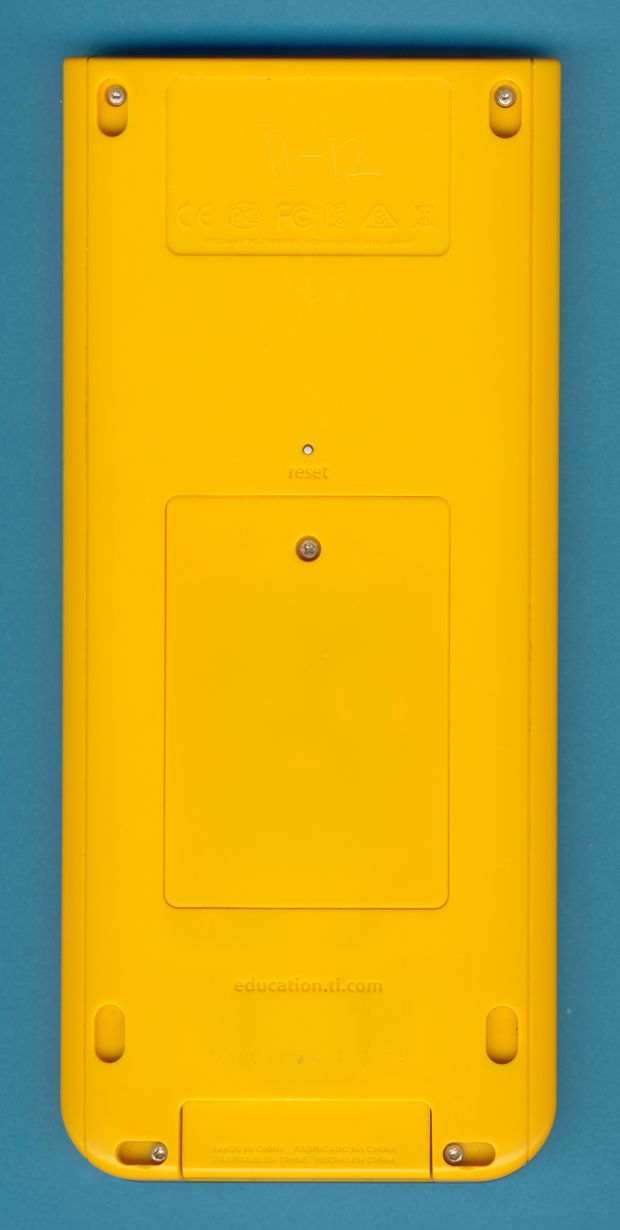

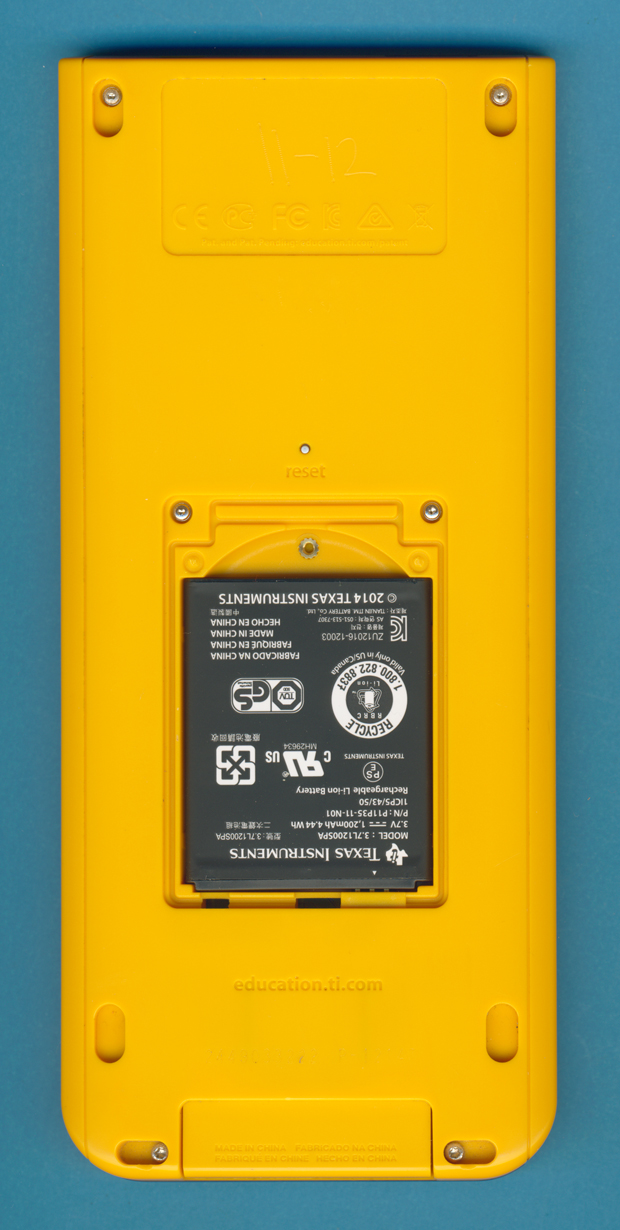

The backside of the TI-Nspire CX EZ-Spot features a
cover to access the rechargeable battery.

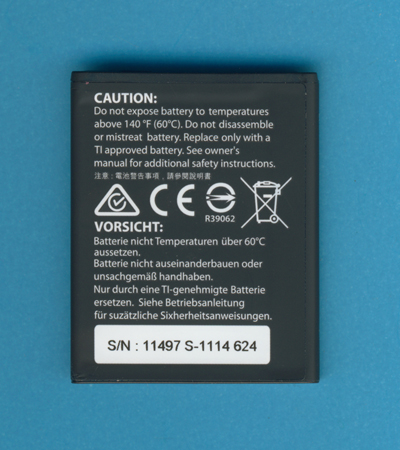

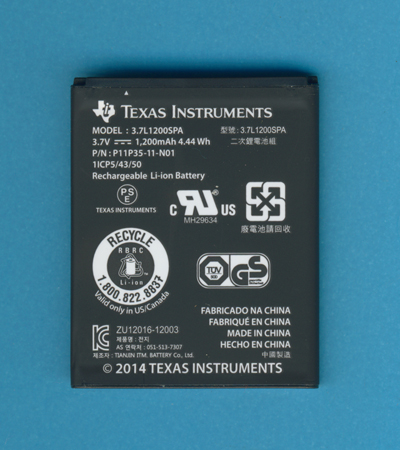

The Li-ion battery of the TI-Nspire CX EZ-Spot.

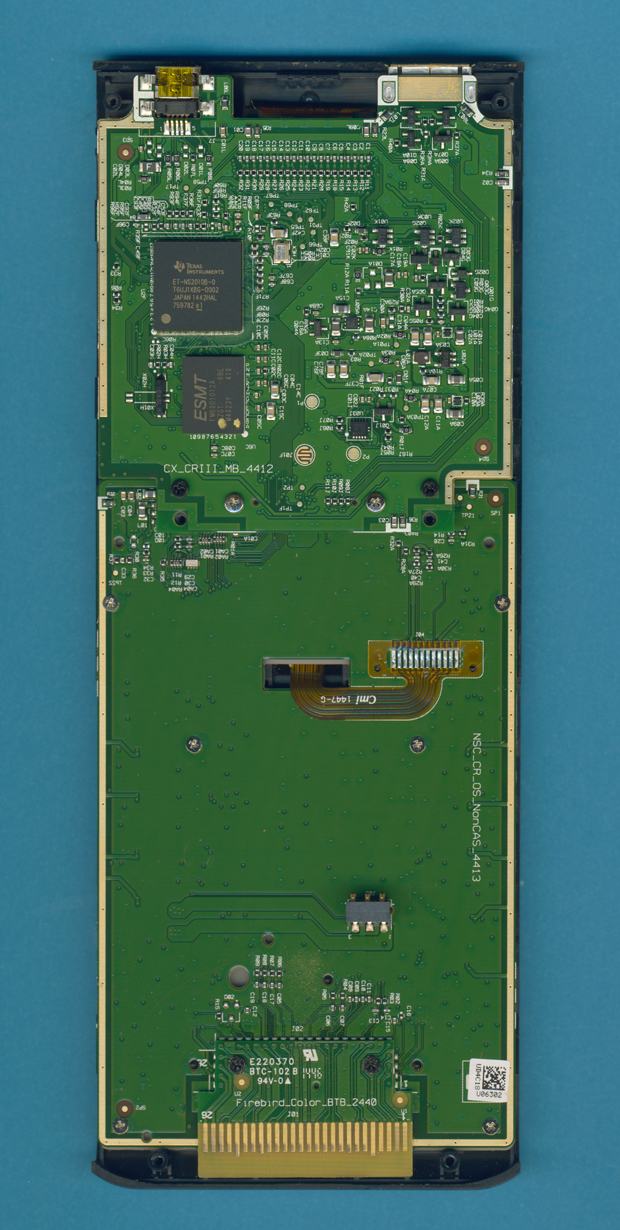

The internal construction of the TI-Nspire CX EZ-Spot makes use of just two printed circuit boards (PCBs),
 one for the computing unit, color LC-Display and power supply and one for the keyboard.

The main PCB is connected to the color LC-Display.

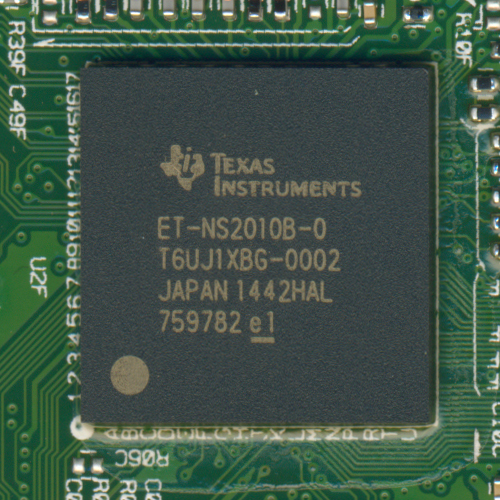

The brain of the TI-Nspire CX EZ-Spot is actually a System-on-Chip based on Toshiba's ASIC technology.

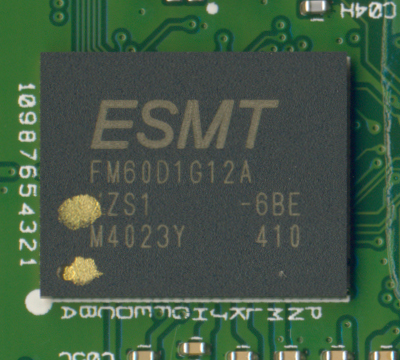

The memory of the TI-Nspire CX EZ-Spot is composed of a Multichip Package
with both the Flash-ROM and SDRAM combined.
