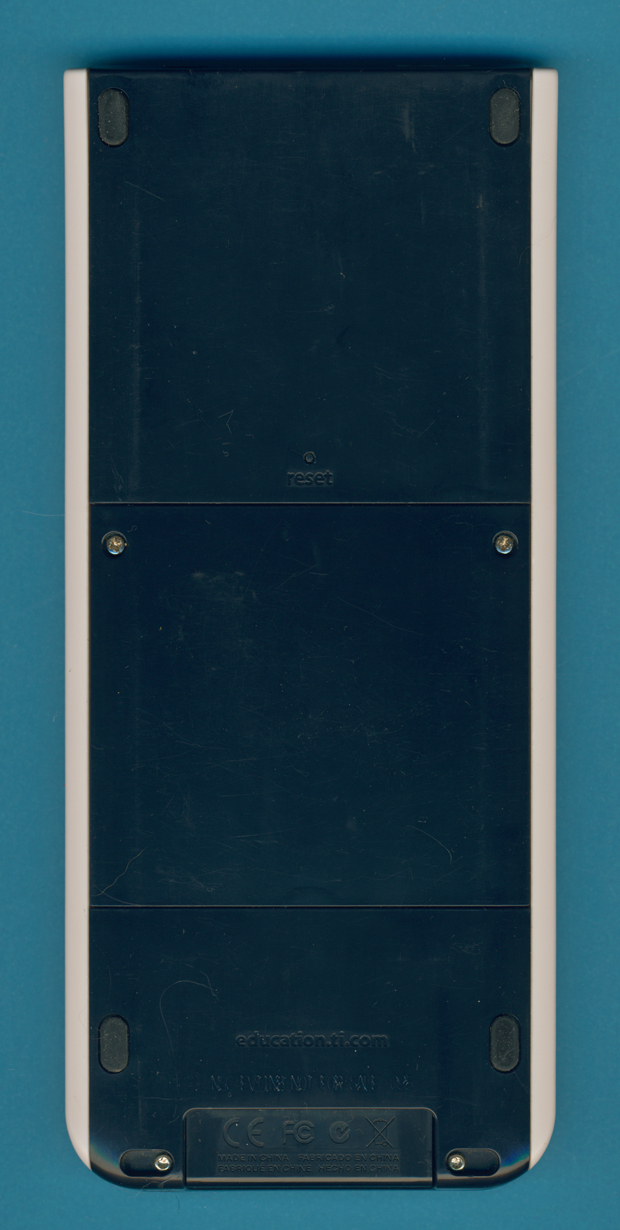

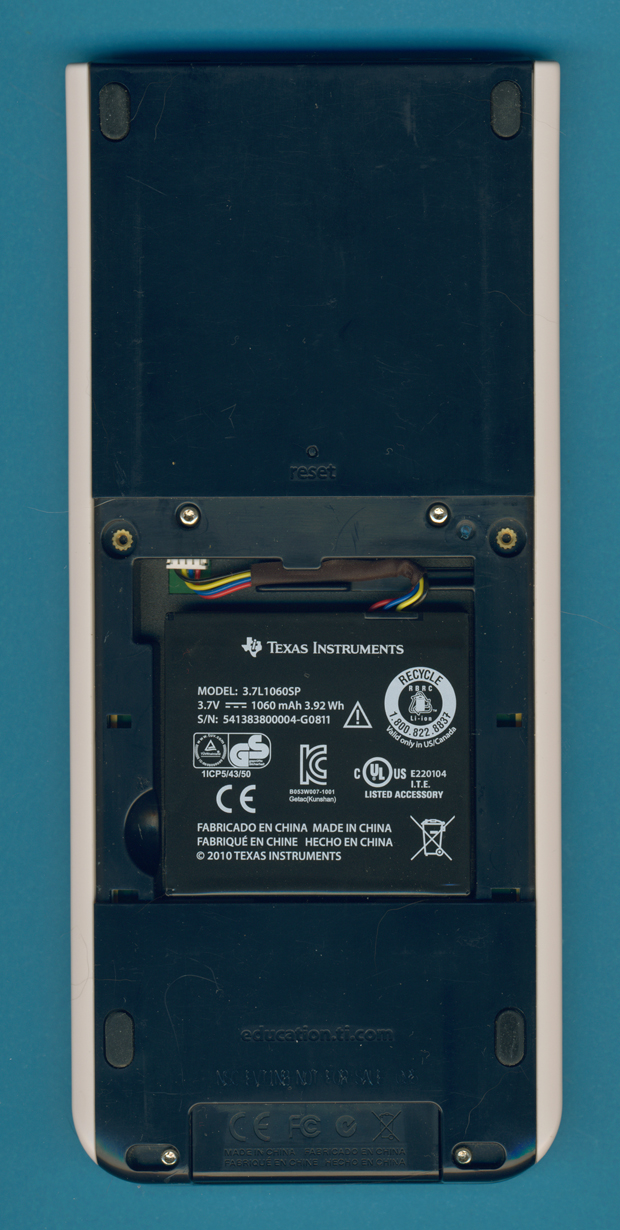

This TI-Nspire COLOR Prototype was manufactured in 2010 China.	The backside of the TI-Nspire COLOR features a cover to access the rechargeable battery.
The internal construction of the TI-Nspire COLOR makes use of just two printed circuit boards (PCBs), one for the computing unit, color LC-Display and power supply and one for the keyboard.

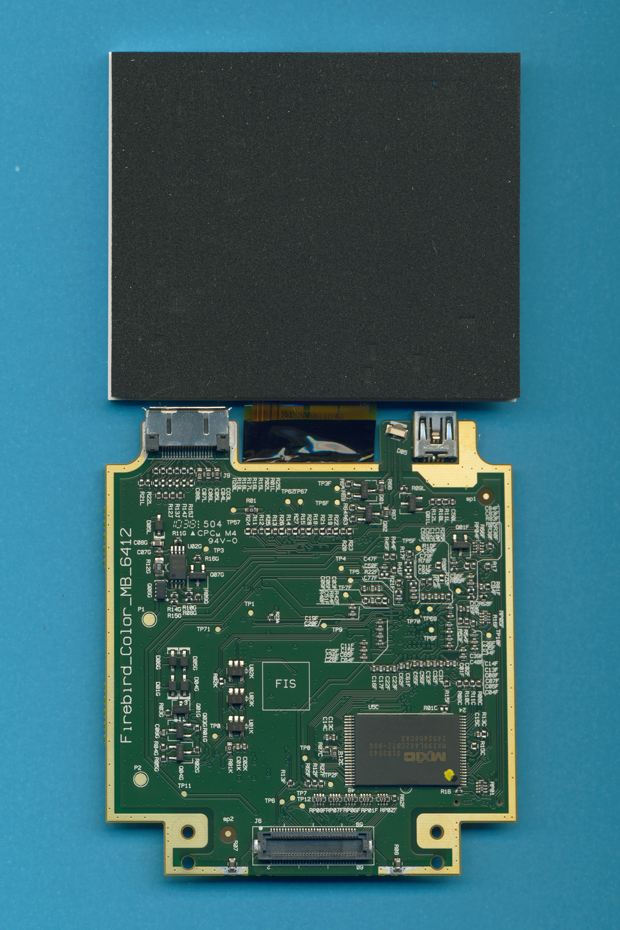

The main PCB is connected to the color LC-Display.

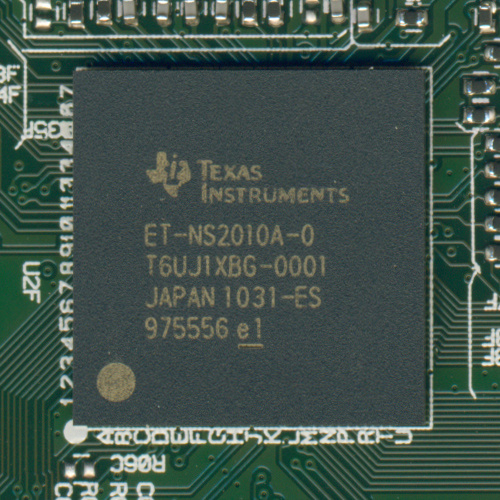

The brain of the TI-Nspire COLOR is actually a System-on-Chip based on Toshiba's ASIC technology.

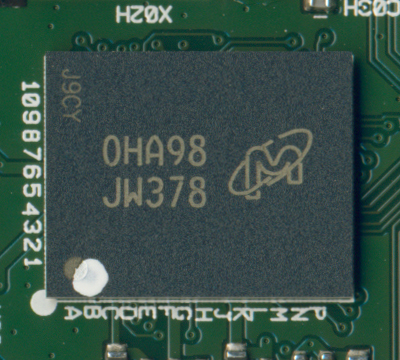

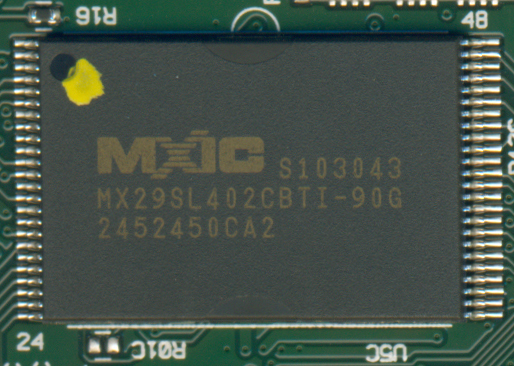

The memory of the TI-Nspire COLOR is composed of a Multichip Package with both the Flash-ROM and SDRAM combined.	On the backside of the PCB we located this Macronix MX29SL402 Flash-ROM with 4M Bit capacity.
