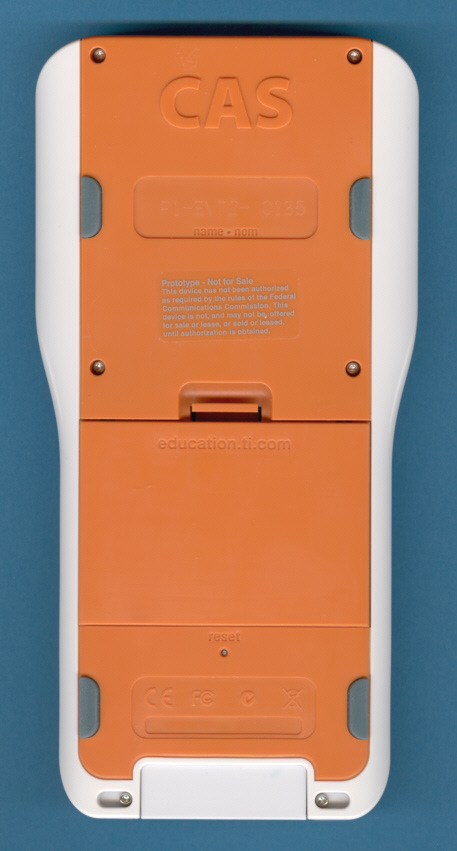

The backside of the early TI-Nspire CAS+ prototype looks similar to the released product but sports a strange color.

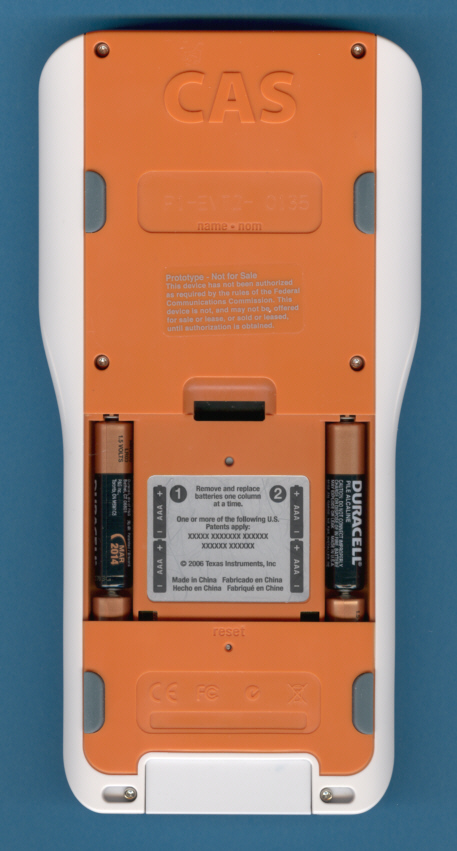

The 4 AAA-sized batteries of the TI-Nspire CAS+ prototype
are accessible from the backside of the calculator.

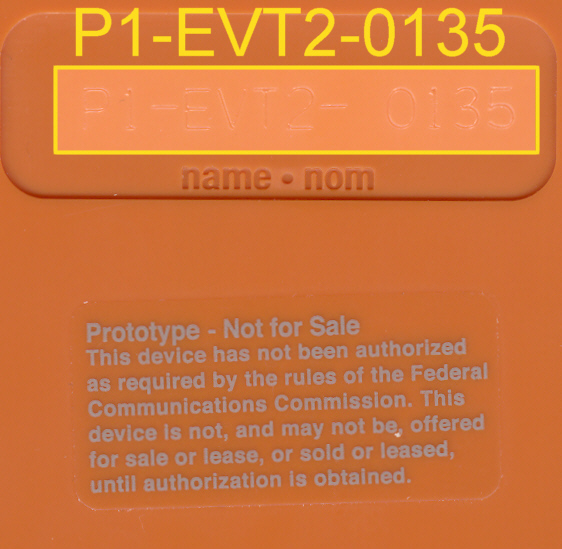

 We learned how to read the label of this early TI-Nspire CAS+ protoype:
Engineering Validation Test, Second Series, Serial #135.

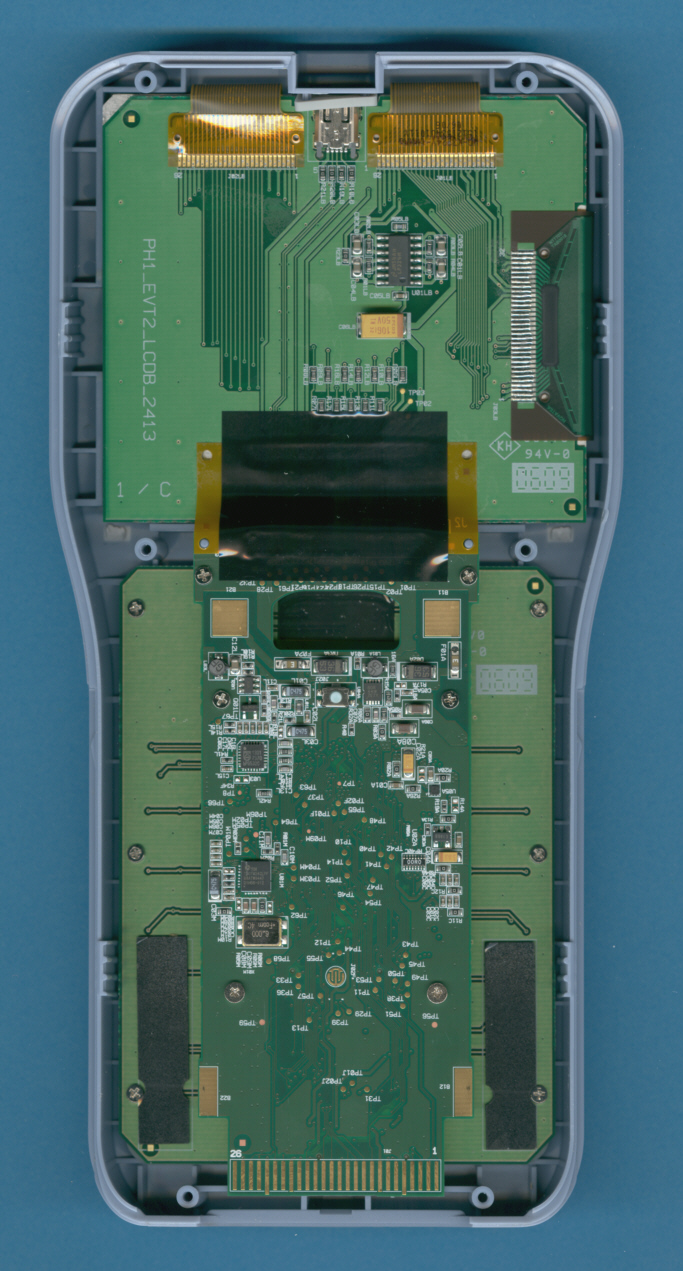

The internal construction of the TI-Nspire CAS+ makes use of just 3 printed circuit boards (PCBs),
one for the gray-scale LC-Display and power supply, one for the computing unit and the keyboard.

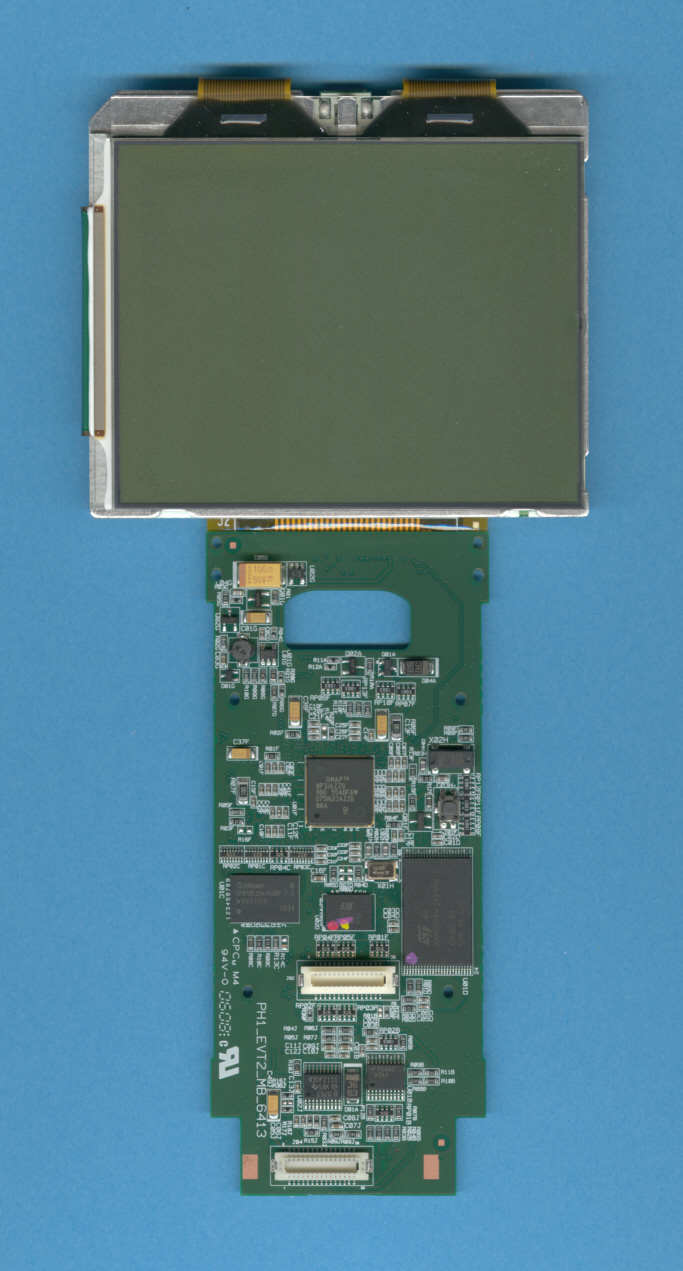

The frontside of the PCBs reveal the construction of the 240 * 320 pixel gray-scale
LC-Display, the TI-OMAP and a total of three different memory chips.

The brain of the TI-Nspire CAS+ prototype is actually a System-on-Chip based on the OMAP architecture from
Texas Instruments. We assume that the tiny housing hosts a 78 MHz ARM9 32-bit RISC processor.

The TI-Nspire CAS+ uses three different memory chips, a 256k*16 NOR Flash-ROM, 32M Bytes NAND Flash-ROM,
and 16M*16 SDRAM. The clock frequency of the SoC is 12 MHz.

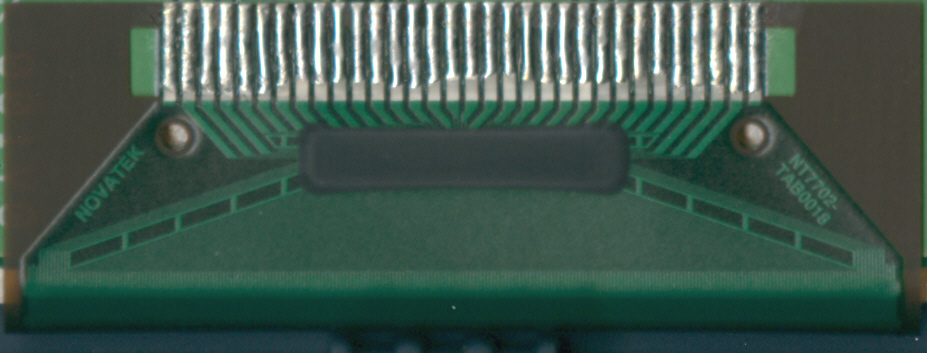

The 320 * 240 pixel gray-scale LC-Display needs a total of three drivers.
We located this Novatek NT7702 row-driver.
