Additional Pictures

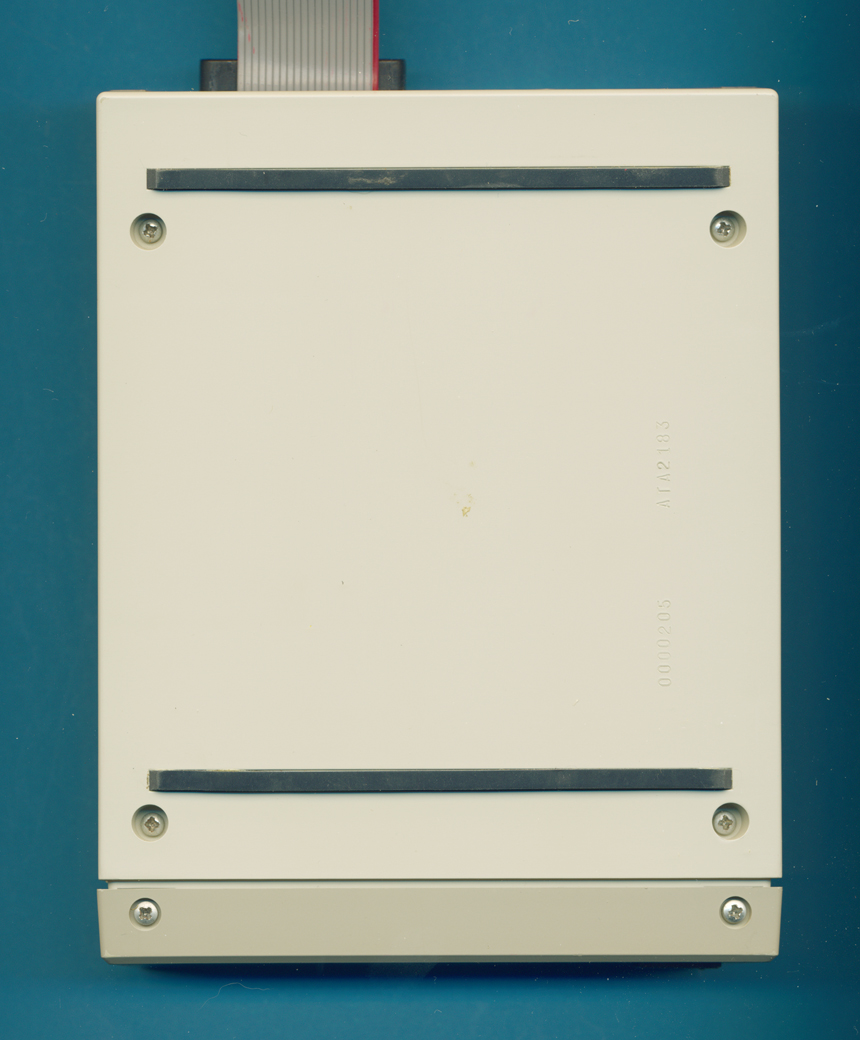

This HX-3000/T RS-232 Interface with Parallel Interface for the CC-40 was manufactured in May 1983 by
Texas Instruments in Abilene, TX (Date code ATA 2183 » wk 21 yr 1983).

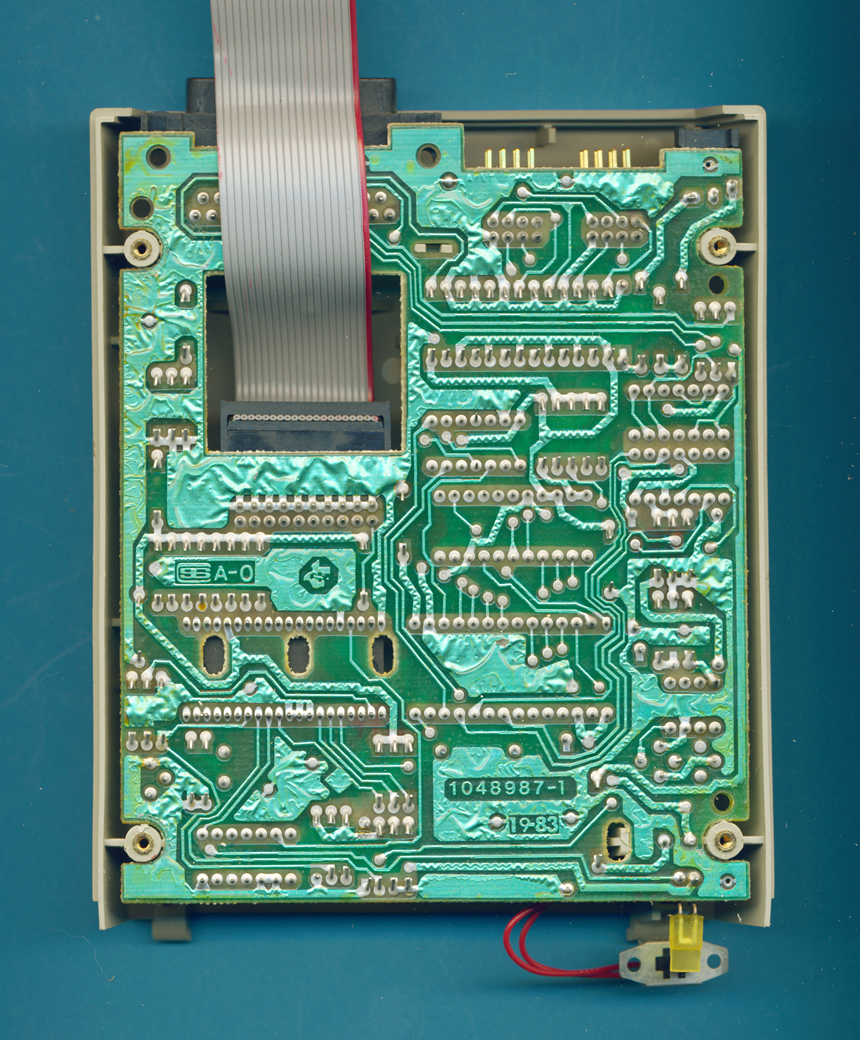

The bottom shell of the housing of the HX-3000/T RS-232 Interface with Parallel Interface removed.

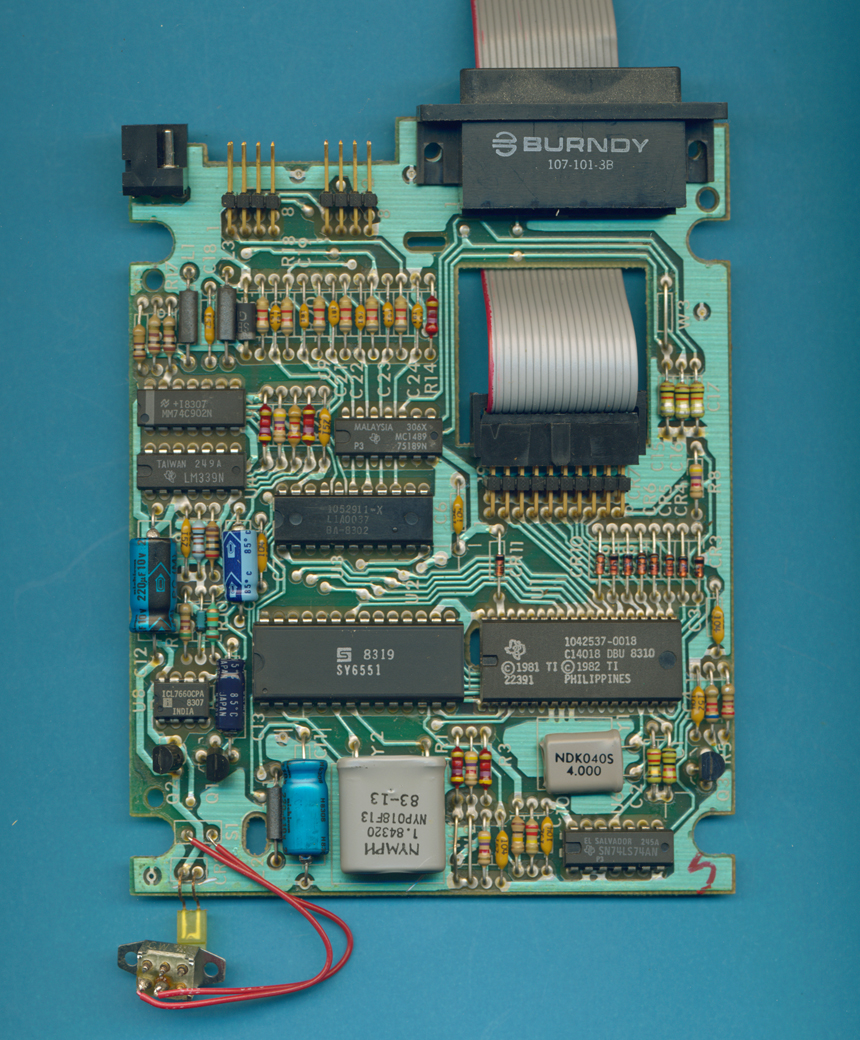

The printed circuit board (PCB) of the HX-3000/T RS-232 Interface with Parallel Interface.

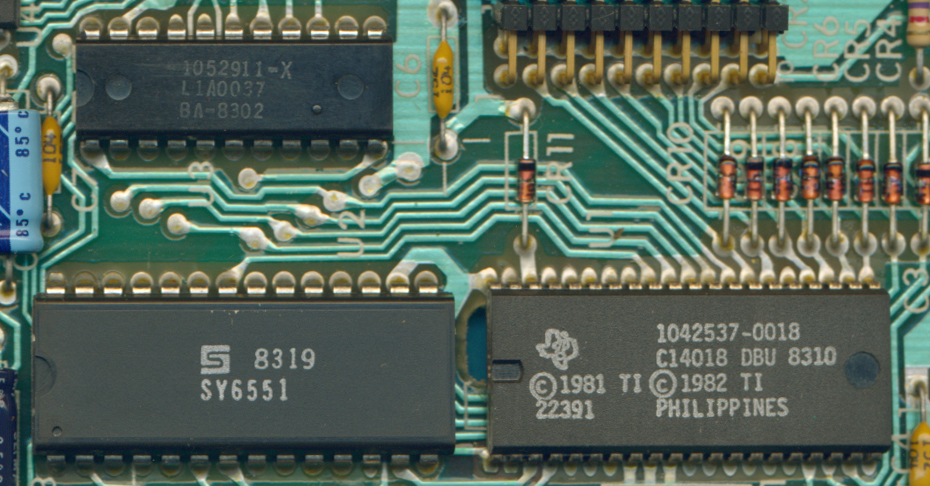

Close-up view of the main components of the HX-3000/T RS-232 Interface with Parallel Interfacee.
