Additional Pictures

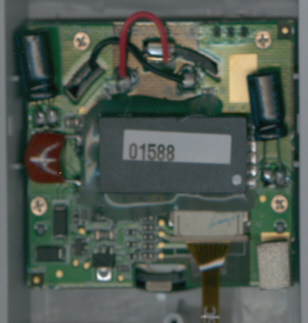

| The
Sensitivity switch is hidden under the sonic
transducer.
|
The sonic transducer is
located under the black component in the middle of the small PCB.
|

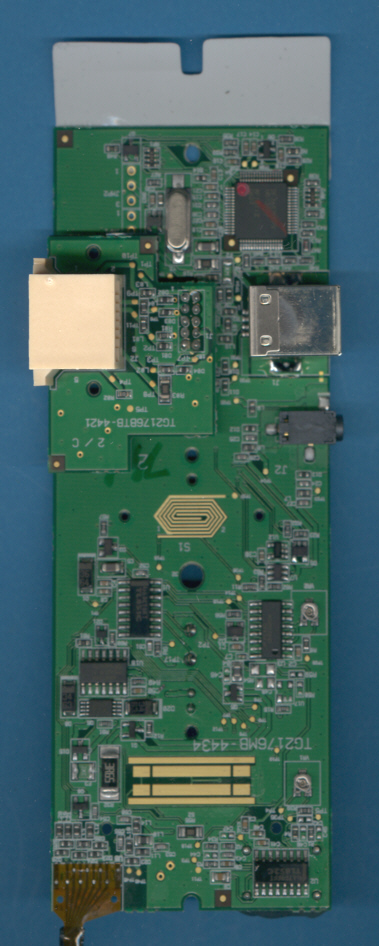

| The main PCB of the
CBR 2 system with a powerful H8/3297 microcontroller.
|
