Additional Pictures



A cradle could be mounted on top of the CBL 2 system and it
becomes one compact unit with the Graphing calculator.
The CBL 2 system connected with the link
cable to a TI-83 Plus graphing calculator.

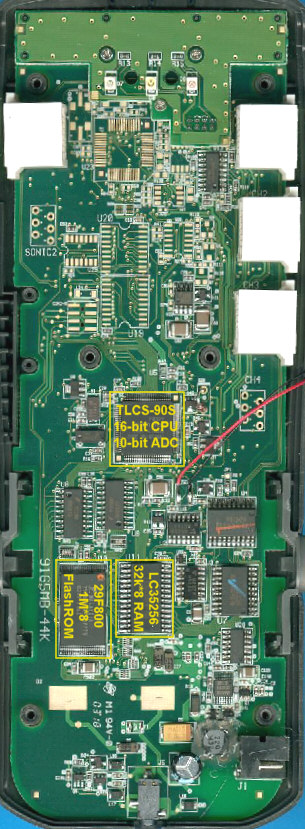

The PCB of the CBL 2 holds a Toshiba TMP91CW12F
microcontroller with fast 10-bit AD-converters,
 a 32k Bytes RAM and 1M Byte of Flash memory.
