| This WIZ-A-TRON was manufactured
in December 1978 by Texas Instruments in Midland, TX (Date code 4978 MTA »week 49 year 1978).
|

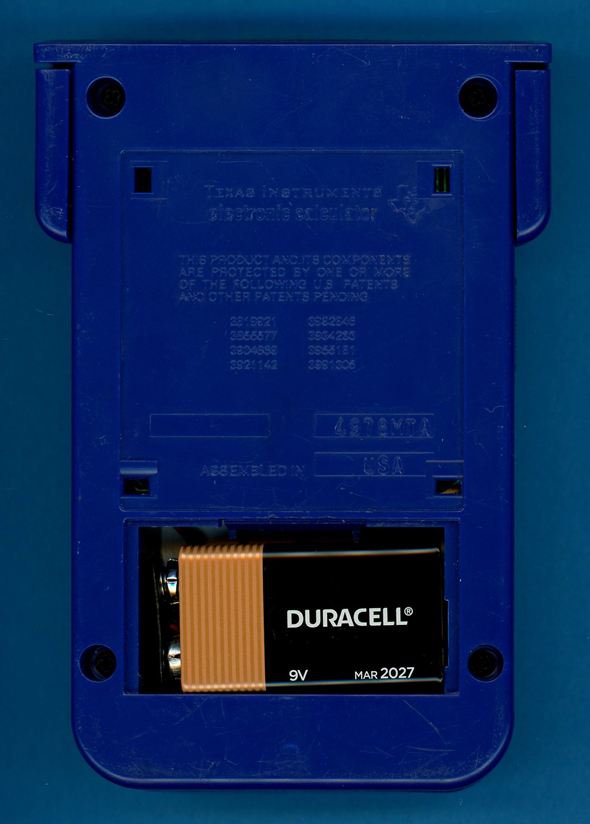

The WIZ-A-TRON is powered
by a 9V battery. |

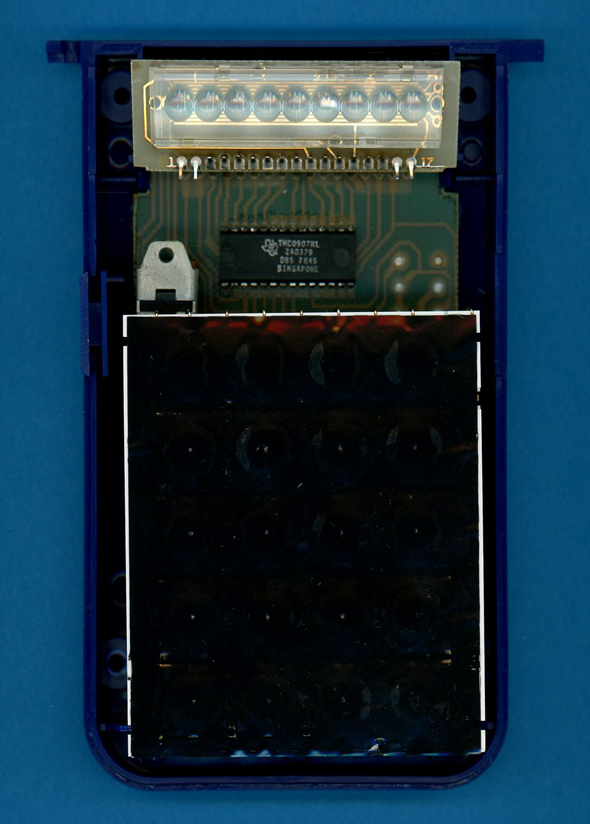

The WIZ-A-TRON with
the front part of its housing removed. |

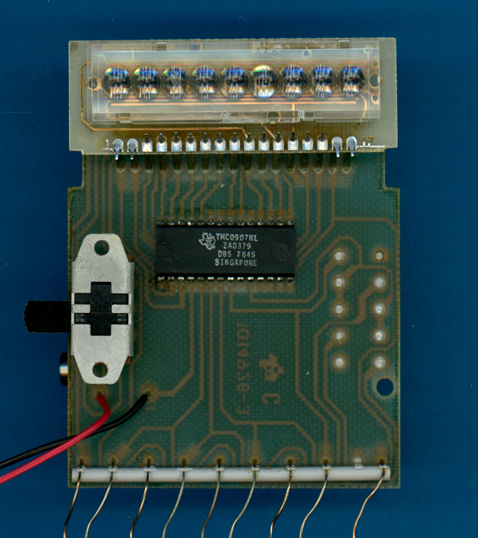

| The printed circuit board
(PCB) of the WIZ-A-TRON is centered around a TMC0907 single-chip calculator circuit.
|

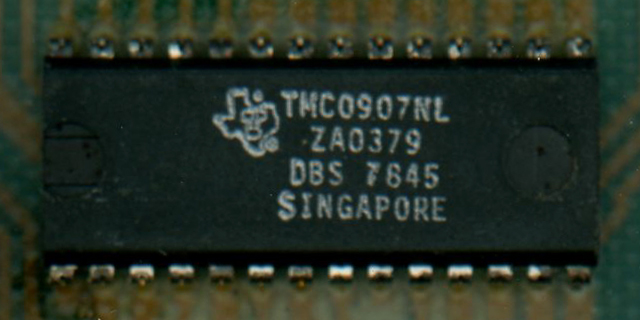

| Close-up view of
a
TMC0907 packaged in a 28-pin SPDIP (Shrink Plastic Dual In-line Package).  |
