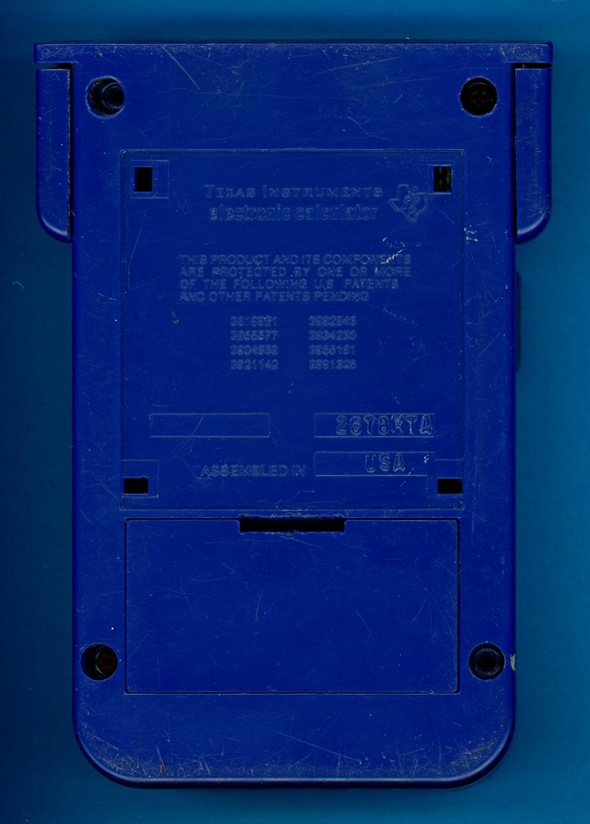

This WIZ-A-TRON was manufactured in June 1978 by
Texas Instruments in Midland, TX (Date code 2678 MTA »week 26 year 1978).

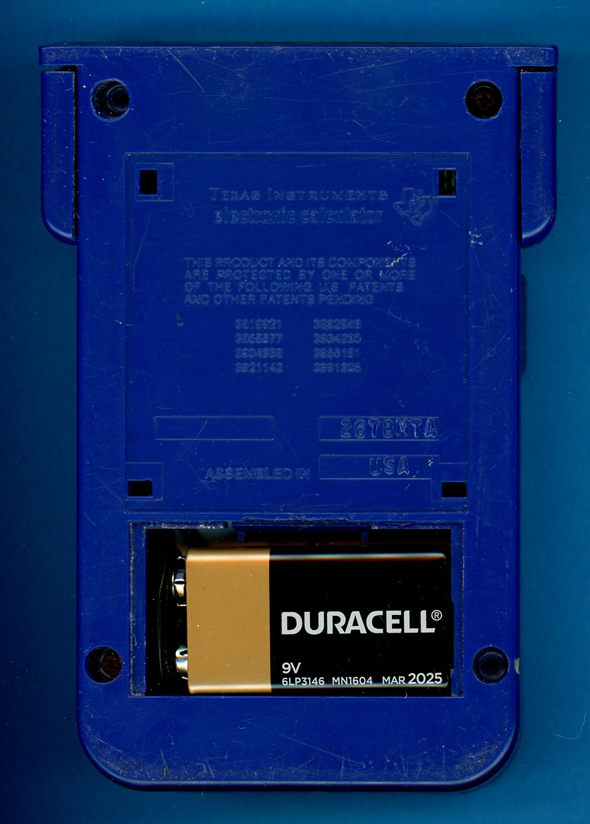

The WIZ-A-TRON is powered by a 9V battery.

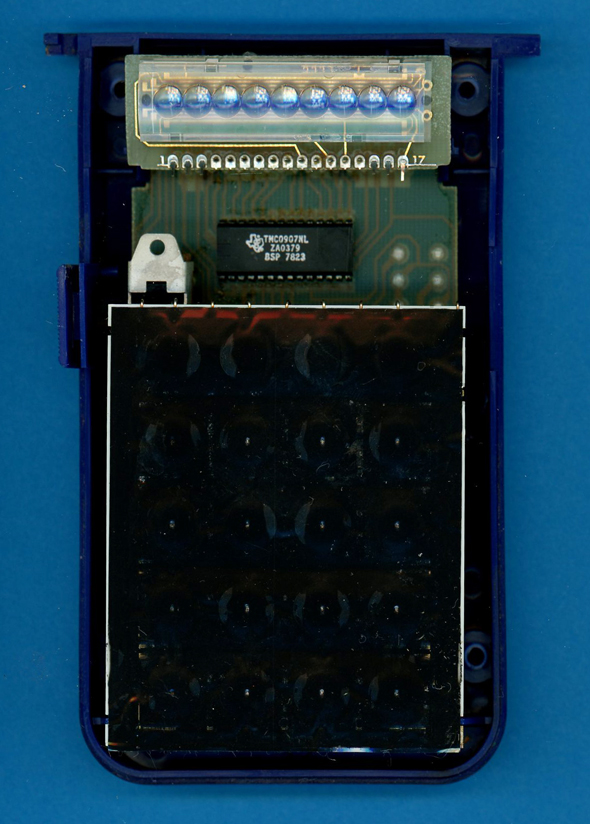

 The WIZ-A-TRON with the front part of its housing removed.

The printed circuit board (PCB) of the WIZ-A-TRON
is centered around a TMC0907 single-chip calculator circuit.

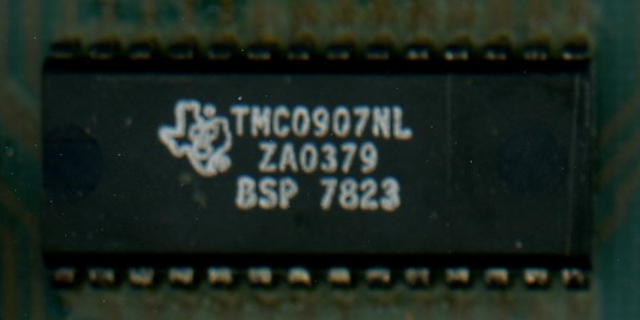

Close-up view of a TMC0907 packaged in a
28-pin SPDIP (Shrink Plastic Dual In-line Package).
