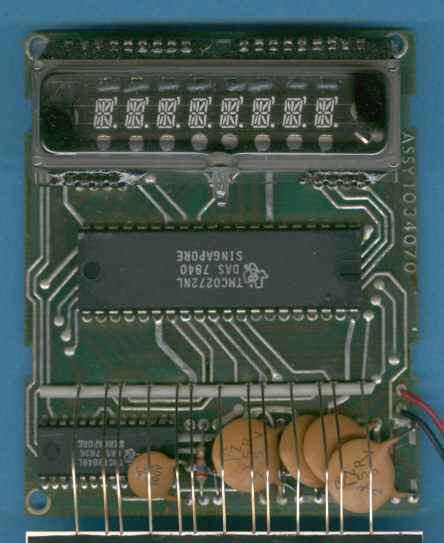

| The printed circuit board
(PCB) of the original Spelling B makes use of the TMC0272 single chip microcomputer and an external TMC1984. Probably a TMS1000 microcomputer.
|

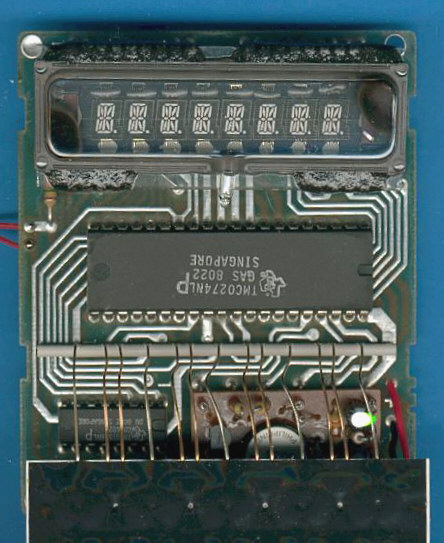

The PCB of a later
Spelling B makes use of the TMC0274 single chip microcomputer and an external TMC0355 128kBit "Speech-ROM". The buzzer is connected at the left.
|
|
|

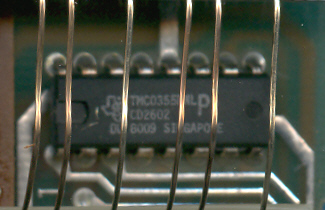

A closeup picture of the
TMC0355 (CD2602) ROM.
|

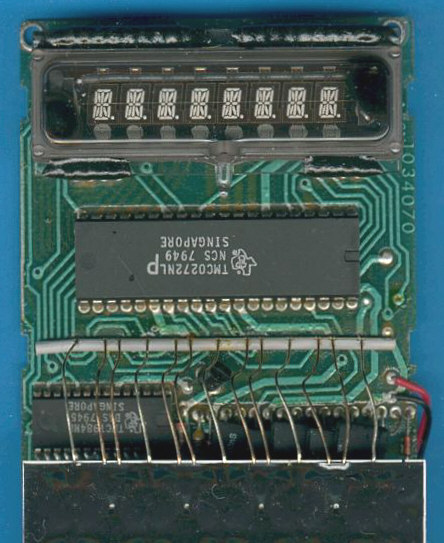

| The printed circuit board of the
early Spelling B sold in UK is identical with the original "US" Spelling B. It misses the buzzer, too.
|

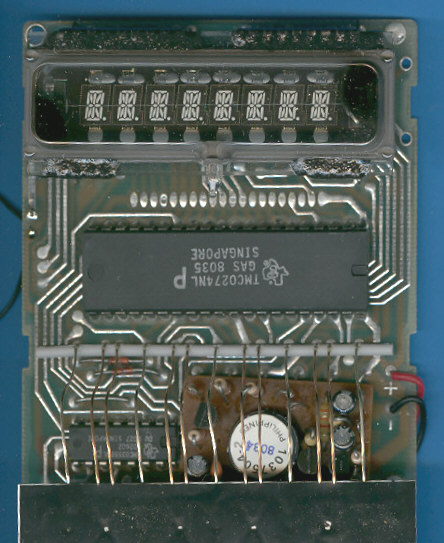

This Spelling ABC sold in UK makes again use the TMC0274 single chip microcomputer and an external TMC0355 (CD2602) 128kBit "Speech-ROM".
|
| `
|

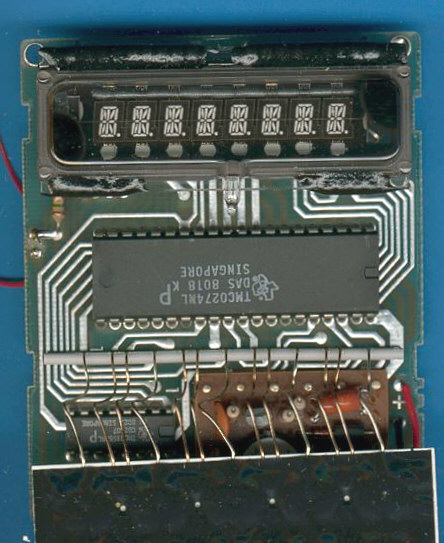

The printed circuit board of the
German Spelling ABC is identical but uses another code in the external TMC0355 (CD2607) 128kBit "Speech-ROM".
|
