Additional Pictures

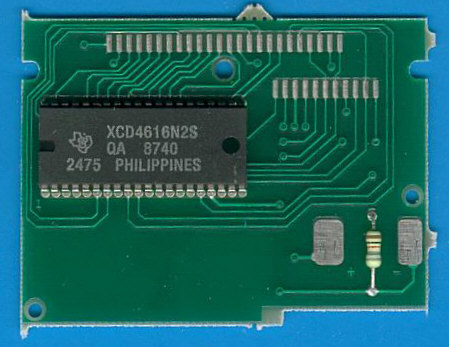

The CD4616 single-chip calculator circuit of the Pitagora educational toy.
The two row-connectors adopt the display and keyboard.
