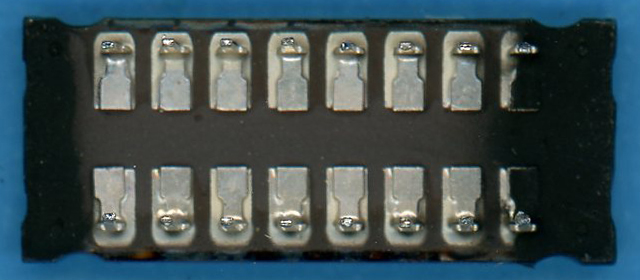

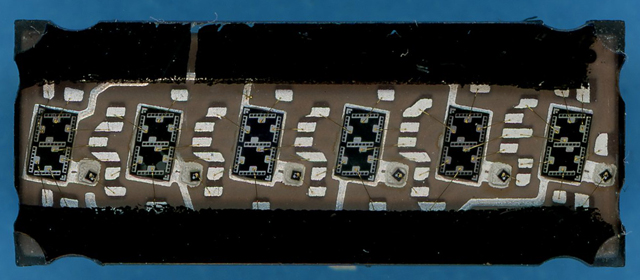

Close-up view of the TIL360 Multi-Digit Calculator LED Display.
Chip-on-Substrate Technology, 16-pin Package. 6 Digits, Common Cathode, 0.1" Character Height.

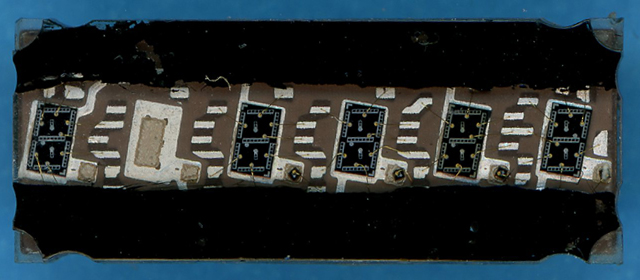

Close-up view of the DIS40 Multi-Digit Calculator LED Display.
Chip-on Substrate Technology, 16-pin Package. 5 Digits, Common Cathode, 0.1" Character Height.

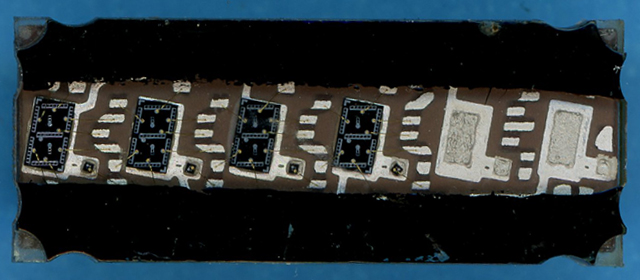

Close-up view of the DIS95 Multi-Digit Calculator LED Display.
Chip-on Substrate Technology, 16-pin Package. 4 Digits, Common Cathode, 0.1" Character Height.

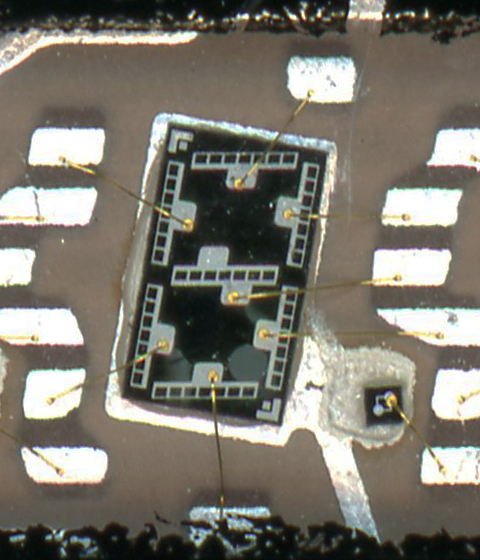

Close-up view of one character of the TIL360 Multi-Digit Calculator LED Display.
Chip-on-Substrate Technology, 16-pin Package. 6 Digits, Common Cathode, 0.1" Character Height.
