Additional Pictures

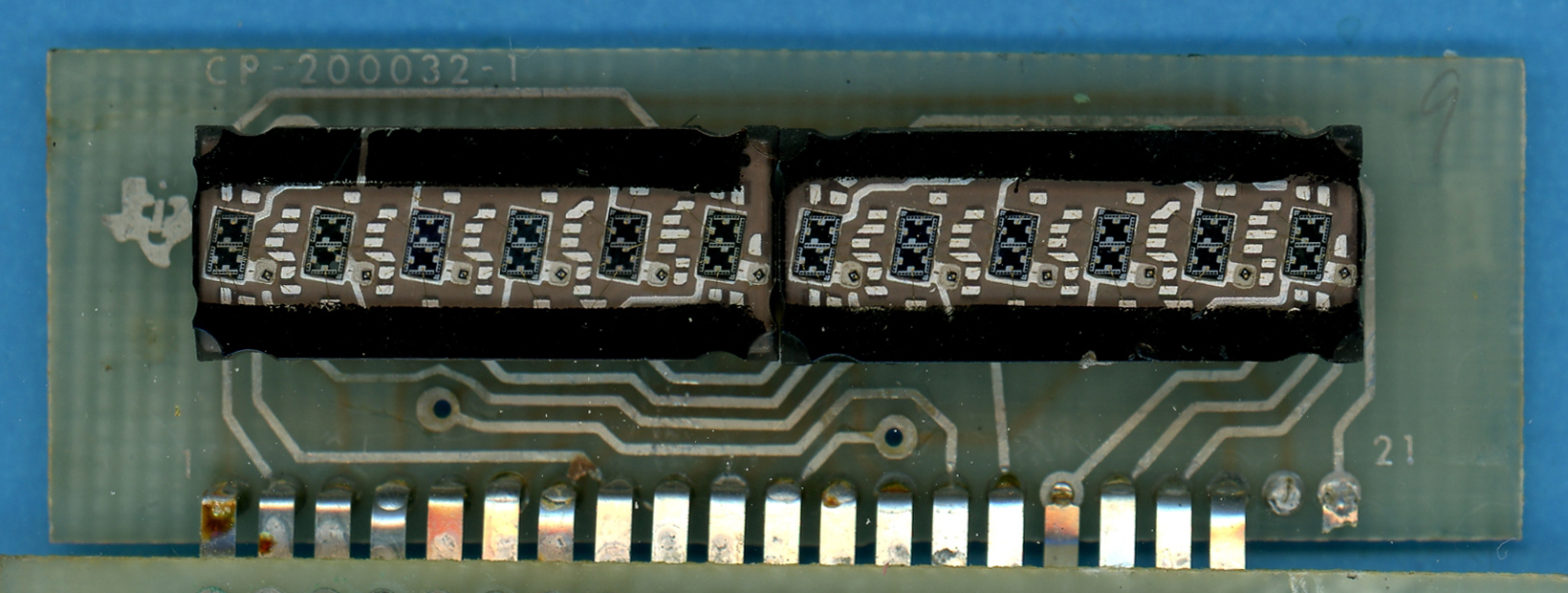

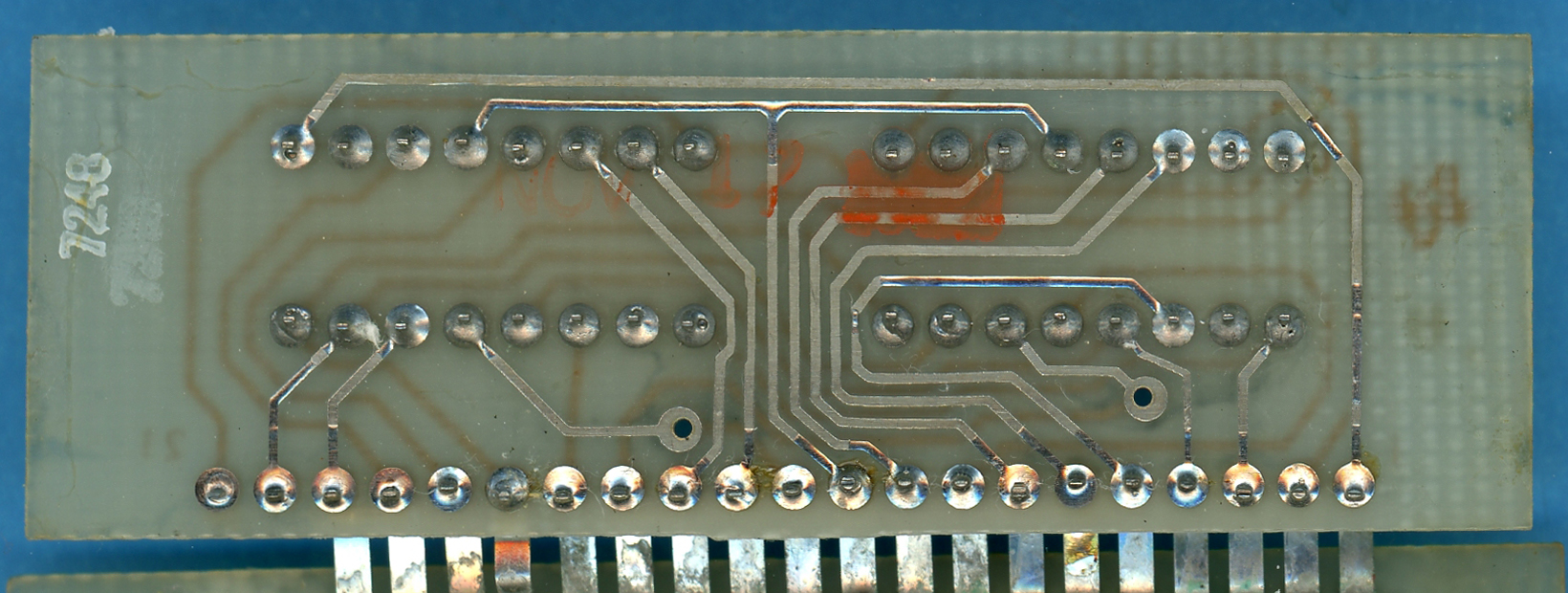

Close-up view of the CP-200032 Twelve-Digit Calculator Numeric Seven-Segment LED Display.
PCB Technology, 21-pin Package. 12 Digits, Common Cathode, 0.1" Character Height.
Close-up view of one TIL360 Multi-Digit Seven-Segment LED Display.
Chip-on-Substrate Technology, 16-pin Package. 6 Digits, Common Cathode, 0.1" Character Height.
