Texas Instruments TI-5130

Date of introduction:  1985 Display technology:  Fluorescent
New price:   Display size:  10
Size:  9.3" x 8.3" x 2.0"
 236 x 210 x 52 mm3
Printer technology:  Impact
Weight:  2 pounds 8 ounces
 1132 grams
Serial No:  521658
Batteries:   Date of manufacture:  mth 12 year 1985
AC-Adapter:  120 V Origin of manufacture:  Japan (T)
Precision:  10 Integrated circuits:  NEC uPD1234G
Memories:  1 + 1
Program steps:   Courtesy of:  Joerg Woerner

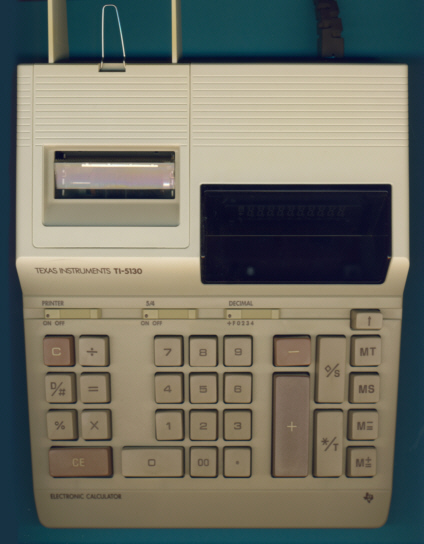

This "brown" TI-5130 is identical to the "office grey" TI-5130 introduced two years earlier. It matches perfectly its sibbling TI-5140 sporting a 12-digit display.

TI-5130_T1285_INT.jpg (272245 Byte)Dismantling this TI-5130 manufactured in December 1985 reveals a design almost identical with the TI-5140.

TI-5130_T1285_PCB.jpg (151240 Byte)The main differences are the NEC uPD1234G single-chip calculator circuit and the 10-digit display compared to the uPD1231G chip driving a 12-digit display.

TI-5130_T1285_LBL.jpg (41830 Byte)Since we deciphered the product label of the TI-5310 matching the UL-File number E42662 with a identification code 694B, we know with Toshiba TEC Corp. the manufacturer of this calculator, too.

Don't miss the database of all known UL-File numbers found on Texas Instruments calculators.

Texas Instruments introduced already in 1986 with the TI-5130 II the successor of the TI-5130 with a completely different design language.
