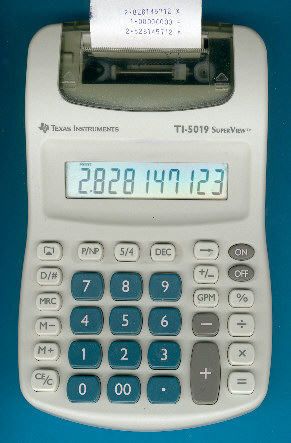

Texas Instruments TI-5019 SV

Date of introduction:  1998 Display technology:  LCD
New price:   Display size:  10
Size:  8.1" x 5.3" x 1.9"
 205 x 135 x 48 mm3
Printer technology:  Impact
Weight:  12.1 ounces
 345 grams
Serial No:  132693
Batteries:  4*AA (250mA) Date of manufacture:  mth 10 year 1999
AC-Adapter:  AC9250 Origin of manufacture:  China
Precision:  10 Integrated circuits:  Toshiba TC83230-0024
Memories:  1 + 1
Program steps:   Courtesy of:  Joerg Woerner

The TI-5019 SuperView is similar to the €-2004 but misses the Euro conversion feature. You get:

bulletExtra-large, 10-digit, SuperView LCD display. bulletReliable, 1-color serial impact printer. bulletSturdy, built-in, one-piece metal paper arm. bulletAC/DC powered, adapter included.

TI-5019SV_PCB.jpg (71492 Byte)The internal construction of the TI-5019 SV is simple and clean. It looks similiar to the TI-5006 introduced already in 1992. Please notice the main printed circuit board (PCB) using just wires instead of traces on the top side.

TI-5019SV_IC.jpg (126474 Byte)The bottom side of the main PCB carries the Toshiba T83230-0024 single-chip calculator circuit.
