DATAMATH  CALCULATOR  MUSEUM

Texas Instruments TI-7350

Date of introduction:  1996 Display technology:  LCD
New price:   Display size:  8
Size:  4.9" x 4.2" x 1.0"
 125 x 106 x 25 mm3
Weight:  3.0 ounces, 84 grams Serial No:
Batteries:  n.a. Date of manufacture:
AC-Adapter:   Origin of manufacture:  China
Precision:  8 Integrated circuits:
Memories:  1
Program steps:   Courtesy of:  Joerg Woerner

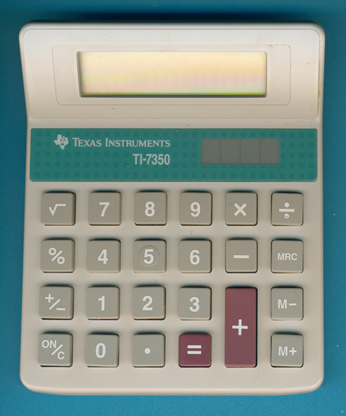

This TI-7350 is a rather interesting calculator in the otherwise boring TI-1795 calculator line started already in 1984. It was introduced in 1996 and manufactured in China with the latest Chip-on-Board (COB) technology, but still uses the more rectangular housing of the TI-1795+ introduced in 1992.

 Dismantling this TI-7350 reveals not only the above mentioned COB technology but even the TI-1795SV designation, a product name we encountered in the year 2000.

The calculator was replaced in 1999 with the TI-7350SV sporting a completely different housing.






horizontal rule

If you have additions to the above article please email: joerg@datamath.org.
