Additional Pictures



The printed circuit board (PCB) of the TI-608 is centered around
an unknown single-chip calculator circuit.

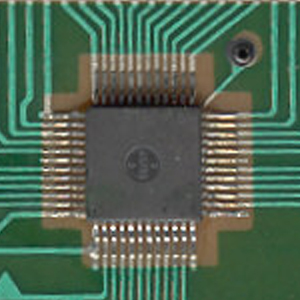

Close-up view of the unknown single-chip calculator circuit.

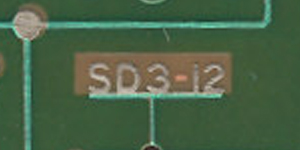

 Close-up view of the PCB-Mark of a TI-608.
