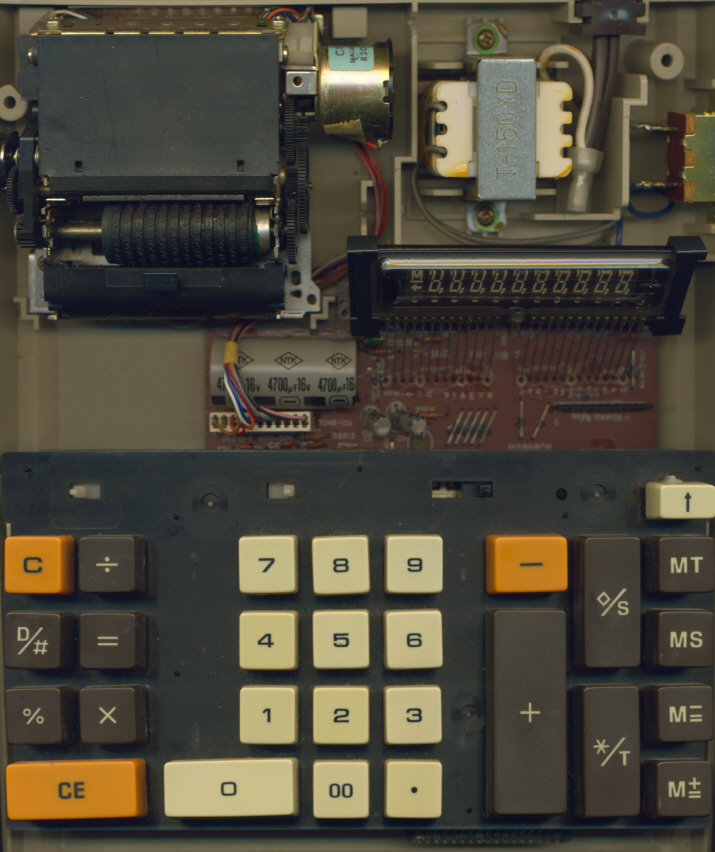

The internal construction of the TI-5130 makes use of a keyboard assembly,
printed circuit board (PCB) with the display, printer assembly and power supply.

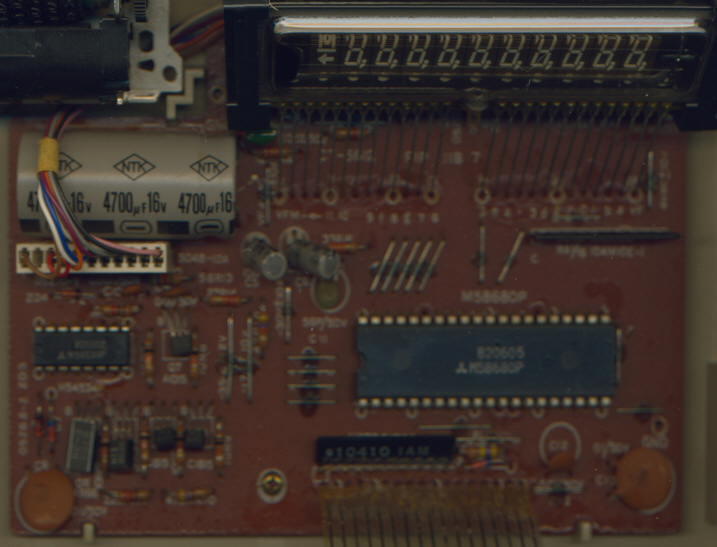

 The printed circuit board (PCB) of the first generation TI-5130 is centered
around a Mitsubishi M58680P
single-chip calculator circuit.

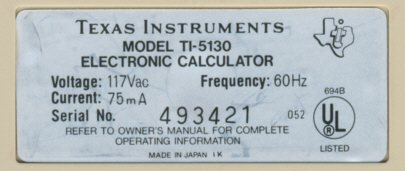

The UL-Logo of the TI-5130 reveals its genes.
