Additional Pictures

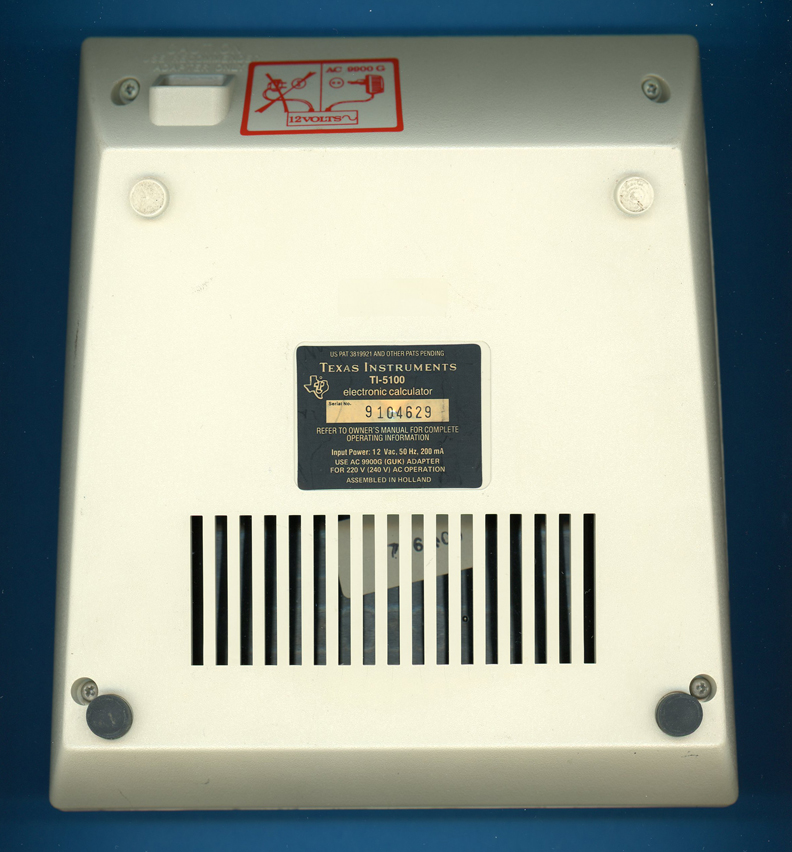

This TI-5100 was manufactured in April 1976 by
Texas Instruments in The Netherlands (Date code ACH 1776 » wk 17 yr 1976).

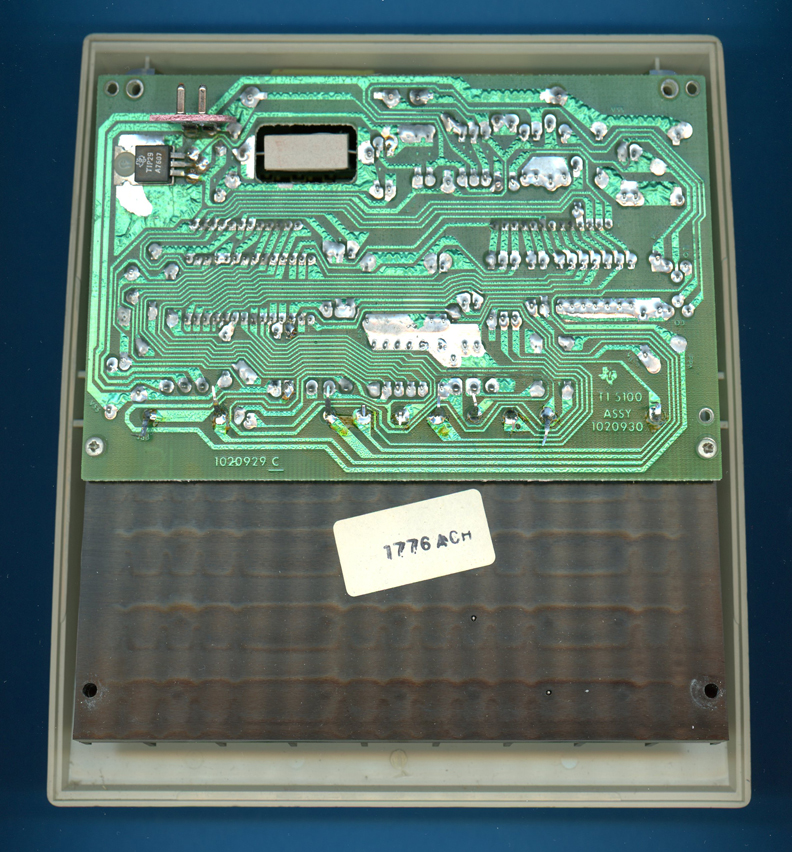

The TI-5100 with the backside of its housing removed.

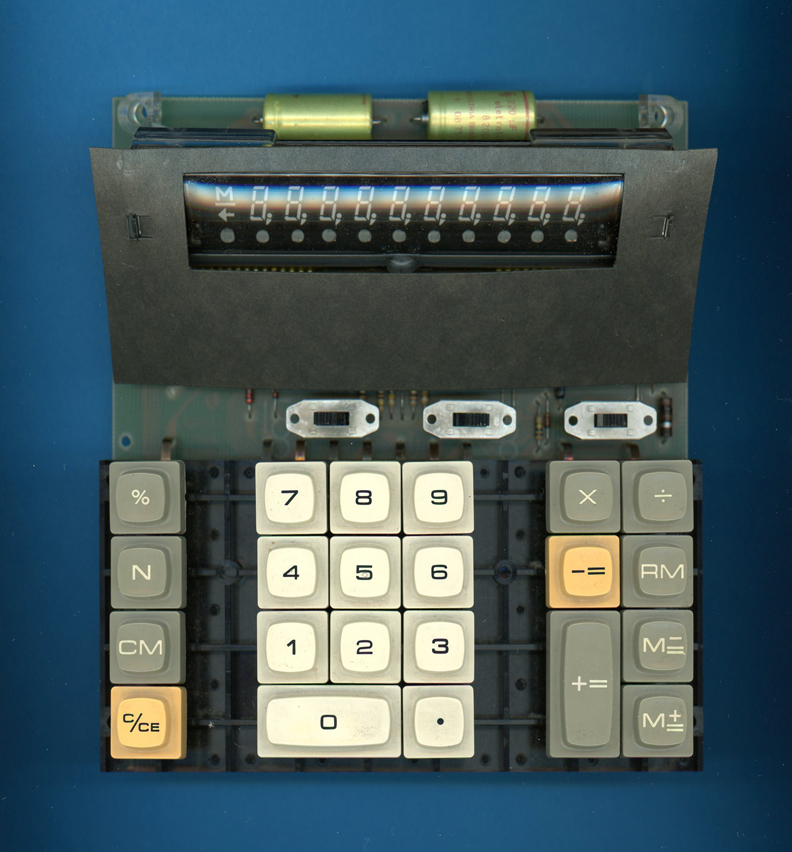

The TI-5100 with its the housing completely removed.

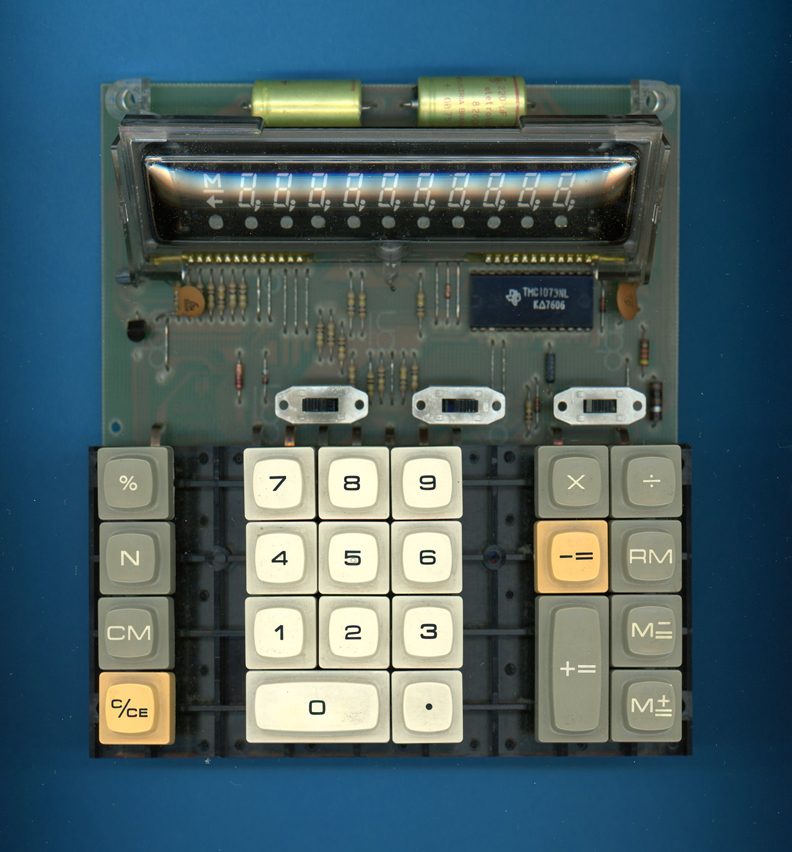

The printed circuit board (PCB) of the TI-5100 is centered around a TMC1073
single-chip calculator circuit of the TMS1070 Family.
