Additional Pictures

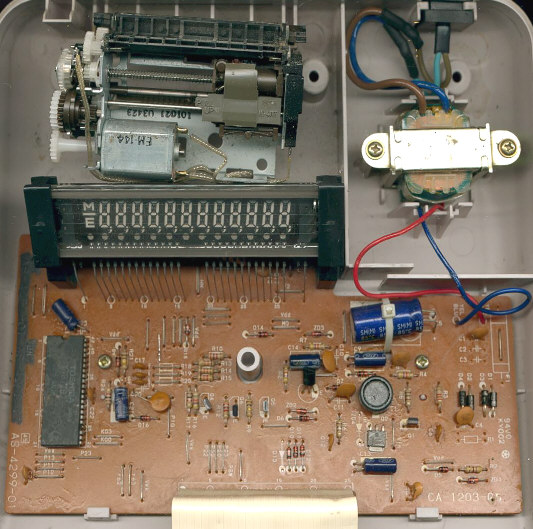

| The printed
circuit board (PCB) of a late TI-5045SV with a
Toshiba TC83220-0027 single-chip calculator
circuit. The calculator was manufactured January, 1996 in China.
|
|

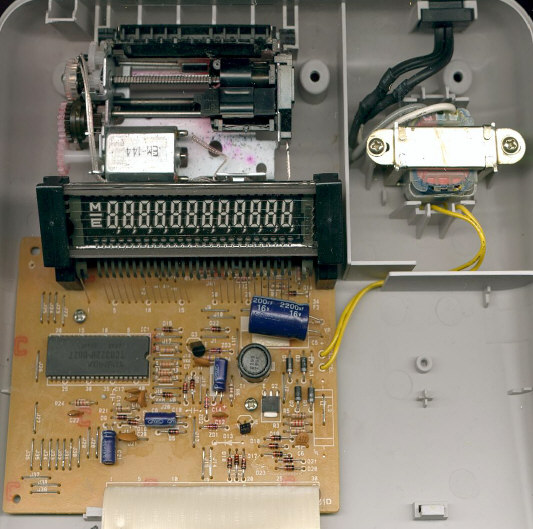

| The printed
circuit board (PCB) of an early TI-5045SV with a
Toshiba T7872B single-chip calculator
circuit.
The calculator was manufactured July, 1993 in China.
|
|
| A TI-5045SV manufactured
for the US market with the UL-Logo revealing usually its genes.
|
A TI-5045SV manufactured
for the German market with the silent GS-Logo.
|
If you have additions to the above article please email: joerg@datamath.org.
© Joerg Woerner, February 28, 2004. No reprints without written permission.
