Additional Pictures
| The internal construction
of the TI-5030 makes use of a Mitsubishi M58349P single-chip calculator circuit, the display, a printer assembly and the batteries.
|
| The internal construction
of the TI-5030 II is more or less identical but
uses a larger display and a different Mitsubishi calculator circuit.
|

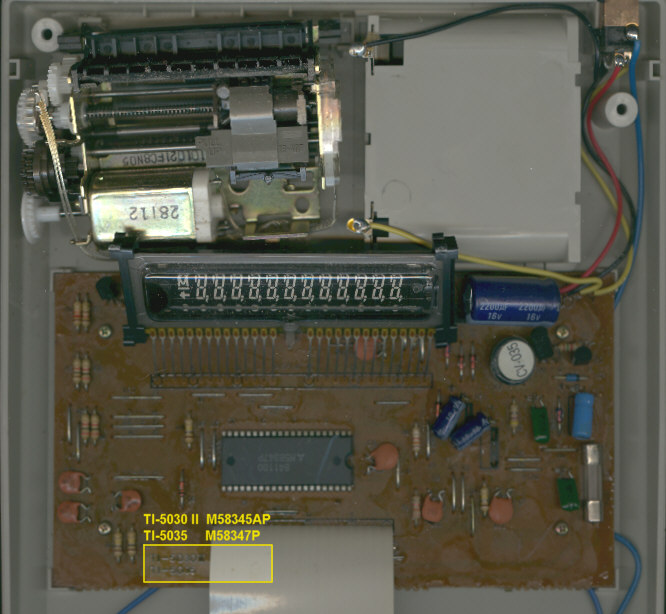

| The printed circuit board
(PCB) of this late TI-5035 gives two options for
the single-chip calculator: TI-5030 II (M58345AP) or TI-5035 (M58347P).
|
