Additional Pictures

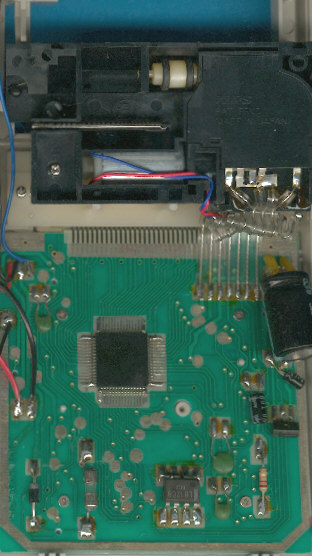

The printed circuit board (PCB) of the TI-5005 II is
based on a single-chip calculator circuit.

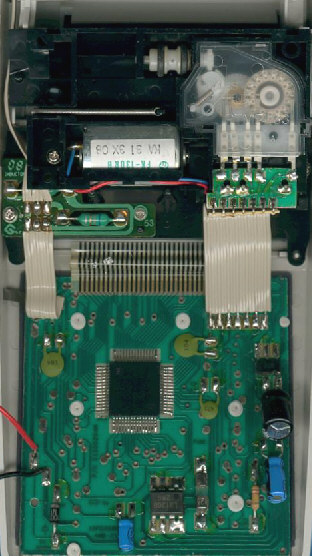

The  TI-5006 introduced 4 years later makes use
of a similiar design but a sports a different printer.

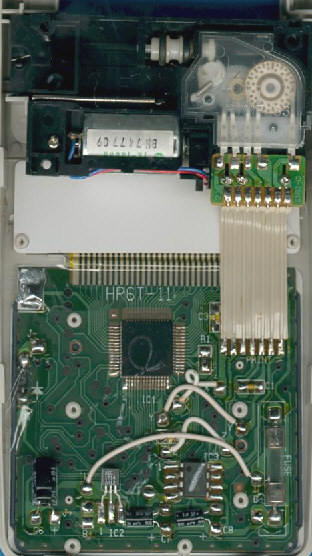

The successor TI-5006 II looks very similiar but
added some flaws insetad reducing labor cost.
