Additional Pictures
This TI-1795SV
was
manufactured in March 2000 by Nam Tai
Electronics in China for the US Market (Date code N-0300A » mth 03 yr 2000). The second unit was manufactured in June 2002 by Nam Tai Electronics in China (N-0602C).
|
|
The TI-1795SV is powered
by 4 solar cells and a small LR54 (LR1130) backup
battery.
|
|

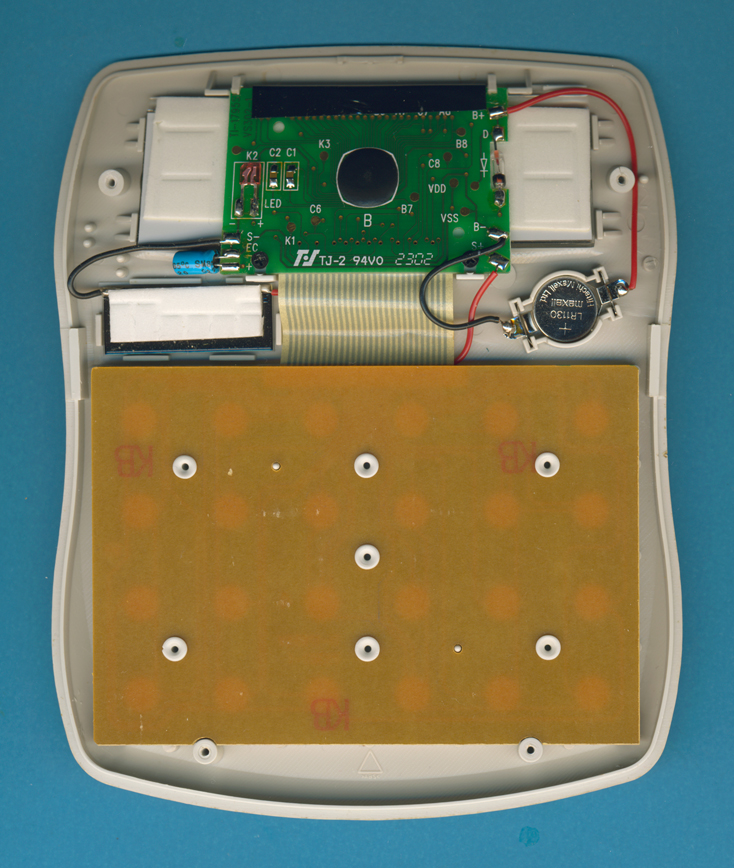

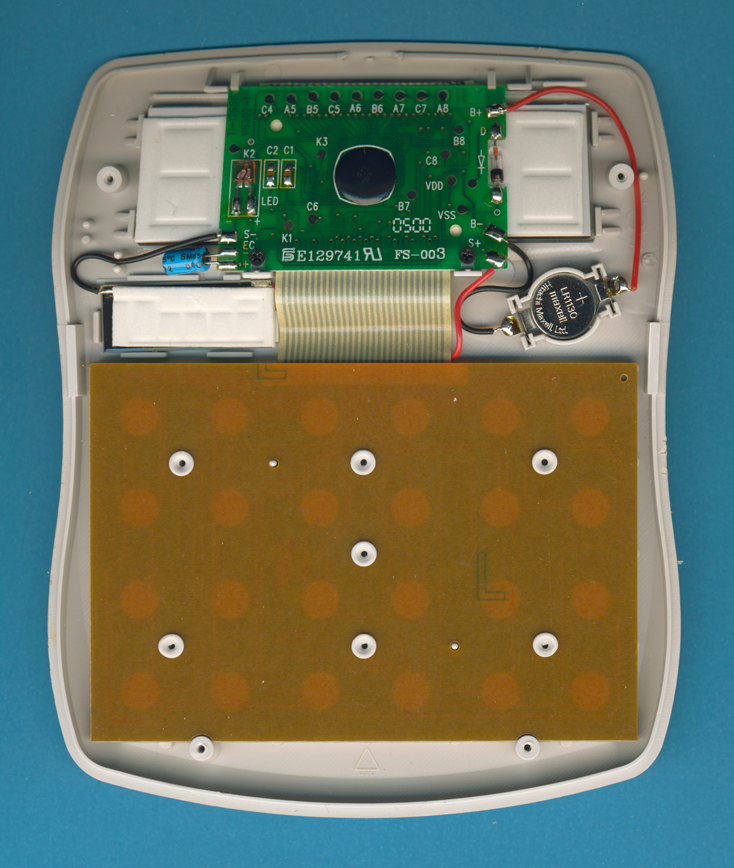

The printed circuit board
(PCB) of the TI-1795SV is centered around an unknown single-chip calculator circuit. |
|

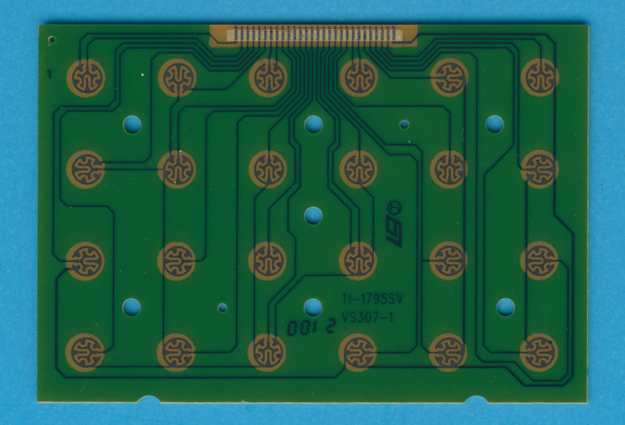

The
keyboard PCB of the TI-1795SV. |
|

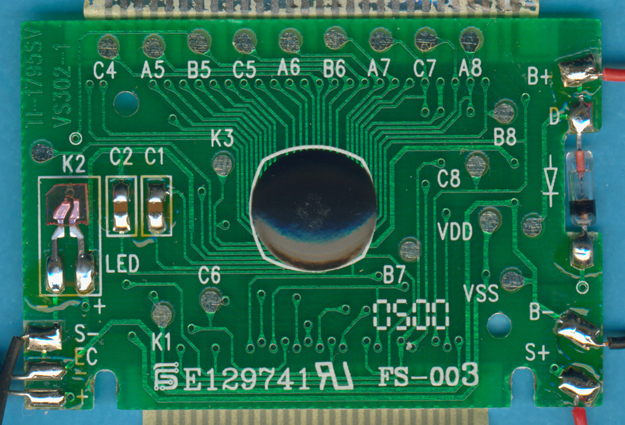

Close-up
view of the unknown single-chip calculator
circuit.
|

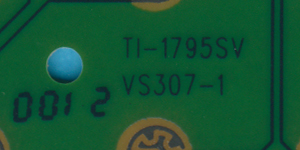

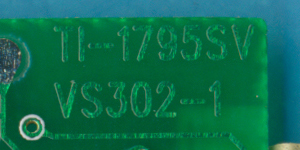

Close-up view of the PCB-Marks
of the TI-1795SV. |
If you have additions to the above article please email: joerg@datamath.org.
